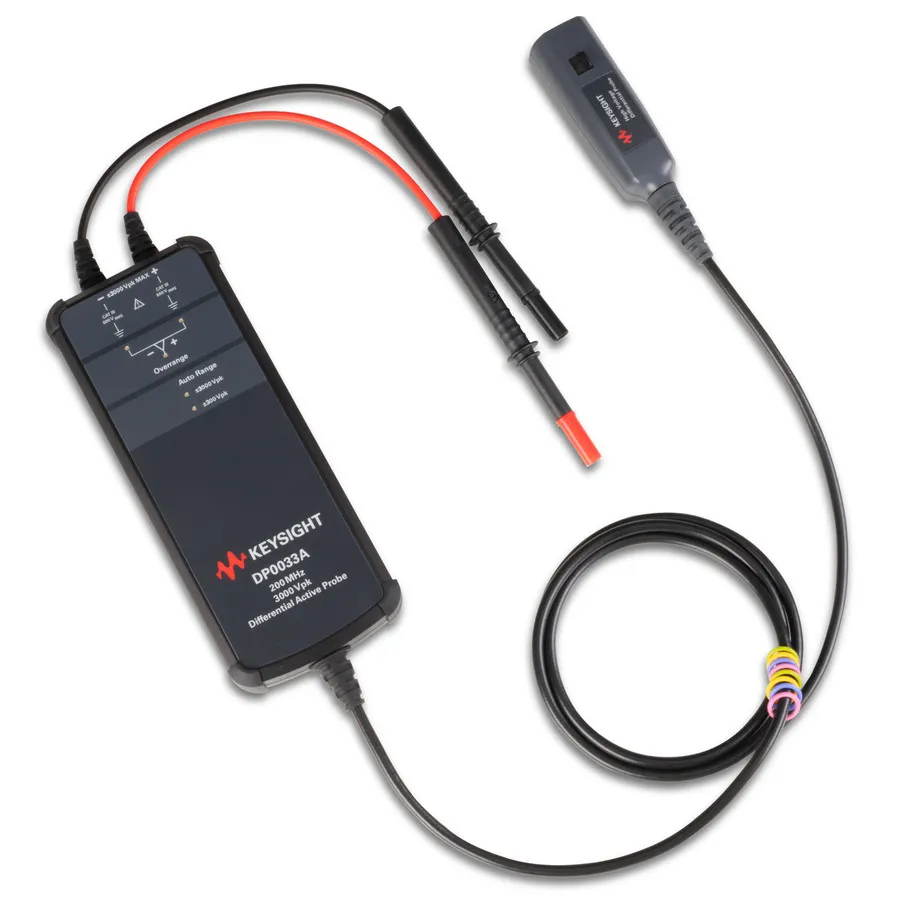

Keysight DP0033A High Voltage Differential Probe
Request a quote
Keysight DP0033A enables 200 MHz differential measurements up to ±3000V with AutoProbe1 interface, engineered for extreme high-voltage power electronics testing.
Product details
| Model | DP0033A |
| Manufacturer | Keysight |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Keysight DP0033A is an ultra-high-voltage differential active probe capable of measurements up to ±3000V with 200 MHz bandwidth. Using the AutoProbe1 interface, it delivers automatic configuration and offset calibration for the most demanding high-voltage testing applications in industrial power systems and advanced power electronics.
Key Features
- 200 MHz bandwidth for high-speed signal capture
- Maximum attenuation: 1000:1 (high) and 100:1 (low) for ultra-high-voltage measurements
- Maximum differential measurement range: ±3000V DC + AC peak
- AutoProbe1 interface with auto-configuration and power delivery
- Ultra-high-voltage measurement capability for extreme testing scenarios
- Compatible with Keysight InfiniiVision and Infiniium oscilloscopes
Applications
- Ultra-high-voltage power supply testing
- Industrial power electronics and inverter characterization
- High-voltage transmission line measurements
- Power distribution system analysis
- Extreme high-voltage transient and surge capture
Specifications
| Bandwidth | 200 MHz |
| Attenuation | 100X |
| Input Capacitance | 2 pF |
| Maximum Input Voltage | 3000 V |
| Input Impedance | 20 MΩ |
| Interface | AutoProbe1 |
| Cable Length | 1.5 m |
| Series | DP003XA Series |
