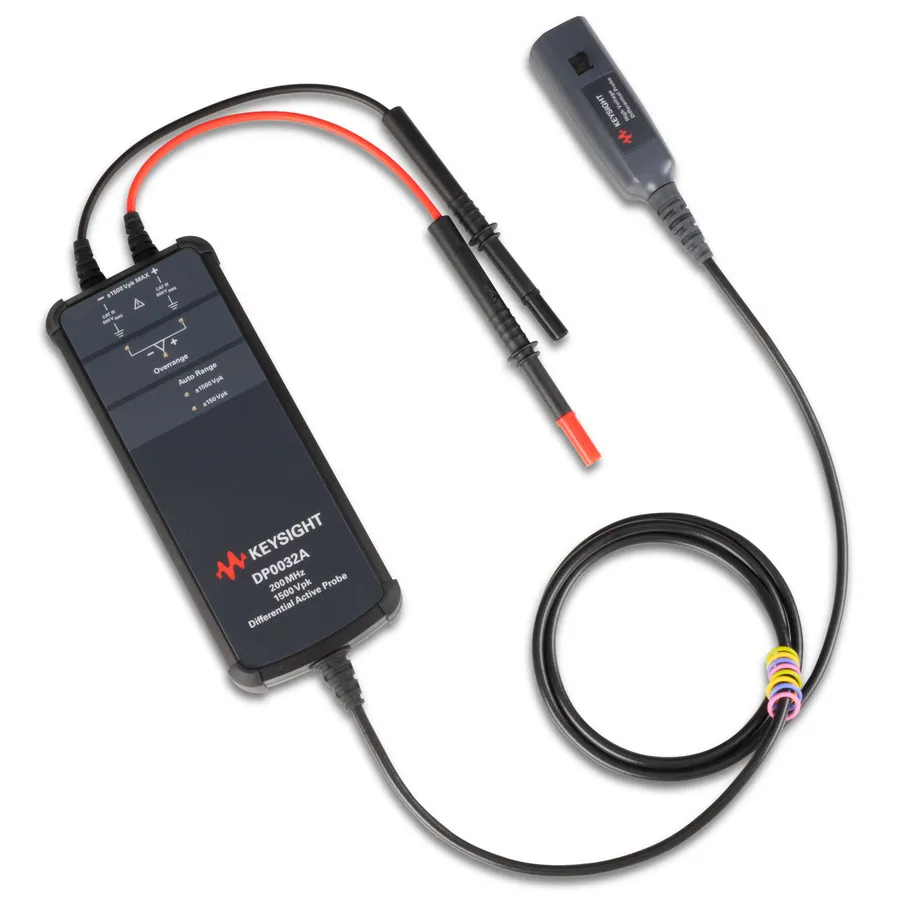

Keysight DP0032A High Voltage Differential Probe
Request a quote
Keysight DP0032A delivers 200 MHz differential measurements up to ±1500V with AutoProbe1 interface, ideal for high-voltage power electronics and automotive testing.
Product details
| Model | DP0032A |
| Manufacturer | Keysight |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Keysight DP0032A is a high-voltage, differential active probe designed for high-voltage measurements up to ±1500V. With 200 MHz bandwidth and AutoProbe1 interface, it provides automatic configuration and offset calibration, making it suitable for demanding power electronics testing and automotive circuit analysis.
Key Features
- 200 MHz bandwidth for high-speed signal capture
- Higher attenuation range: 500:1 (high) and 50:1 (low) for extended voltage measurements
- Maximum differential measurement range: ±1500V DC + AC peak
- AutoProbe1 interface with auto-configuration and power delivery
- Enhanced high-voltage measurement capability
- Compatible with Keysight InfiniiVision and Infiniium oscilloscopes
Applications
- High-voltage power supply testing
- Power electronics and converter characterization
- Automotive high-voltage circuit measurements
- Industrial power system analysis
- High-frequency, high-voltage transient capture
Specifications
| Bandwidth | 200 MHz |
| Attenuation | 50X |
| Input Capacitance | 2 pF |
| Maximum Input Voltage | 1500 V |
| Input Impedance | 10 MΩ |
| Interface | AutoProbe1 |
| Cable Length | 1.5 m |
| Series | DP003XA Series |
