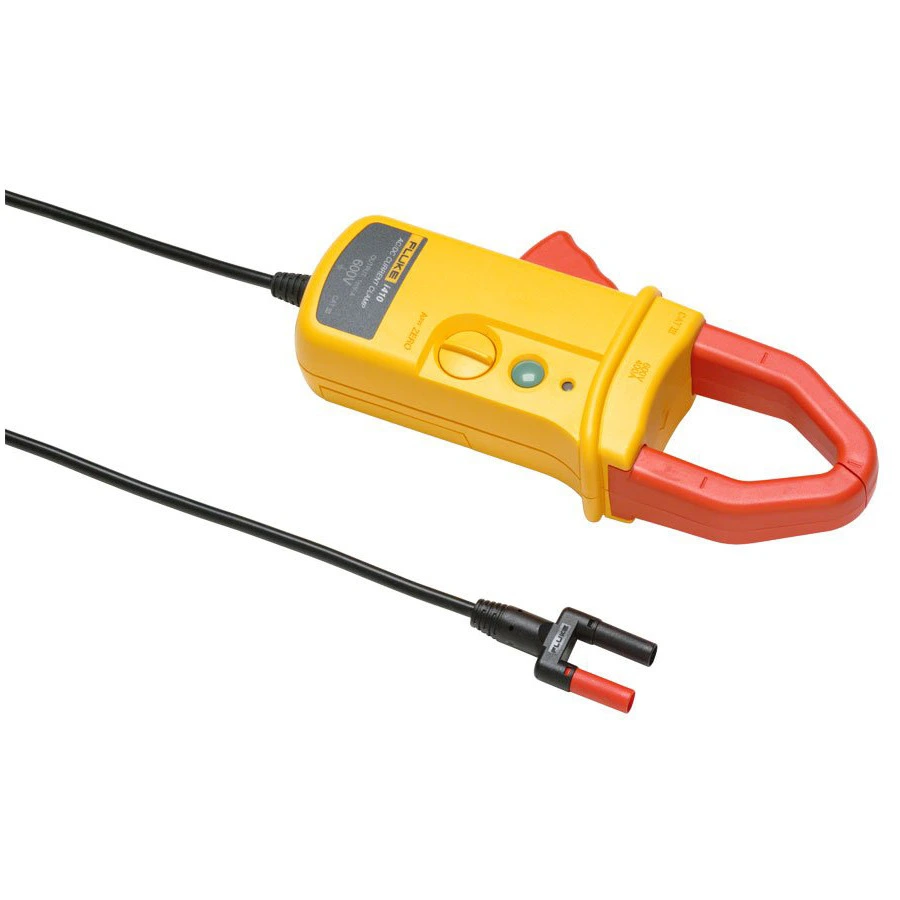

Fluke I410 AC/DC Current Clamp
Request a quote
Fluke I410 — battery-powered Hall-effect AC/DC current clamp measuring 1 to 400 A with ±3.5% accuracy, CAT III 600 V rated, DC to 3 kHz usable frequency.
Product details
| Model | I410 |
| Manufacturer | Fluke |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Fluke I410 AC/DC current clamp is a battery-powered Hall-effect probe that expands the functionality of digital multimeters by enabling direct AC and DC current measurements up to 400 amps. The large clamp jaw provides convenient access to difficult-to-reach conductors.
Key Features
- Measures AC/DC current: 1 A to 400 A
- Hall-effect sensor technology for AC/DC capability
- Output: 1 mV per amp
- Accuracy: ±(3.5% + 0.5 A) at 45 Hz to 400 Hz
- Usable frequency: DC to 3 kHz
- CAT III 600 V safety rating
- Accepts conductors up to 1.18 inches (30 mm) or two 0.98 inches (25 mm)
Applications
- Electrical system troubleshooting and diagnostics
- Power distribution monitoring
- Industrial maintenance and testing
Specifications
| Alternate Product Number | 617727 |
| Clamp Type | AC/DC Clamp |
