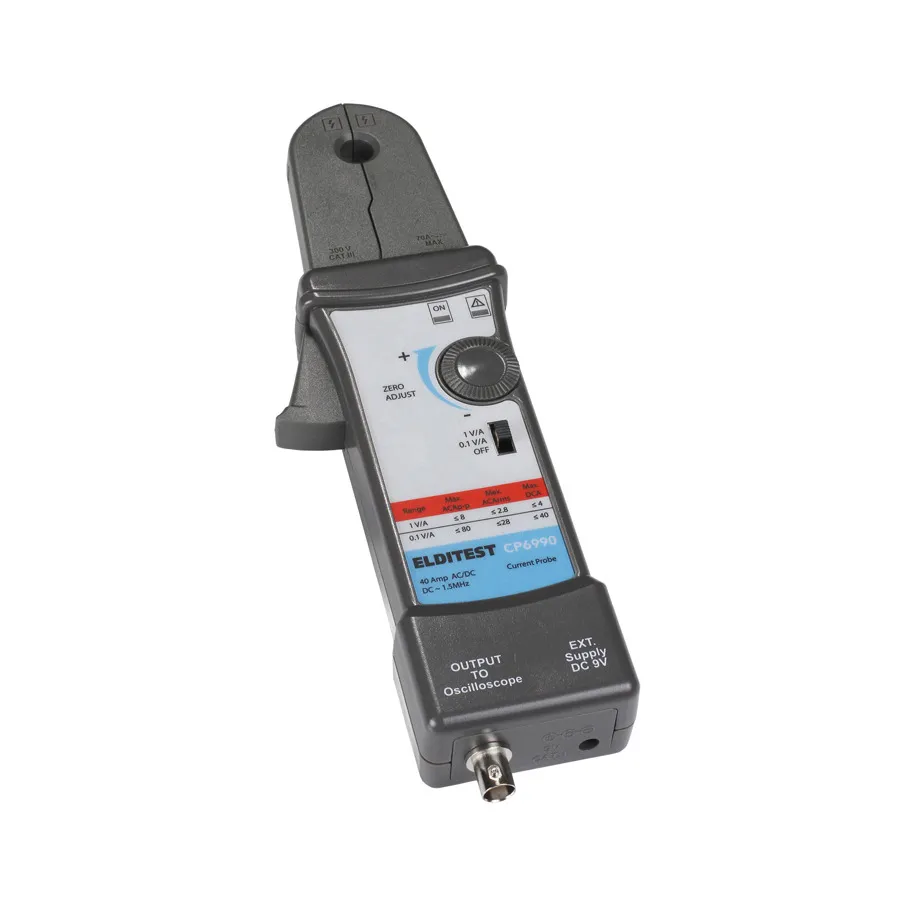

Cal Test Electronics CP6990-NA AC/DC Current Probe
Request a quote
Cal Test Electronics CP6990-NA is a compact AC/DC current oscilloscope probe with dual sensitivity ranges and 1.5 MHz bandwidth for current measurements up to 40 A.
Product details
| Model | CP6990-NA |
| Manufacturer | Cal Test Electronics |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Cal Test Electronics CP6990-NA is an AC/DC current oscilloscope probe designed for compact, portable measurements. It features dual sensitivity ranges to accommodate current measurements from 4 A to 40 A, with a bandwidth of 1.5 MHz and an over-range indicator for user safety. This North American version includes an AC power adapter with NA-style connector.
Key Features
- Dual sensitivity ranges: 1 V/A and 100 mV/A
- 1.5 MHz bandwidth (-3 dB)
- Current measurement ranges: 4 A and 40 A
- Over-range indicator
- Battery or AC power operation (9 V battery not included; NA-style AC adapter included)
Applications
- AC/DC current measurement in electronic circuits
- Oscilloscope probe measurements
- Field troubleshooting and diagnostics
Included Accessories
- Insulated BNC Cable
- BNC to Banana Plugs Adapter
- AC Power Adapter (NA style)
- Instruction Manual
Specifications
| Maximum Current | 4 A |
| Input Coupling | AC/DC |
| Bandwidth | 1.5 MHz |
| Maximum Input Voltage | 600 V |
| Safety Rating | CAT2 |
| Series | CP6000 Series |
| Maximum Wire Size | 10.3 mm |
| Peak Current | 40 A |
