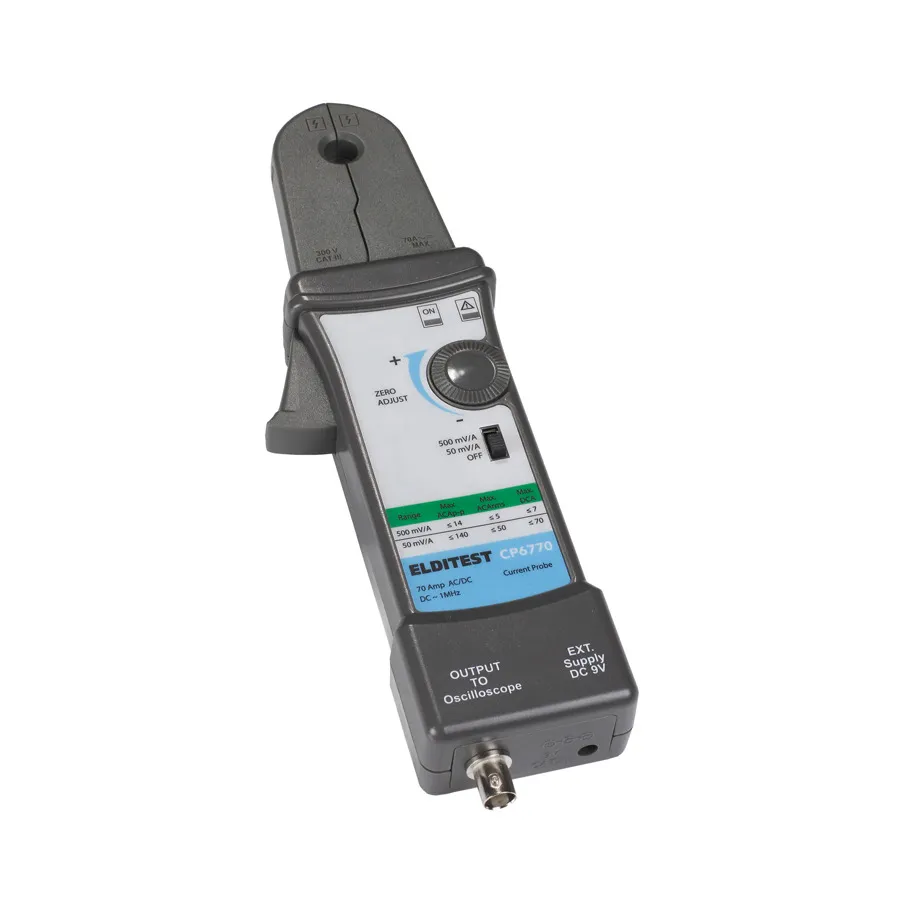

Cal Test Electronics CP6770-EU Current Probe
Request a quote
Cal Test Electronics CP6770-EU is a compact 1MHz AC/DC current probe with dual ranges of 7A and 70A, powered by 9V battery or AC adapter.
Product details
| Model | CP6770-EU |
| Manufacturer | Cal Test Electronics |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Cal Test Electronics CP6770-EU is a compact AC/DC current probe designed for oscilloscope measurements. With 1 MHz bandwidth, it offers dual measurement ranges of 7 A and 70 A using different sensitivity settings (500 mV/A and 50 mV/A). The probe can be powered by a 9V battery (not included) or the included AC power adapter with European connector style.
Key Features
- Compact, stylish design for portable measurements
- 1 MHz bandwidth (-3 dB) for AC/DC current capture
- Dual sensitivity ranges: 500 mV/A (7 A range) and 50 mV/A (70 A range)
- Over-range indicator for measurement protection
- Powered by 9V battery or included AC power adapter
- EU variant with European-style power connector
Applications
- Laboratory current measurements on portable devices
- Field troubleshooting and diagnostics
- Power consumption analysis
- Circuit verification and testing
Included Accessories
- Insulated BNC Cable
- BNC to Banana Plugs Adapter
- AC Power Adapter (European style)
- User Manual
Specifications
| Maximum Current | 7 A |
| Input Coupling | AC/DC |
| Bandwidth | 1 MHz |
| Maximum Input Voltage | 600 V |
| Safety Rating | CAT2 |
| Series | CP6000 Series |
| Maximum Wire Size | 10.3 mm |
| Peak Current | 70 A |
