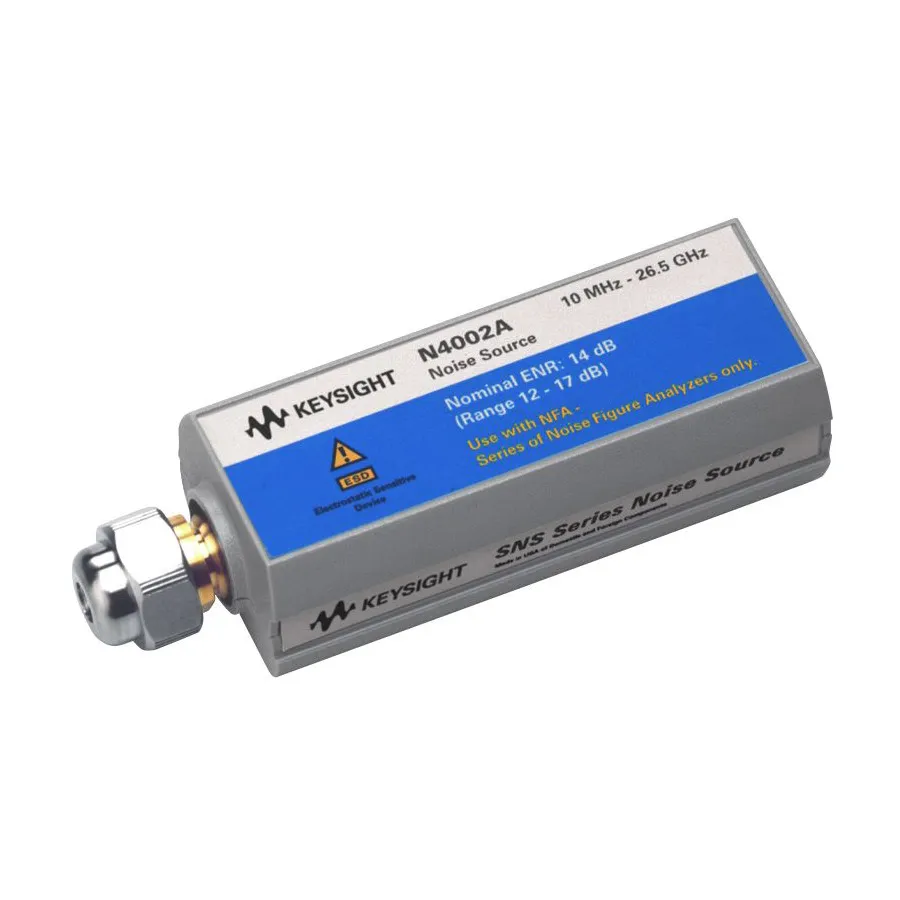

Keysight N4002A/002 SNS Noise Source
Request a quote
Keysight N4002A/002 SNS noise source with 15 dB nominal ENR from 10 MHz to 26.5 GHz includes 5-foot SNS cable for complete noise figure measurement.
Product details
| Model | N4002A/002 |
| Manufacturer | Keysight |
| Category | Noise Sources & Detectors |
| Availability | Made to order |
Description
Overview
The Keysight N4002A/002 is an SNS series noise source configured with a 5-foot (1.5 m) SNS noise source cable as a default option. This configuration delivers 10 MHz to 26.5 GHz frequency coverage with nominal 15 dB ENR, enabling accurate and reliable measurement of DUT noise figures up to 30 dB. Electronic storage of ENR calibration data and automatic download capabilities minimize setup time and user error.
Key Features
- 10 MHz to 26.5 GHz frequency range with 15 dB nominal ENR
- Includes 5-foot (1.5 m) SNS noise source cable
- Electronic storage of ENR calibration data
- Automatic download of ENR data to compatible analyzers
- Temperature compensation for improved measurement accuracy
- Measures DUT noise figures reliably up to 30 dB
Applications
- Noise figure characterization of RF and microwave components
- High-frequency noise measurement and analysis
- Device performance characterization and verification
Specifications
| Series | SNS Series |
