Noise Sources & Detectors

Noise sources and detectors are specialized instruments used in RF and microwave testing to characterize the noise performance of amplifiers, receivers, and other active components. A noise source generates a calibrated wideband noise signal with a known excess noise ratio (ENR), serving as the reference stimulus in noise figure measurements using the Y-factor method. Noise detectors are sensitive receivers designed to detect and measure low-level noise signals, used in radiometry, satellite remote sensing, and signal intelligence applications.

Accurate noise figure measurement is fundamental to the design and verification of RF front ends in satellite receivers, radar systems, base station amplifiers, and scientific instruments such as radio telescopes. Even a fraction of a dB difference in noise figure can significantly affect system sensitivity and link margin, making calibrated noise sources an essential tool in any serious RF test laboratory.

Typical Applications

Noise figure measurement of LNAs, mixers, and receiver front ends using the Y-factor method
Calibration of noise figure analyzers and spectrum analyzers with noise figure options
Radiometric measurements in radio astronomy and satellite remote sensing
Wideband stimulus generation for receiver sensitivity and spurious response testing
Radar and SIGINT receiver characterization in defense laboratories

Popular Brands

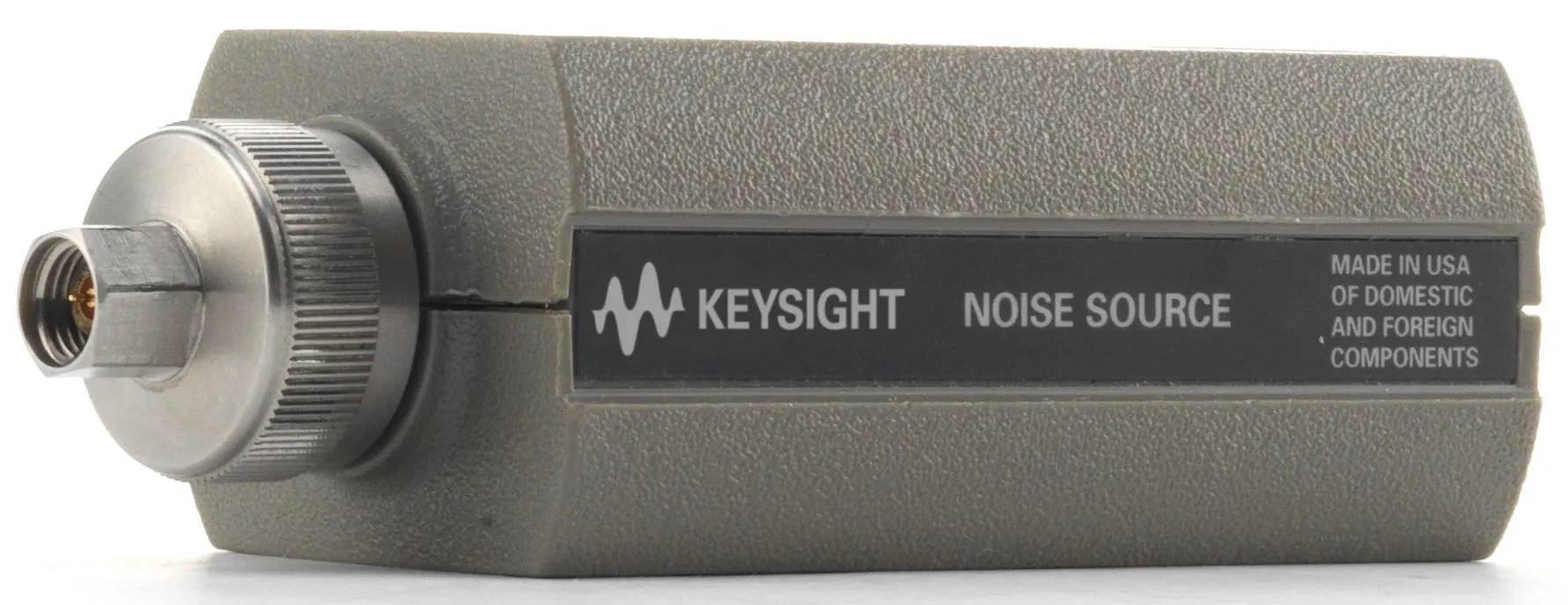

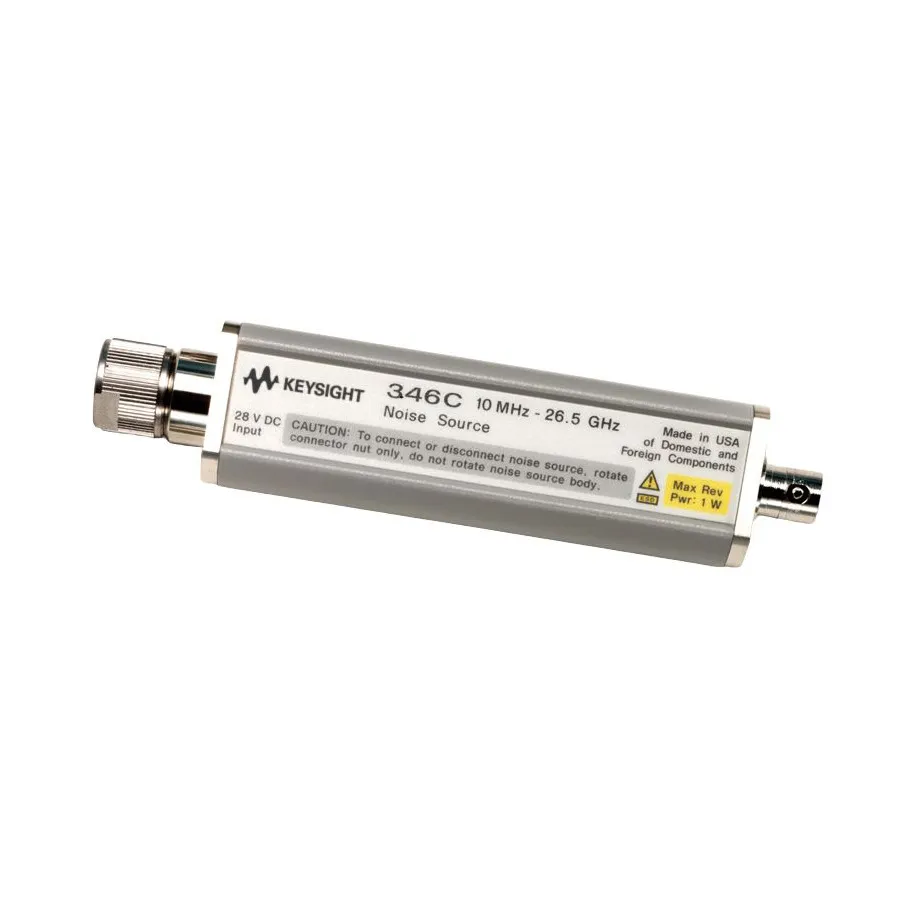

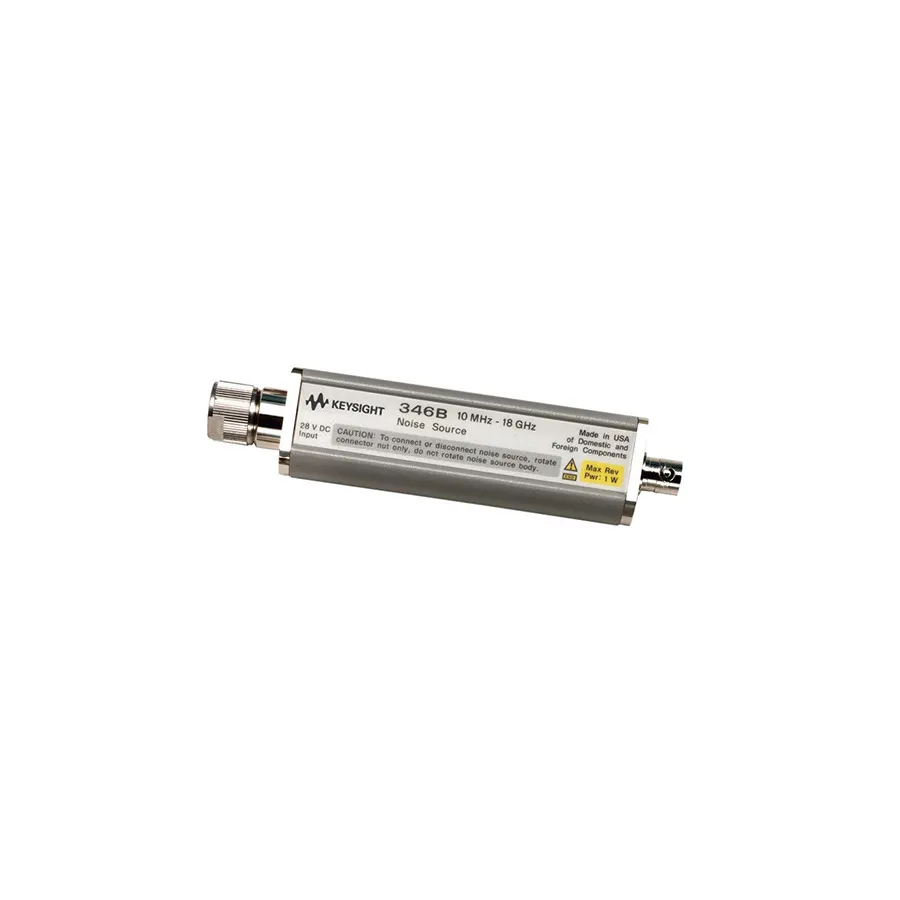

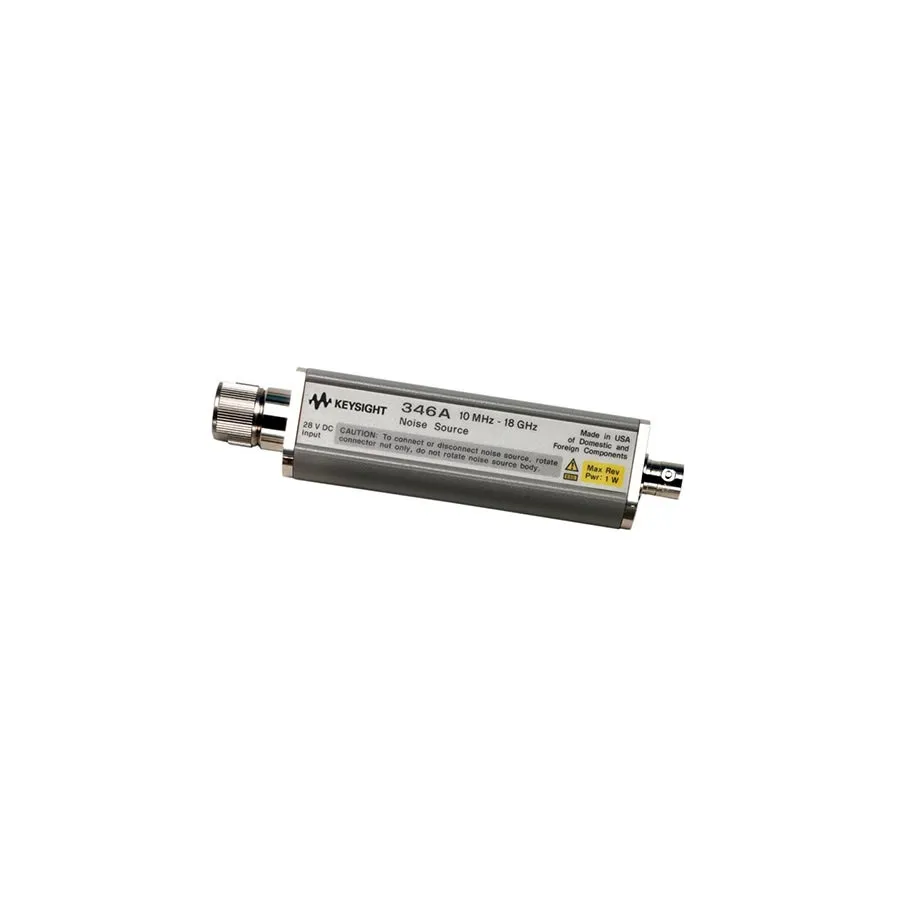

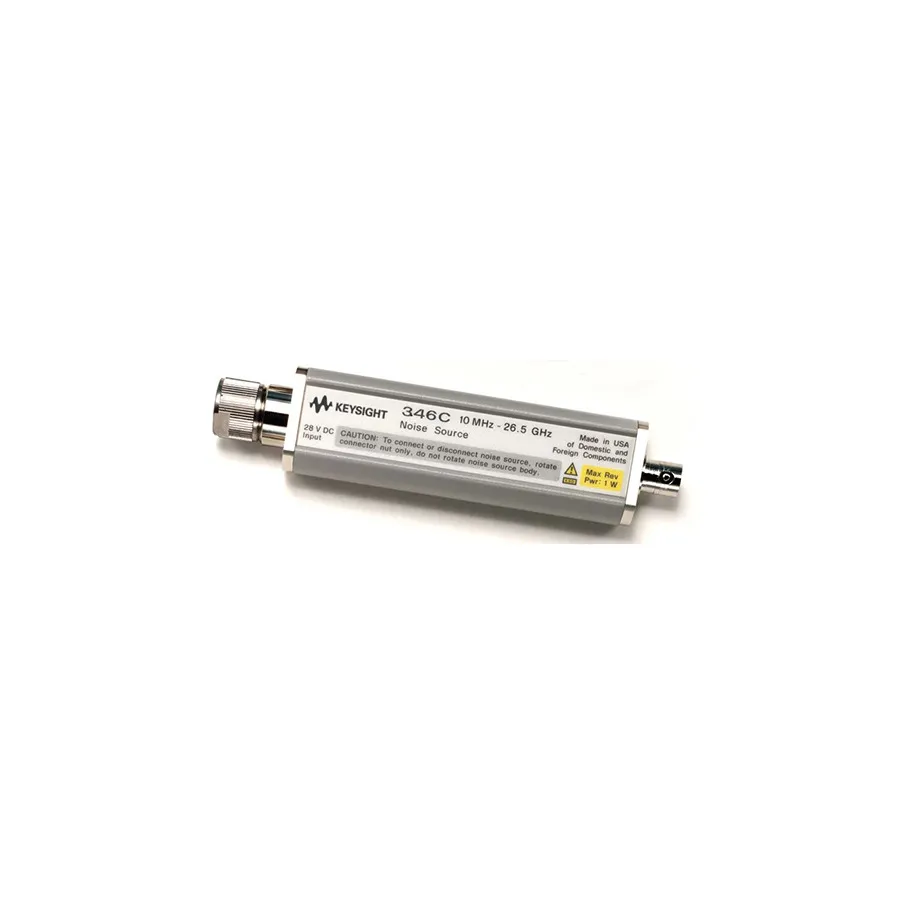

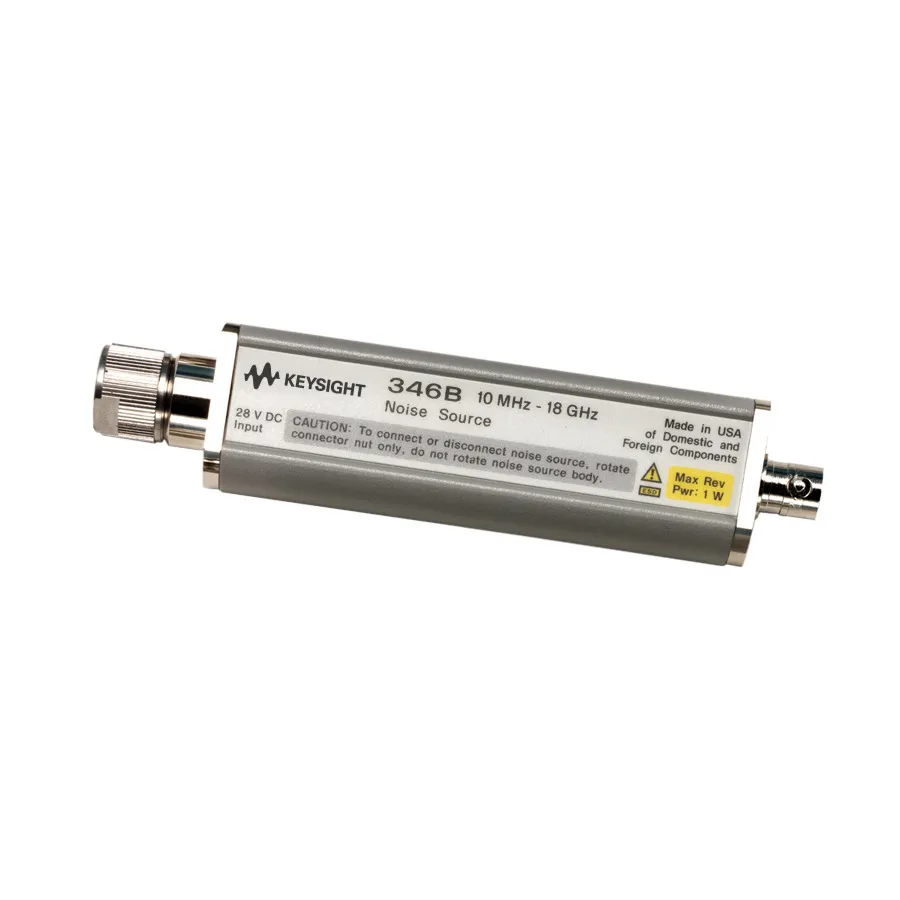

Keysight Technologies produces the 346 series noise sources, widely used with Keysight noise figure analyzers across frequencies from 10 MHz to 26.5 GHz. Noisecom, part of Wireless Telecom Group, specializes in precision noise sources for both standard and custom ENR requirements. Rohde & Schwarz offers integrated noise figure measurement solutions including matched noise sources for fully calibrated test setups.
