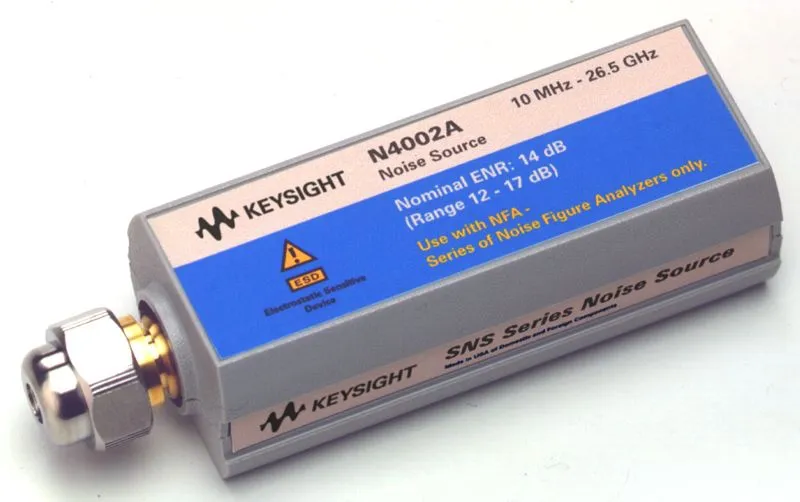

Keysight N4002A SNS Noise Source
Request a quote
Keysight N4002A SNS noise source operates from 10 MHz to 26.5 GHz with 12-17 dB ENR, measuring DUT noise figures up to 30 dB with automatic ENR data download.
Product details
| Model | N4002A |
| Manufacturer | Keysight |
| Category | Noise Sources & Detectors |
| Availability | Made to order |
Description
Overview
The Keysight N4002A is an SNS series noise source designed to measure DUT noise figures reliably and accurately up to 30 dB from 10 MHz to 26.5 GHz. The unit employs electronic storage of Excess Noise Ratio (ENR) calibration data and automatic download capabilities to reduce measurement setup time and user error. With temperature compensation and standard APC 3.5 connector, the N4002A provides the flexibility needed for high-frequency noise figure characterization.
Key Features
- Frequency range from 10 MHz to 26.5 GHz with 12-17 dB ENR
- Electronic storage of ENR calibration data reduces setup errors
- Automatic download of ENR data to compatible analyzers
- Temperature compensation for improved measurement accuracy
- Reliable measurement of DUT noise figures up to 30 dB
- APC 3.5(m) connector standard; optional Type-N connector (Option 001)
- Compatible with NFA, ESA-E Series, and X-Series analyzers
Applications
- Noise figure characterization of RF and microwave amplifiers
- High-frequency noise measurement and device characterization
- Noise figure specification and performance verification
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Series | SNS Series |
