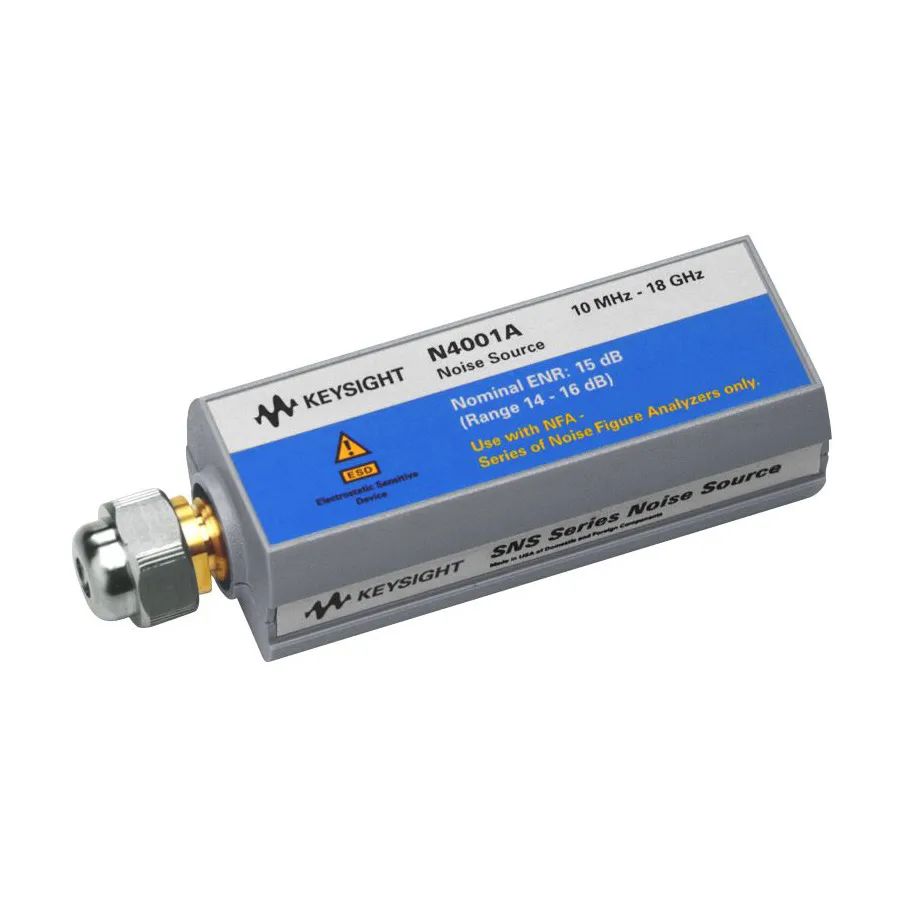

Keysight N4001A/100 SNS Noise Source
Request a quote
Keysight N4001A SNS noise source with 15 dB nominal ENR from 10 MHz to 18 GHz, designed for accurate noise figure measurements of devices up to 30 dB.
Product details
| Model | N4001A/100 |
| Manufacturer | Keysight |
| Category | Noise Sources & Detectors |
| Availability | Made to order |
Description
Overview
The Keysight N4001A SNS series noise source is designed for general-purpose noise figure measurements. It provides a nominal ENR of 15 dB across the 10 MHz to 18 GHz frequency range, enabling accurate and reliable measurement of devices with noise figures up to 30 dB. The unit features a low reflection coefficient and is equipped with an APC 3.5(m) connector as standard.
Key Features
- Nominal ENR of 15 dB from 10 MHz to 18 GHz
- Measures DUT noise figures up to 30 dB accurately and reliably
- Low reflection coefficient for general-purpose use
- Electronic storage of ENR calibration data to reduce user error
- Automatic ENR data download to compatible analyzers
- Temperature compensation for improved accuracy
- APC 3.5(m) connector standard
Applications
- Noise figure characterization of RF amplifiers and components
- General-purpose noise figure measurements up to 18 GHz
- Device performance specification and verification
Specifications
| Series | SNS Series |
