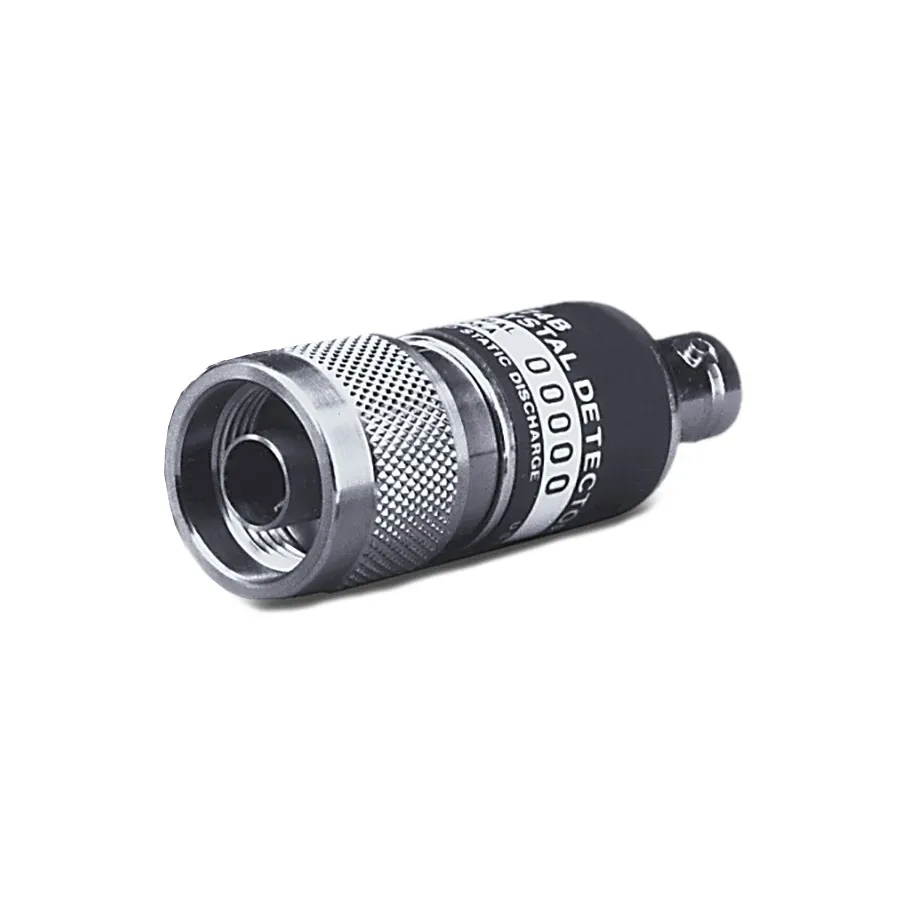

Keysight 8474B/001/301 Planar-Doped Barrier Diode Detector
Request a quote
Keysight 8474B/001/301 is a planar-doped barrier diode detector covering 0.01 to 18 GHz with ±0.35 dB frequency response.
Product details
| Model | 8474B/001/301 |
| Manufacturer | Keysight |
| Category | Noise Sources & Detectors |
| Availability | Made to order |
Description
Overview
The Keysight 8474B/001/301 is a high-performance planar-doped barrier diode detector featuring a gallium arsenide detecting element. It provides extremely flat frequency response over its operating band and excellent temperature stability. The detector is rugged with high resistance to ESD damage and is suitable for precision RF and microwave measurements.
Key Features
- Frequency Range: 0.01 to 18 GHz
- Frequency Response: ±0.35 dB
- Maximum SWR: 1.3
- Low Level Sensitivity: >0.4 mV/µW
- Maximum Operating Input Power: 200 mW
- Typical Short-term Maximum Input Power (<1 minute): 1 W
- Output Polarity: Negative
- Input Connector: Type-N male
- Output Connector: BNC female
Applications
- RF power measurement
- Microwave detector element
- Test equipment instrumentation
