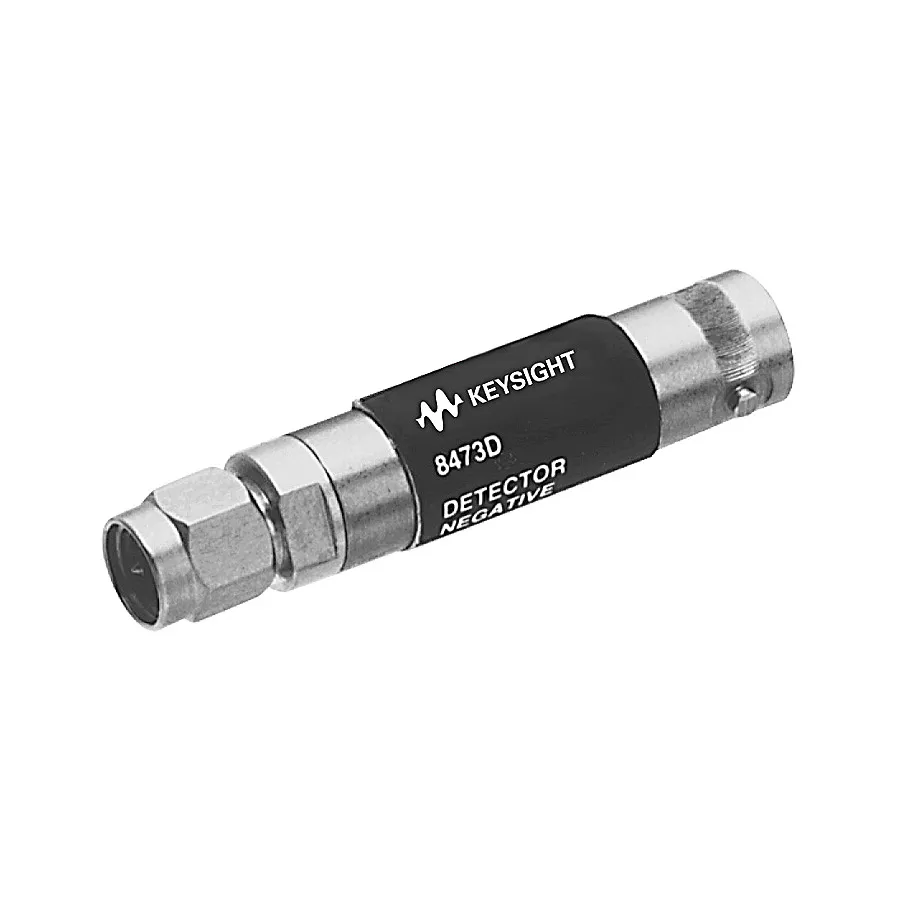

Keysight 8473D/301 Planar-Doped Barrier Diode Detector
Request a quote
Keysight 8473D/301 is a high-performance planar-doped barrier diode detector for RF and microwave applications, covering 0.01 to 33 GHz with ±0.25 dB frequency response.
Product details
| Model | 8473D/301 |
| Manufacturer | Keysight |
| Category | Noise Sources & Detectors |
| Availability | Made to order |
Description
Overview
The Keysight 8473D/301 is a high-performance planar-doped barrier diode detector designed for RF and microwave measurements. It features an extremely flat frequency response over its entire operating band and excellent frequency response stability versus temperature, making it suitable for precision measurement applications.
Key Features
- Frequency Range: 0.01 to 33 GHz
- Frequency Response: ±0.25 dB to 14 GHz, ±0.4 dB to 26.5 GHz, ±1.25 dB to 33 GHz
- Maximum SWR: 1.2 to 14 GHz, 1.4 to 26.5 GHz, 3.0 to 33 GHz
- Low Level Sensitivity: >0.5 mV/µW
- Maximum Operating Input Power: 200 mW
- Typical Short-term Maximum Input Power (<1 minute): 1 W
- Output Polarity: Negative
- Input Connector: 3.5 mm male
- Rugged design with high resistance to ESD damage
Applications
- RF and microwave power measurement
- Detector element for test equipment
- High-frequency signal detection
