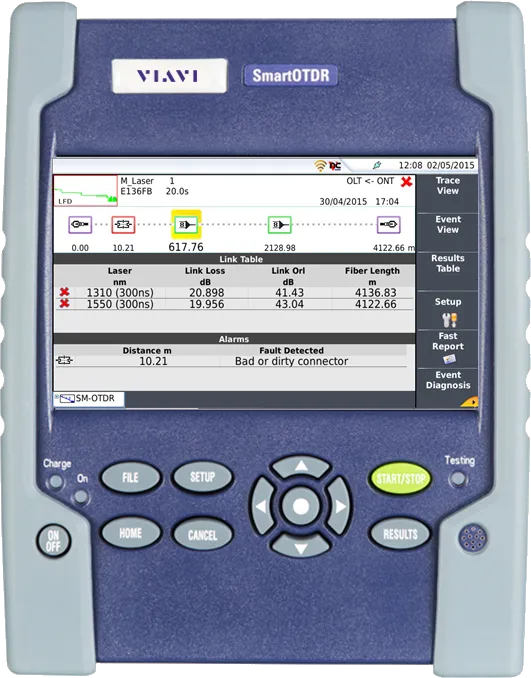

Viavi SmartOTDR Handheld Fiber Tester
Request a quote
Viavi SmartOTDR offers affordable, easy-to-use fiber testing with OTDR, optical loss measurement, visual fault locator, and wireless connectivity.
Product details
| Model | SMARTOTDR118FA-P0A |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi SmartOTDR is an essential handheld fiber tester designed for technicians at any skill level. It integrates all essential fiber test requirements—OTDR measurement, fiber end face analysis, optical loss testing, and visual fault locator—into a single compact device. The lightweight design with 5" high-visibility outdoor touch screen optimizes field testing of metro and access networks with an intuitive interface and automatic analysis.
Key Features
- Single-, dual-, and tri-wavelength versions with 1310/1550 nm and optional 1625 or 1650 nm wavelengths
- Light, compact, hands-free design with 5" high-visibility outdoor touch screen
- Integrated continuous-wave (CW) light source
- PON optimized to test through 1x128 splitter ratio with Smart Link Mapper (SLM)
- Built-in broadband and dual-band selective power meter (1490/1550/1577 nm)
- Automated fiber inspection and macrobend detection with pass/fail analysis software
- 3G/4G connectivity via USB, Bluetooth, and WiFi options
- All-day battery life
- 3-year warranty
Applications
- Metro and access network field testing
- Passive Optical Network (PON) testing and maintenance
- Fiber-to-the-Home (FTTH) installation and commissioning
- Fiber end-face inspection and qualification
- Optical loss and continuity testing
Specifications
| Model / Part Number | Description |
