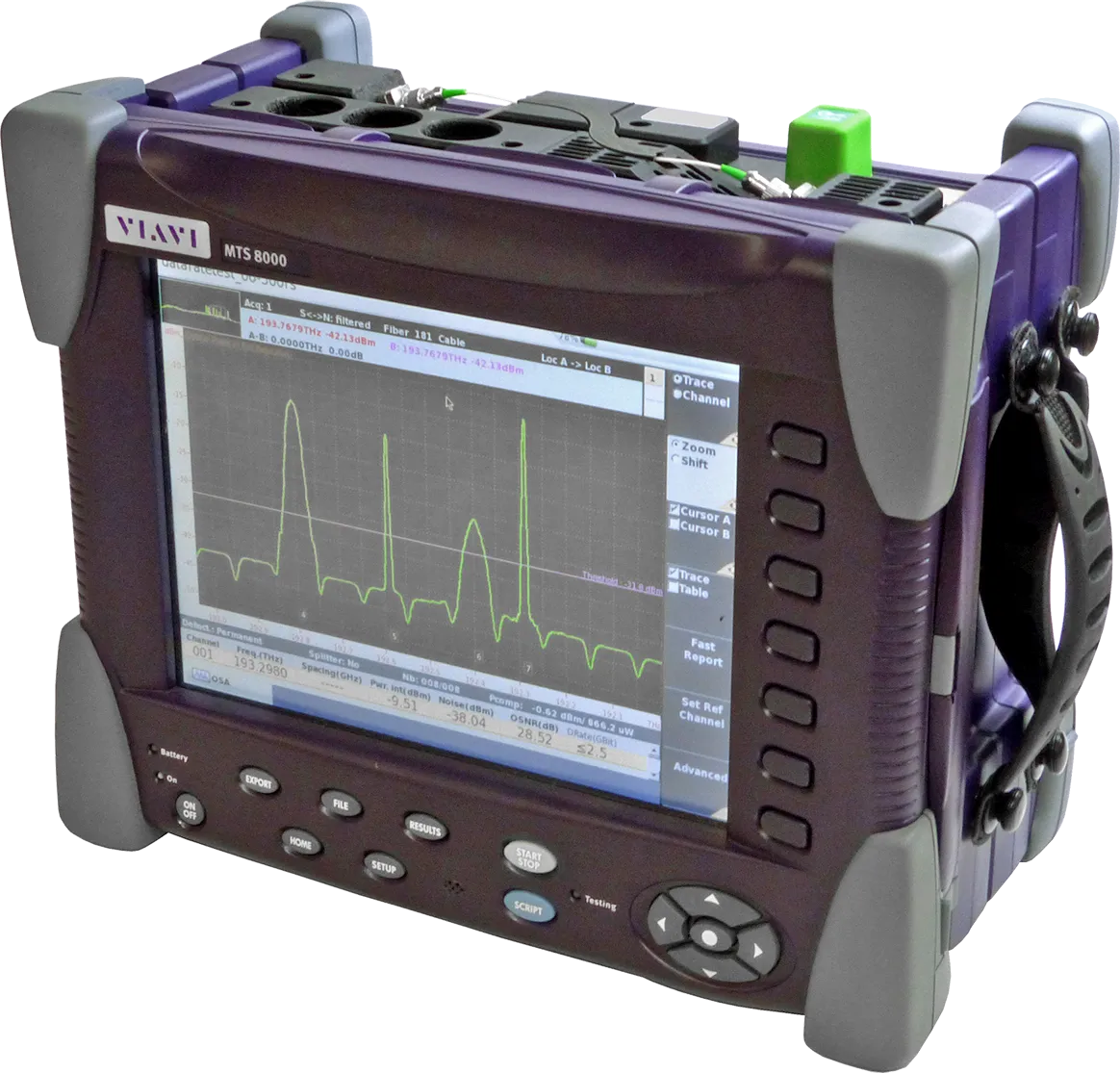

Viavi OSCA-710 Optical Spectrum and Correlation Analyzer Kit
Viavi OSCA-710 Kit — coherent analyzer for in-band OSNR measurement in ROADM-based DWDM networks with polarization-multiplexed signals up to 400G, including UTM-710 utility module.
Product details
| Model | OSCA-710 (2323/93.12) |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi OSCA-710 Kit is a complete test solution for next-generation DWDM networks, bundling the OSCA-710 coherent analyzer with the UTM-710 utility module and TB/MTS-8000 test bed platform. The analyzer is designed for polarization-multiplexed transmission formats and uses a proprietary spectral correlation measurement (SCorM) technique combined with an ultra-high resolution coherent receiver for complete signal characterization in amplitude, frequency, phase, and polarization. It is the first analyzer capable of measuring true in-band OSNR on polarization-multiplexed signals in ROADM-based networks without requiring channel shutdown.
Key Features
- Spectral Correlation Measurement (SCorM) technique for accurate in-band OSNR measurement
- Supports PM-BPSK, PM-QPSK, and PM-xQAM modulation formats used in 40G, 100G, 200G, and 400G systems
- Coherent receiver design with ultra-high resolution bandwidth for Nyquist and super-channel testing
- In-service per-channel chromatic dispersion (CD) measurement capability
- Tolerant of high chromatic dispersion (CD) and polarization mode dispersion (PMD)
- WDM-Expert software for automatic signal type identification in mixed-traffic networks
- UTM-710 utility module with optical pre-amplifier and pre-filter for systems with >8 channels or channel power <-20 dBm
- Integration with TB/MTS-8000 test bed platform for automated testing workflows
- Multiple analysis modes: in-band OSNR, WDM, drift monitoring, DFB, and CD measurement
Applications
- Installation, commissioning, and maintenance testing in core and metro DWDM networks
- Testing of undersea communication and submarine cable links
- Qualification of fiber optic links utilizing coherent detection technology
- Service activation and optical launch power optimization for submarine networks
- In-service OSNR validation and network performance monitoring
- Automated characterization and diagnostics of 40G, 100G, 200G, and 400G traffic
- Multi-channel DWDM system testing with integrated optical amplification
Specifications
| UTM-710: Utility Module | Required for systems with >8 channels and/or channel power <-20dBm. Includes optical pre-amplifier and optical pre-filter |
| Part Number | Description |
| 2323/93.12 | OSCA-710 Kit (incl. OSCA-710 + UTM-710 + TB/MTS-8000 MF) |
