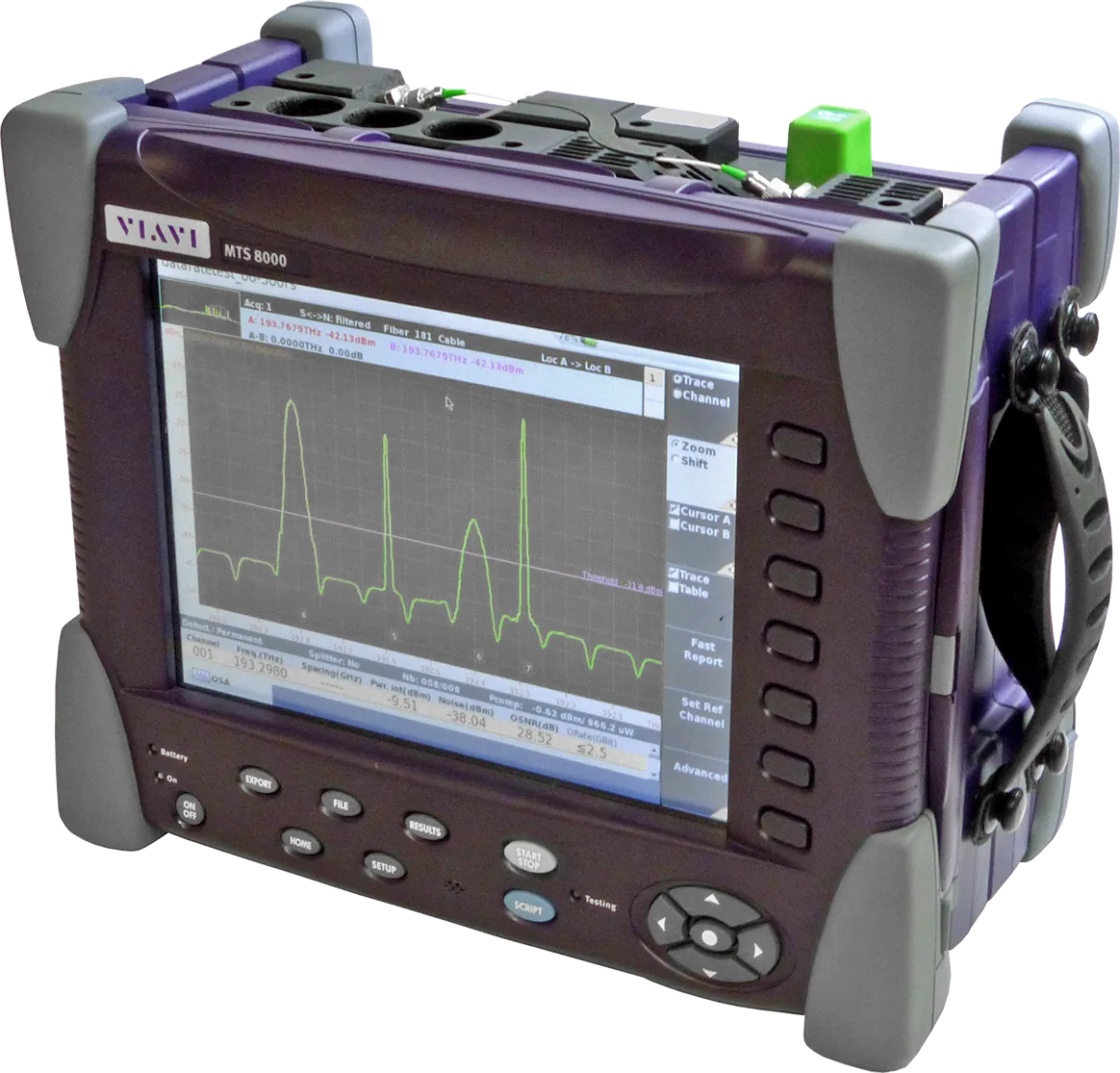

Viavi OSCA-710 Optical Spectrum and Correlation Analyzer

Overview

The Viavi OSCA-710 is a coherent optical spectrum and correlation analyzer designed for next-generation DWDM networks using high-speed polarization-multiplexed transmission formats. Using a proprietary spectral correlation measurement (SCorM) technique combined with an ultra-high resolution coherent receiver, the OSCA-710 performs complete signal characterization in amplitude, frequency, phase, and polarization without requiring channel shutdown. It is the first analyzer capable of measuring true in-band OSNR on polarization-multiplexed signals in ROADM-based networks.

Key Features

• Spectral Correlation Measurement (SCorM) technique for accurate in-band OSNR measurement
• Supports PM-BPSK, PM-QPSK, and PM-xQAM modulation formats used in 40G, 100G, 200G, and 400G systems
• Coherent receiver design with ultra-high resolution bandwidth for Nyquist and super-channel testing
• In-service per-channel chromatic dispersion (CD) measurement capability
• Tolerant of high chromatic dispersion (CD) and polarization mode dispersion (PMD)
• WDM-Expert software for automatic signal type identification in mixed-traffic networks
• Multiple analysis modes: in-band OSNR, WDM, drift monitoring, DFB, and CD measurement

Applications

• Installation, commissioning, and maintenance testing in core and metro DWDM networks
• Testing of undersea communication and submarine cable links
• Qualification of fiber optic links utilizing coherent detection technology
• Service activation and optical launch power optimization for submarine networks
• In-service OSNR validation and network performance monitoring
• Characterization and diagnostics of 40G, 100G, 200G, and 400G traffic without network shutdown
