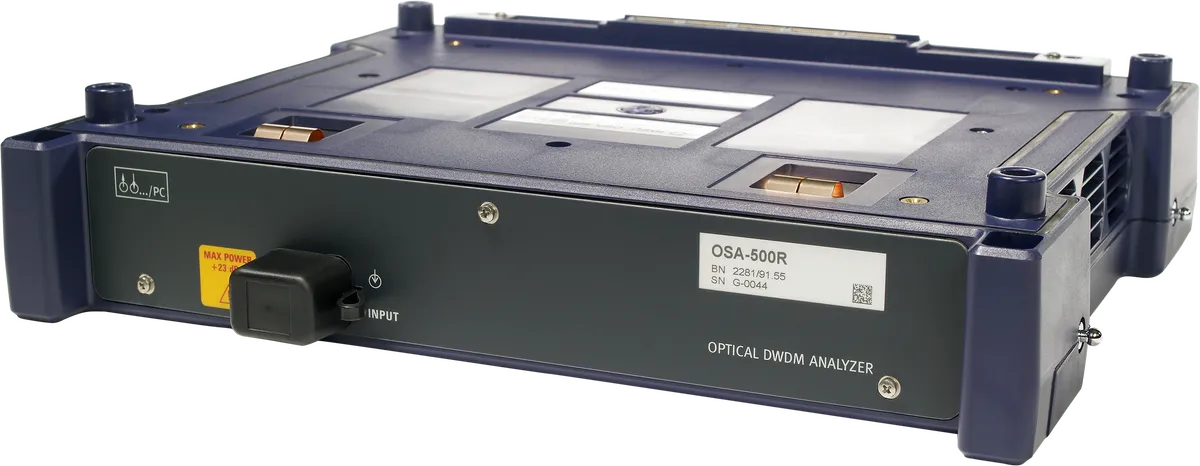

Viavi OSA-500 Optical Spectrum Analyzer
Request a quote
Viavi OSA-500 is a high dynamic range optical spectrum analyzer for CWDM and DWDM systems up to 100 Gbps with in-band OSNR measurement.
Product details
| Model | OSA-500 (2281/91.51) |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi OSA-500 is a full-band optical spectrum analyzer tailored for spectral measurements in CWDM systems in access networks and DWDM systems in high-speed backbone networks with data rates up to 100 Gbps. It features Viavi's Optical Polarization Splitting (OPS) method for measuring true in-band OSNR in ROADM-based networks, making it ideal for troubleshooting and signal analysis in complex optical systems.
Key Features
- Optical Polarization Splitting method (OPS) for true in-band OSNR measurement in ROADM networks
- Wide tuning range 1250 to 1650 nm suitable for all DWDM and CWDM networks up to 100 Gbps
- Channel drop option for isolating single channels for in-depth signal analysis
- Software option for PMD testing based on fixed analyzer method
- Built-in optical component test applications for laser diodes, LEDs, and optical amplifiers
- Internal online wavelength calibration requiring no recalibration
Applications
- Measurement of true in-band OSNR in Agile Optical networks including ROADM testing and dispersion compensating modules
- DWDM and CWDM system testing during installation, maintenance, and network upgrade
- Automated DWDM passive and active component testing
- System verification testing according to preset limits
- Verification of ROADM configurations in Agile Optical Networks
Specifications
| Form Factor | Modular |
