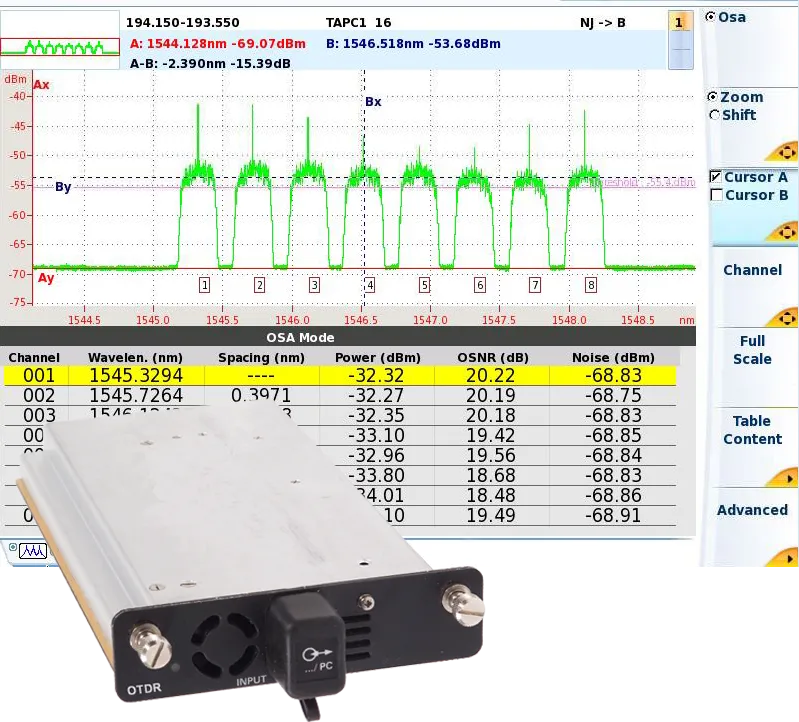

Viavi OSA-110R Optical Spectrum Analyzer
Request a quote
Compact optical spectrum analyzer with in-band OSNR measurement for ROADM networks, full-band 1250-1650 nm range, and ±0.05 nm wavelength accuracy.
Product details
| Model | OSA-110R (2304/91.04) |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi OSA-110R is a compact optical spectrum analyzer with in-band OSNR measurement capability for field use in telecommunications networks. Part of the next-generation OSA-110 series, the OSA-110R combines high optical resolution with full-band measurement capability, making it ideal for testing power, wavelength, OSNR, and drift during provisioning, maintenance, and upgrades of WDM systems, particularly in ROADM-based networks.
Key Features
- In-band OSNR measurement for accurate signal-to-noise ratio testing in ROADM and 40 G systems
- Full-band measurement range from 1250 to 1650 nm
- Built-in wavelength calibration with ±0.05 nm wavelength accuracy
- High optical resolution combined with full-band capability
- Compact and lightweight design ideal for portable field testing
- Suitable for CWDM and DWDM applications down to 33 GHz channel spacing
- One-touch testing with automatic pass/fail analysis
Applications
- Deploying and maintaining DWDM metro and core networks
- Installing and maintaining CWDM systems in CATV, access, and mobile backhaul networks
- Verifying high-speed 40/100 G interfaces
- Provisioning and troubleshooting ROADM networks
- Measuring true OSNR in ROADM-based and 40 G networks with overlapping spectra
Specifications
| Form Factor | Modular |
