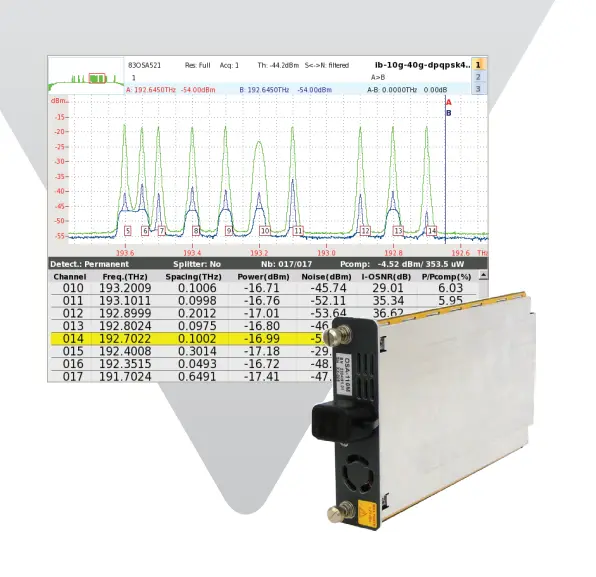

Viavi OSA-110H Optical Spectrum Analyzer
Request a quote
Compact optical spectrum analyzer with high-power measurement (up to +30 dBm), full-band 1250-1650 nm measurement, and ±0.05 nm wavelength accuracy.
Product details
| Model | OSA-110H (2304/91.13) |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi OSA-110H is a compact optical spectrum analyzer module designed for field use in telecommunications networks. As part of the next-generation OSA-110 series, it represents the smallest full-band optical spectrum measurement solution on the market. The OSA-110H specifically integrates high-power measurement capability, making it ideal for cable operators and applications requiring measurement of elevated optical power levels in CWDM and DWDM systems.
Key Features
- High-power measurement capability accommodating optical power levels up to +30 dBm
- Full-band measurement range from 1250 to 1650 nm
- Built-in wavelength calibration with ±0.05 nm wavelength accuracy
- Compact and lightweight design ideal for portable field testing
- Suitable for CWDM and DWDM applications down to 33 GHz channel spacing
- One-touch testing with automatic pass/fail analysis
Applications
- Deploying and maintaining DWDM metro and core networks
- Installing and maintaining CWDM systems in CATV, access, and mobile backhaul networks
- Verifying high-speed 40/100 G interfaces
- Provisioning and troubleshooting ROADM networks
Specifications
| Form Factor | Modular |
