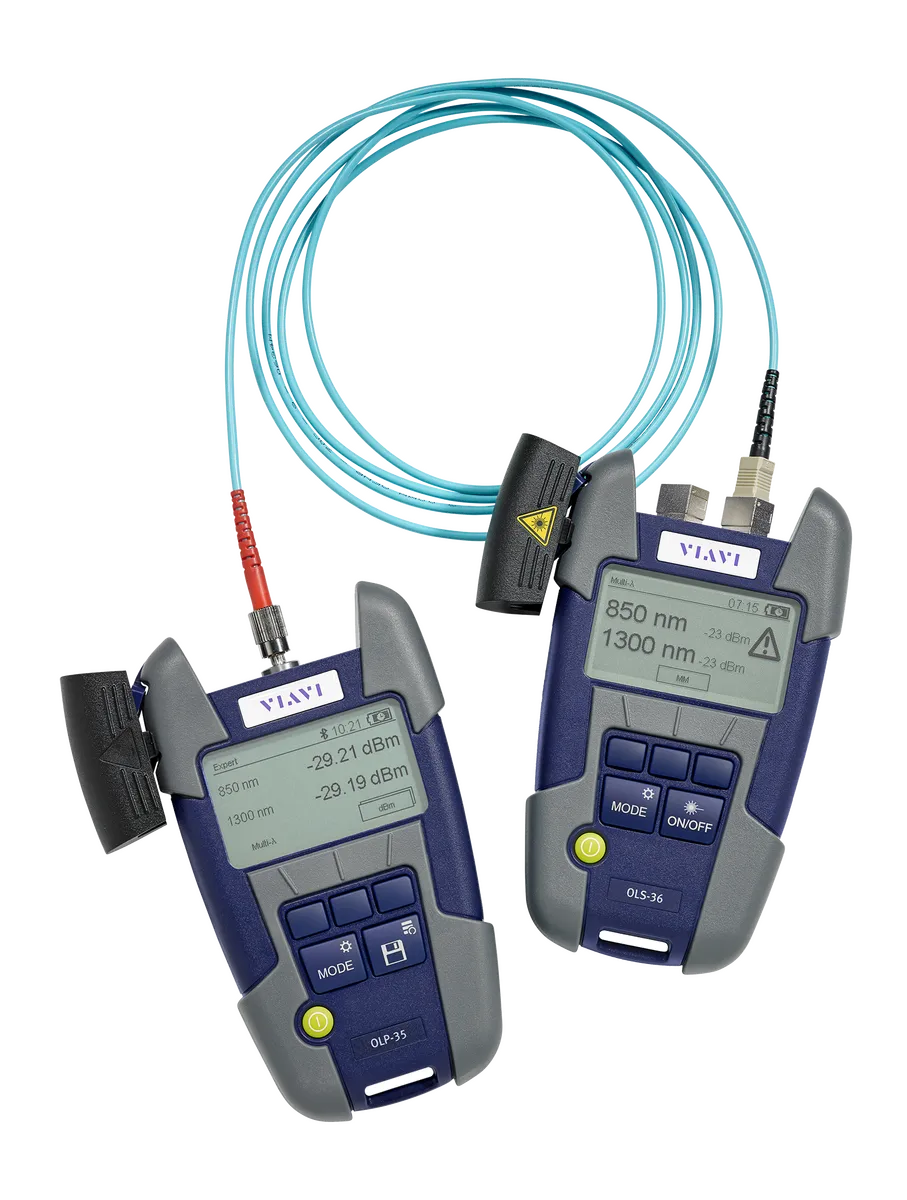

Viavi OMK-36V2 Quad SM/MM Optical Test Kit
Request a quote
Viavi OMK-36V2 is a pocket-sized optical test kit combining a broadband power meter with quad-wavelength light source for singlemode and multimode fiber optic network installation and maintenance.
Product details
| Model | OMK-36V2 |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi OMK-36V2 SmartPocket V2 is a pocket-sized optical test kit designed for the installation and maintenance of single mode and multimode fiber optic networks. This quad-wavelength kit combines a broadband optical power meter with dual-port multimode/singlemode light source for comprehensive power level and insertion loss measurements in enterprise LAN/WAN environments.
Key Features
- Broadband power meter with quad-wavelength sources (850, 1300, 1310, 1550 nm)
- Fiber tracing capability for detecting optical light source tones
- Storage for over 1000 test results with PC download capability
- Bluetooth Low Energy connectivity to VIAVI Mobile Tech App
- Multiple power options: alkaline AA, NiMH AA rechargeable, or AC adapter
- 3-year recalibration period and instant-on operation
Applications
- Measuring optical power levels and link insertion loss for single mode and multimode networks
- Network installation and maintenance in enterprise LAN/WAN environments
- FTTx deployment and testing
- Telecom, CATV, and military applications requiring standard and high-power level tests
Included Accessories
- VIAVI OLS-36V2 light source
- VIAVI OLP-35V2 optical power meter
- Soft carrying bag
- Universal AC power adapter
- Neck strap and quick start guide
- Dry AA batteries
Specifications
| Ready when you need it - ultra-high reliability and high availability | Dependable, German design Designed with outdoor environment in mind Low power consumption for extended continuous use Instant On – no boot time |
| Easy to use | High-Visibility backlit graphical display with context-sensitive softkey No setup ‘OptiChek’ measurement mode Fast Auto-λ, Multi-λ mode (~ 1 sec) Clear pass/fail information Automatic upload of results via VIAVI Mobile Tech application |
| OMK-36V2 | A quad SM/MM kit with an OLS-36V2 and an OLP-35V2 for Enterprise LAN / WAN applications. |
| Light Source Wavelengths | 1310, 1550 nm850, 1300, 1310, 1550 nm1310, 1550 nm |
| Light Source Output Power | Typ. -3 dBmTyp. -20 dBm / -3 dBmTyp. -3 dBm |
| Optical Power Meter Power Range | -65 to +10 dBm-65 to +10 dBm-50 to +26 dBm |
| Model / Part Number | Description |
| OMK-36V2 | Enterprise Plus - Quad SM/MM Test Kit |
