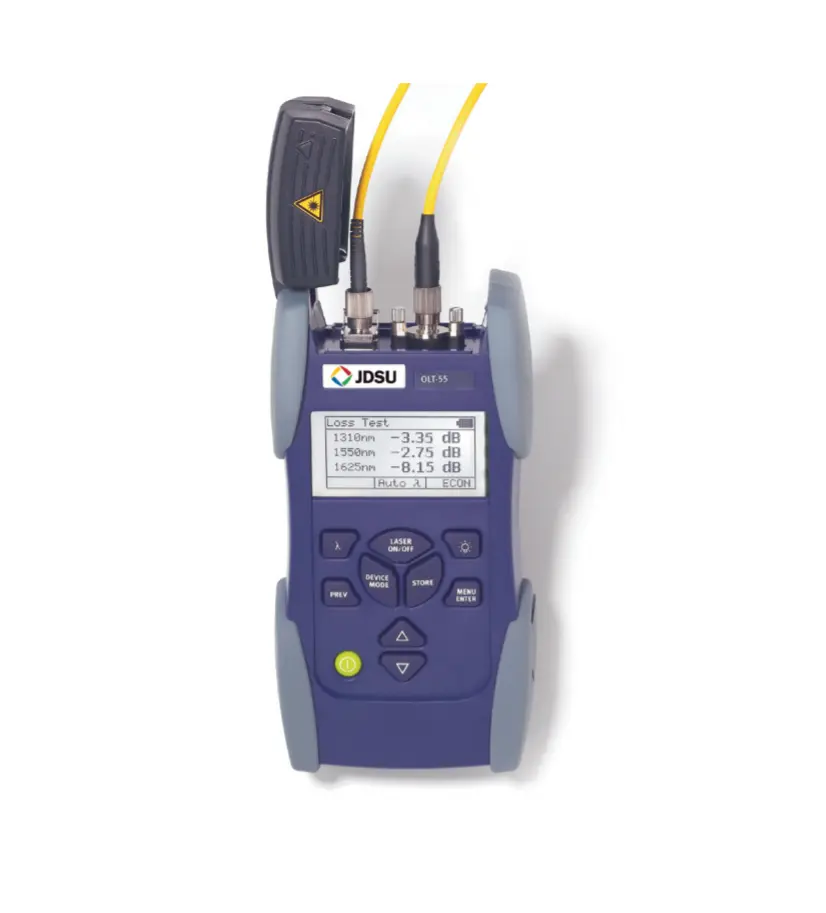

Viavi OLT-55 (2286/01) Optical Loss Test Set
Request a quote
Viavi OLT-55 (2286/01) is a universal instrument combining optical light source and power meter for single-mode fiber testing from lab through installation and troubleshooting.
Product details
| Model | OLT-55 (2286/01) |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi OLT-55 is a universal optical loss test set combining a light source and power meter in a single instrument for single-mode fiber testing. It serves applications ranging from laboratory measurements through field installation, maintenance, and troubleshooting of optical networks and systems.
Key Features
- Combines optical light source and power meter in single unit
- Three versions available for different networks: standard (1310/1550 nm), FTTx (1310/1490/1550 nm), and CATV (1310/1550/1625 nm)
- Simultaneous loss measurements at up to 3 wavelengths
- Auto-lambda function for automatic wavelength detection
- Built-in auto-zeroing for very low power and high loss measurements
- Can operate as standalone power meter or laser source
- Built-in USB interface for remote control and report generation
- Visual Fault Locator and USB data storage options
- Power meter input reflection trap for enhanced measurement accuracy
- High output stability with built-in optical isolators
- SMARTStar graphical user interface and SMARTEnergy power management
- Shock-proof and splash-proof design for field operation
- Quick start with no warm-up required
- Measurements traceable to NIST/PTB standards
- One-handed field operation capability
Applications
- Broadband optical network testing
- Passive Optical Network (PON) characterization
- Gigabit Ethernet signal testing
- Lab measurements and manufacturing quality control
- Field installation and fiber certification
- Network maintenance and troubleshooting
Specifications
| Type | Combined Light Source and Power Meter |
| Wavelength Versions | 1310/1550 nm, 1310/1490/1550 nm (FTTx), 1310/1550/1625 nm (CATV) |
| Simultaneous Measurements | Up to 3 wavelengths |
| Fiber Type | Single-mode |
| Auto-lambda Detection | Yes |
| Interface | USB for remote control and report generation |
| Special Features | Visual Fault Locator, USB data storage, auto-zeroing |
| Design | Shock-proof and splash-proof field-rated |
| Calibration | Traceable to NIST/PTB standards |
| Operation | One-handed field operation, no warm-up required |
