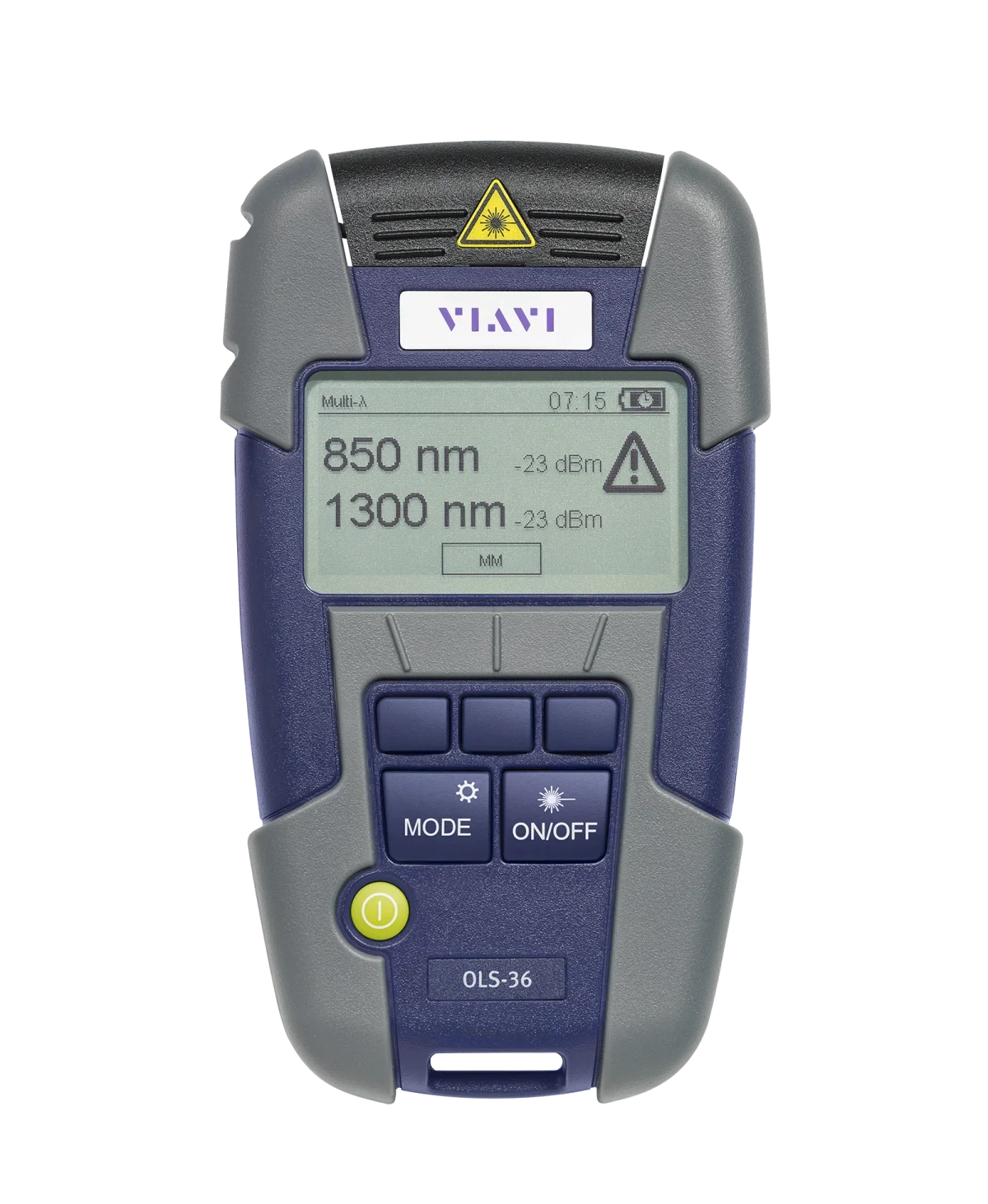

Viavi OLS-36V2 Optical Light Source
Request a quote
SmartPocket V2 optical light source for insertion loss and continuity testing with 850/1300/1310/1550 nm wavelengths and switchable adapters.
Product details
| Model | OLS-36V2 (2334/21) |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi OLS-36V2 is a SmartPocket V2 optical light source designed for quick and convenient field insertion loss measurement and continuity checks in both single-mode and multimode optical fiber networks. This rugged, pocket-sized instrument combines up to four wavelengths in one device, making it an ideal complement to SmartPocket V2 optical power meters for comprehensive fiber optic testing.
Key Features
- Four-wavelength operation: 850 nm, 1300 nm (multimode) and 1310 nm, 1550 nm (single-mode)
- High-visibility backlit graphical display with context-sensitive soft keys
- Fast Auto-λ and Multi-λ modes when paired with SmartPocket V2 power meters
- Fiber tracing with light source tone generation for detection by SmartPocket V2 meters
- Four-way power supply: alkaline AA, NiMH rechargeable AA, AC adapter, or USB
- Switchable optical adapter versions for maximum flexibility (SC, FC, ST, LC)
- Ultra-high reliability and low power consumption for extended field use
- Instant on operation with no boot time required
Applications
- Insertion loss measurement and link verification in Enterprise and LAN networks
- Access and metro network testing (LAN/WAN)
- FTTx deployment and maintenance (Fiber-to-the-Home/Antenna)
- Field continuity checks and network build-out verification
