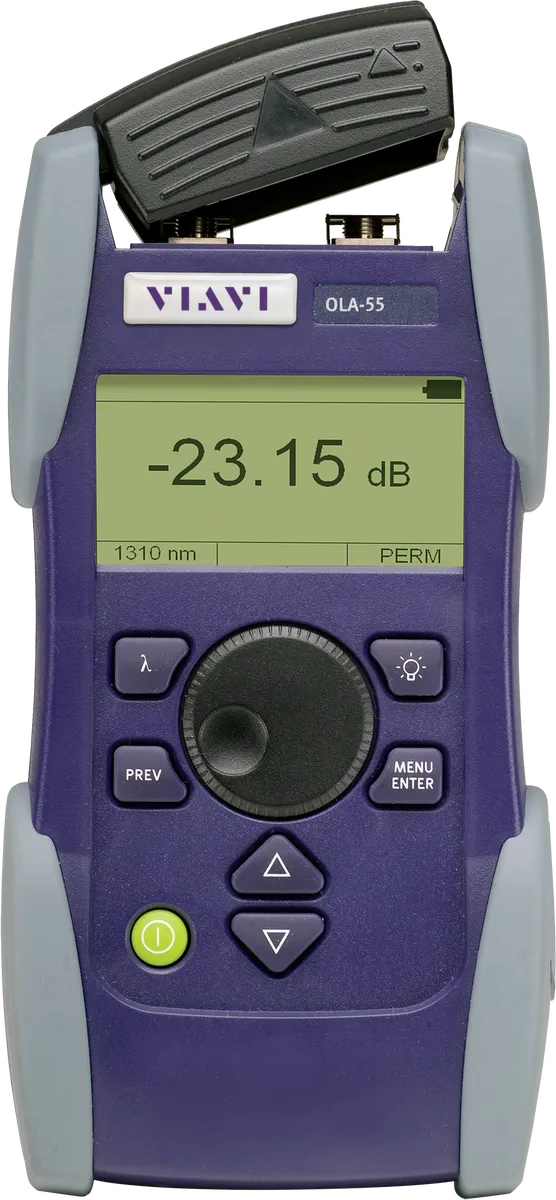

Viavi OLA-55M (2280/02) Optical Level Attenuator
Request a quote
Viavi OLA-55M is a motorized optical level attenuator with integrated power meter for single-mode fiber testing, offering ±0.8 dB accuracy and 40 Gbps readiness.
Product details
| Model | OLA-55M (2280/02) |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The SmartClass OLA-55M is a motorized optical level attenuator designed for fiber system testing, installation, and maintenance of single-mode fibers. The integrated power meter enables stabilized level controller applications and advanced measurement capabilities. This instrument is engineered for professional-grade power and loss testing in field environments.
Key Features
- Motorized variable attenuator with level controller function for direct output level setting
- Integrated power meter for stabilized level controller applications
- 40 Gbps ready due to low Differential Group Delay
- Robust, shock-proof, and splash-proof design for field operation
- USB port for remote operation and control
- Absolute and relative attenuation setting modes
- 400 adjustable wavelengths (1260–1650 nm, 1 nm increments)
- Traceable measurements to NIST/PTB standards
- Long battery operation time (>300 hours on dry batteries)
Applications
- Single-mode fiber system testing and commissioning
- Fiber installation and maintenance with power monitoring
- Production testing of single-mode fiber installations
- Field power and loss testing with portable measurement capability
Specifications
| Features | Parameters |
| Table Adjustable Wavelength Range | 750 to 1350 nm in 1 nm Increments1260 to 1650 nm in 1 nm Increments |
| Reference/Order Number | Instrument |
| BN 2280/02 | SmartClass OLA-55M Single-mode, variable attenuator incl. level control mode, PC |
