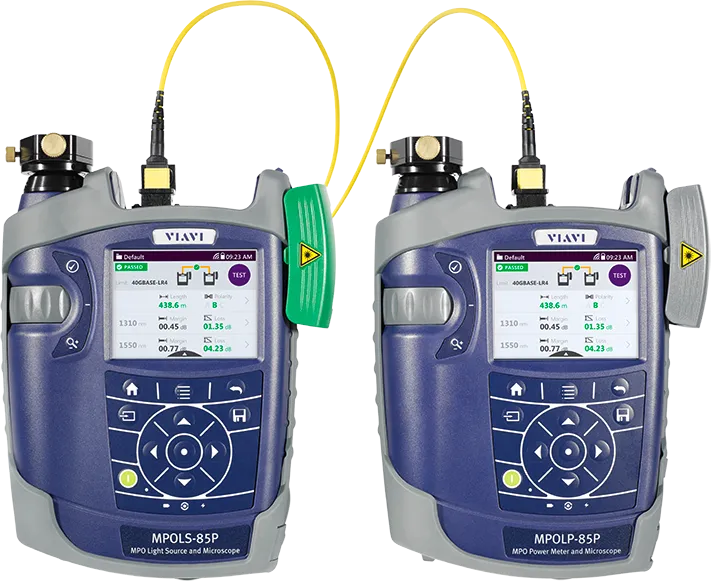

Viavi MPOLx (2330/24) Optical Loss Test Set
Viavi MPOLx 2330/24 Multimode Loss Kit with PCM for multimode fiber certification (850/1300 nm) with dual-wavelength sources, polarity checking, and results for all 12 fibers in under 6 seconds.
Product details
| Model | MPOLx (2330/24) |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi SmartClass Fiber MPOLx with integrated Patch Cord Microscope (PCM) is an optical loss test set for complete Tier 1 (Basic) certification of multimode MPO fiber networks. It integrates dual-wavelength light sources (850/1300 nm) and a broadband power meter into a single solution, enabling technicians to perform all necessary certification requirements from either end of the connection.
With identical local and remote units, the MPOLx provides full visibility and control from both the source and meter side. The 3.5-inch color touch-screen interface displays comprehensive results for all 12 fibers in under 6 seconds, including loss values, margins, and polarity results. The integrated microscope enables detailed inspection of patch cord ends. A single technician can complete end-face inspection and testing without repeatedly walking between units.
Key Features
- Integrated Patch Cord Microscope (PCM) for detailed end-face inspection
- Measures optical loss at multimode wavelengths (850 nm and 1300 nm)
- Measures fiber length
- Checks polarity for all 12 MPO fibers
- Native MPO testing and end-face inspection for bulkhead and trunk connectors
- Delivers test results for all 12 fibers in under 6 seconds with color-coded pass/fail indicators
- Encircled flux compliant
- 3.5-inch color touch-screen interface
- Generates certification reports
- All-day battery life
Applications
- Tier 1 (Basic) certification testing for multimode fiber networks
- Patch cord end-face inspection and analysis
- LAN and data center network link certification
- Field deployment and verification
Included Accessories
- MPO cleaning tool
- Soft carrying case
- Test cords
Specifications
| Feature | Without PCMWith PCM |
| Display | High-contrast 3.5” color LCD with touch-screen functionalityHigh-contrast 3.5” color LCD with touch-screen functionality |
| Data Memory | Up to 10.000 loss test results (>1000 including inspection) Up to 10.000 loss test results (>1000 including inspection) |
| Data Readout | Via client USB interface, and wireless via USB WiFi/Bluetooth adapter (option)Via client USB interface, and wireless via USB WiFi/Bluetooth adapter (option) |
| Electrical Interfaces | 2 x USB host 1x micro USB Ethernet 2 x USB host 1x micro USB Ethernet |
| Power Supply | 12 V, 2A with interchangeable wall plug for EU, UK, US, and AU12 V, 2A with interchangeable wall plug for EU, UK, US, and AU |
| Battery | Li-ion pack 3.7 V, 20 Wh (optional 8 NiMH/dry batteries) Li-ion pack 3.7 V, 20 Wh (optional 8 NiMH/dry batteries) |
| Recommended recal. Interval | 3 years3 years |
| Weight* | 600 g 1.6 lb 750 g 1.85 lb |
| Operating Temperature Range | –5˚ to +45˚C 23˚ to 113˚F –5˚ to +45˚C 23˚ to 113˚F |
| Storage Temperature Range | –25˚ to +55˚C –13° to 131°F –25˚ to +55˚C –13° to 131°F |
| Part Number | Description |
| 2330/24 | Multimode Loss Kit; (850/1300), LS/PM with PCM, without P5000i probes |
Request a quote
