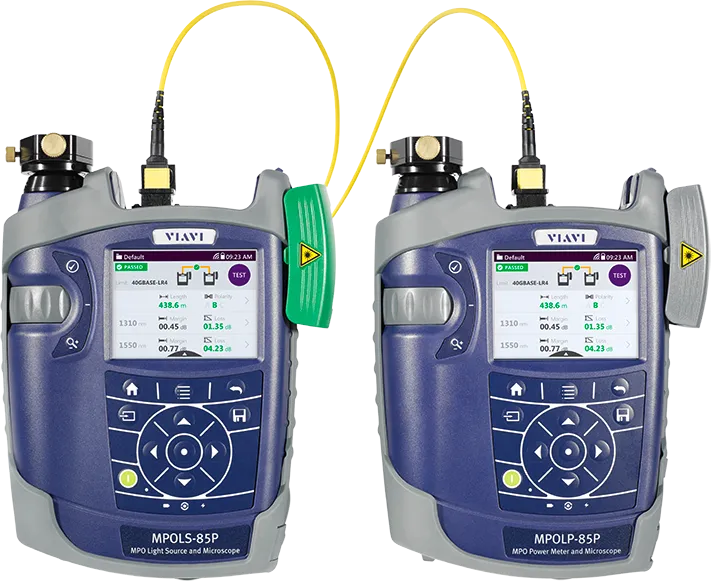

Viavi MPOLx (2329/31) Optical Loss Test Set
Viavi MPOLx 2329/31 Single-Mode Loss Kit for single-mode fiber certification (1310/1550) with dual-wavelength sources, polarity checking for all 12 fibers, and rapid test results in under 6 seconds.
Product details
| Model | MPOLx (2329/31) |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi SmartClass Fiber MPOLx is an optical loss test set designed for complete Tier 1 (Basic) certification of single-mode MPO fiber networks. It integrates a dual-wavelength light source (1310/1550 nm) and power meter into a single solution, enabling technicians to perform all necessary certification requirements from either end of the connection.
With identical local and remote units, the MPOLx provides full visibility and control from both the source and meter side. The 3.5-inch color touch-screen interface displays comprehensive results for all 12 fibers in under 6 seconds, including loss values, margins, and polarity results. A single technician can complete end-face inspection and testing without repeatedly walking between units.
Key Features
- Measures optical loss at single-mode wavelengths (1310 nm and 1550 nm)
- Measures fiber length
- Checks polarity for all 12 MPO fibers
- Native MPO testing and end-face inspection for bulkhead and trunk connectors
- Delivers test results for all 12 fibers in under 6 seconds with color-coded pass/fail indicators
- Encircled flux compliant
- 3.5-inch color touch-screen interface
- Generates certification reports
- All-day battery life
Applications
- Tier 1 (Basic) certification testing for single-mode fiber networks
- Long-distance network link testing and certification
- Fiber end-face inspection
- Field deployment and verification
Included Accessories
- Two P5000i optical loss test probes
- MPO cleaning tool
- Soft carrying case
- Test cords
Specifications
| Feature | Without PCMWith PCM |
| Display | High-contrast 3.5” color LCD with touch-screen functionalityHigh-contrast 3.5” color LCD with touch-screen functionality |
| Data Memory | Up to 10.000 loss test results (>1000 including inspection) Up to 10.000 loss test results (>1000 including inspection) |
| Data Readout | Via client USB interface, and wireless via USB WiFi/Bluetooth adapter (option)Via client USB interface, and wireless via USB WiFi/Bluetooth adapter (option) |
| Electrical Interfaces | 2 x USB host 1x micro USB Ethernet 2 x USB host 1x micro USB Ethernet |
| Power Supply | 12 V, 2A with interchangeable wall plug for EU, UK, US, and AU12 V, 2A with interchangeable wall plug for EU, UK, US, and AU |
| Battery | Li-ion pack 3.7 V, 20 Wh (optional 8 NiMH/dry batteries) Li-ion pack 3.7 V, 20 Wh (optional 8 NiMH/dry batteries) |
| Recommended recal. Interval | 3 years3 years |
| Weight* | 600 g 1.6 lb 750 g 1.85 lb |
| Operating Temperature Range | –5˚ to +45˚C 23˚ to 113˚F –5˚ to +45˚C 23˚ to 113˚F |
| Storage Temperature Range | –25˚ to +55˚C –13° to 131°F –25˚ to +55˚C –13° to 131°F |
| Part Number | Description |
| 2329/31 | Single Mode Loss Kit; (1310/1550), LS/PM, two P5000i probes |
