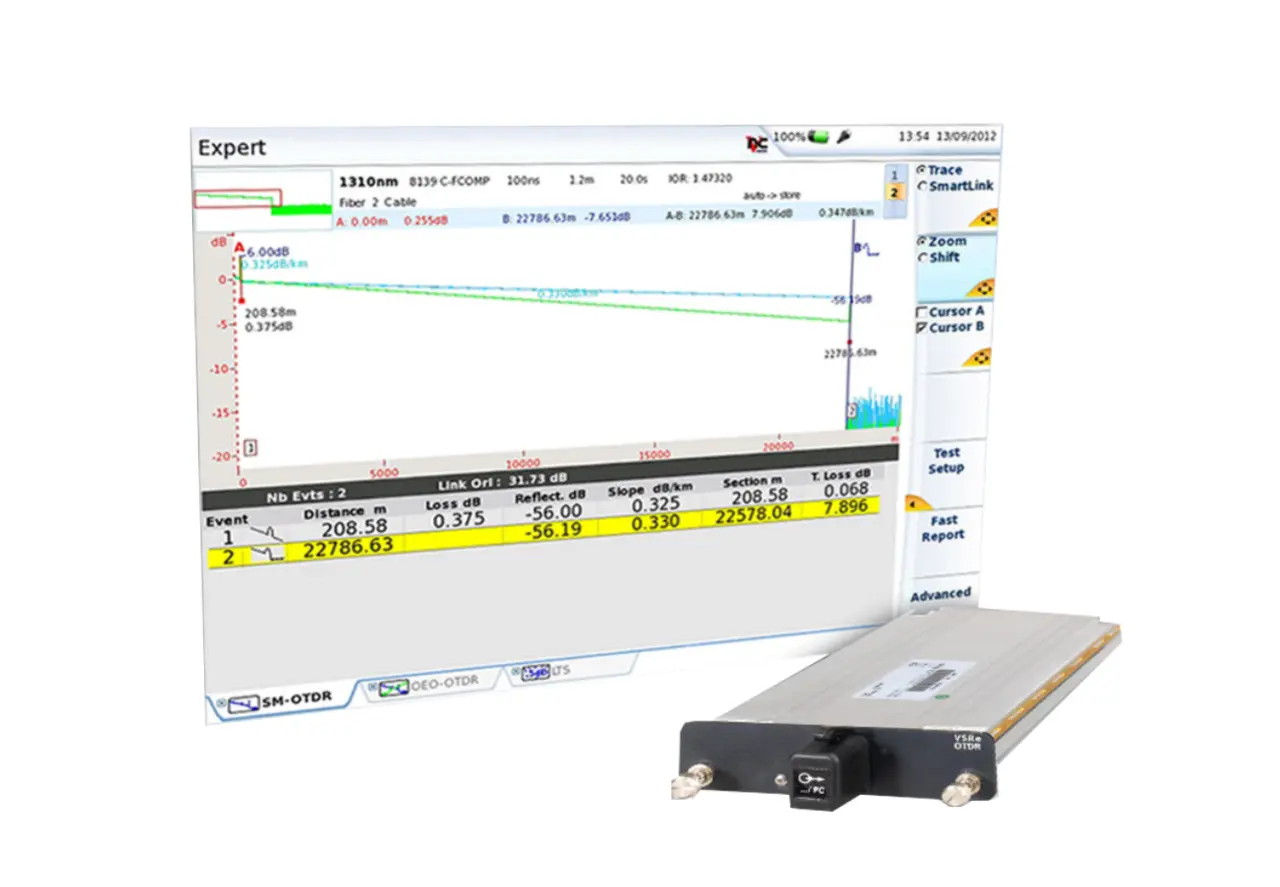

Viavi E8156A OTDR Module
Request a quote
Viavi E8156A OTDR module with 850/1300/1310/1550/1625 nm wavelengths, 40 dB dynamic range, integrated power meter and light source for fiber testing.
Product details
| Model | E8156A |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi E8156A is an 8100A Series OTDR EVO module that extends wavelength coverage to include 1625 nm in addition to the standard 850, 1300, 1310, and 1550 nm wavelengths. This comprehensive wavelength support, combined with strong dynamic range performance, makes it well-suited for multimode and single-mode fiber testing across diverse network types.
Key Features
- 850/1300/1310/1550/1625 nm wavelength support
- Multimode dynamic range: 24 dB
- Single-mode dynamic range: 40 dB
- Pulse width: 1 ns to 20 µs (multimode), 3 ns to 20 µs (single-mode)
- Integrated continuous wave light source and broadband power meter
- Industry-leading dead zone performance for full element characterization
- Automatic traffic detection to prevent signal interference
- Smart Link Mapper (SLM) for enhanced OTDR interpretation
Applications
- Multimode and single-mode fiber network commissioning
- Fiber link characterization and acceptance testing
- Network troubleshooting and fault location
- In-service testing with traffic detection protection
- Extended wavelength coverage for specialized fiber testing
Specifications
| Wavelength | 850/1300/1310/1550/1625nm |
| Form Factor | Modular |
