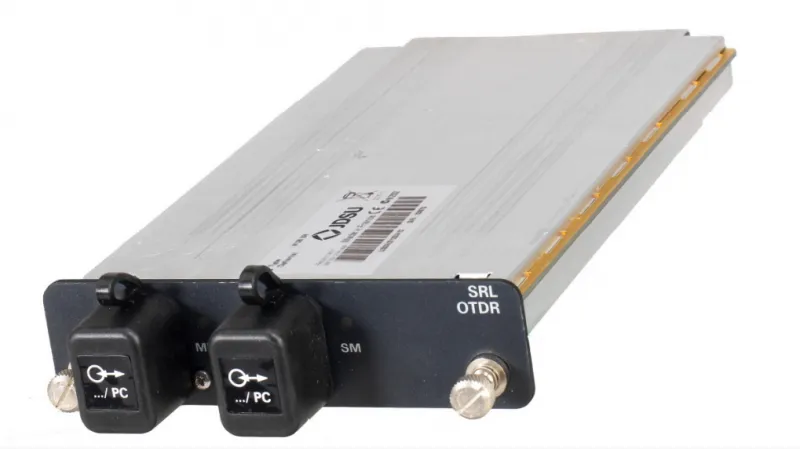

Viavi E8136C 8100-Series OTDR EVO Module
Request a quote
Viavi E8136C is an 8100-Series OTDR EVO module supporting 1310/1490/1550/1625/1650 nm with 47.5 dB dynamic range, 0.5 m dead zone, and integrated power meter and light source.
Product details
| Model | E8136C |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi E8136C is an 8100-Series OTDR EVO module designed for comprehensive single-mode and multimode fiber testing. It provides extended wavelength support and enhanced performance specifications compared to earlier generations, making it ideal for modern optical networks.
Key Features
- 8100C-Series OTDR EVO supporting 1310, 1490, 1550, 1625, and 1650 nm wavelengths
- Dynamic range up to 47.5 dB at 1310 nm and 46-47 dB at other wavelengths
- Event dead zone of 0.5 m for close event detection
- Integrated continuous wave light source with multiple wavelength support
- Broadband power meter with calibration at multiple wavelengths
- PON-optimized with testing capability through 1x128 splitter
- Automatic traffic detection and fiber safety features
- Multimode source compliant with IEC 61280-1-4 standard
Applications
- Single-mode and multimode fiber commissioning
- PON and metro network testing
- Optical network upgrades and maintenance
- Complex fiber link characterization
- Wavelength-specific OTDR analysis
Specifications
| Wavelength | 1310/1550/1625nm |
| Form Factor | Modular |
