Viavi E8126LRE Enhanced Long Range OTDR Module
Request a quote
Viavi E8126LRE enhanced long range OTDR module with 45/43 dB dynamic range at 1310/1550 nm.
Product details
| Model | E8126LRE |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview

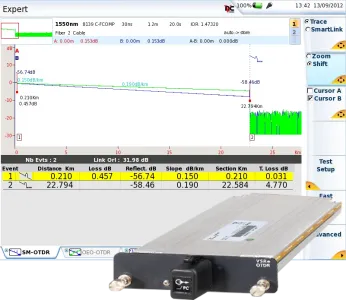

The Viavi E8126LRE is a field-installable OTDR plug-in module for MTS/T-BERD testing platforms. This enhanced long range singlemode OTDR module provides the highest dynamic range performance for optical fiber testing, enabling reliable network commissioning and comprehensive fault locating capabilities.
Key Features
- Field-installable single-slot plug-in for MTS/T-BERD platforms
- Enhanced dynamic range: 45 dB @ 1310 nm, 43 dB @ 1550 nm
- Up to 128,000 acquisition points with 0.1 s real-time sweep
- Shortest event dead zone of 1 m
- Automatic and advanced testing functions for maximum flexibility
- Complete fiber characterization: chromatic dispersion, polarization mode dispersion, spectral attenuation
- FiberTrace and FiberCable PC software for report generation
- Remote control and internet data access capabilities
Applications
- Optical fiber network commissioning and acceptance testing
- Fault locating and network troubleshooting
- Long-distance fiber link characterization and performance verification
Specifications
| Wavelengths | 1310 nm, 1550 nm |
| Dynamic Range @ 1310 nm | 45 dB |
| Dynamic Range @ 1550 nm | 43 dB |
| Event Dead Zone | 1 m |
| Maximum Acquisition Points | 128,000 |
| Real-time Sweep | 0.1 s |
| Module Type | Single-slot plug-in |
