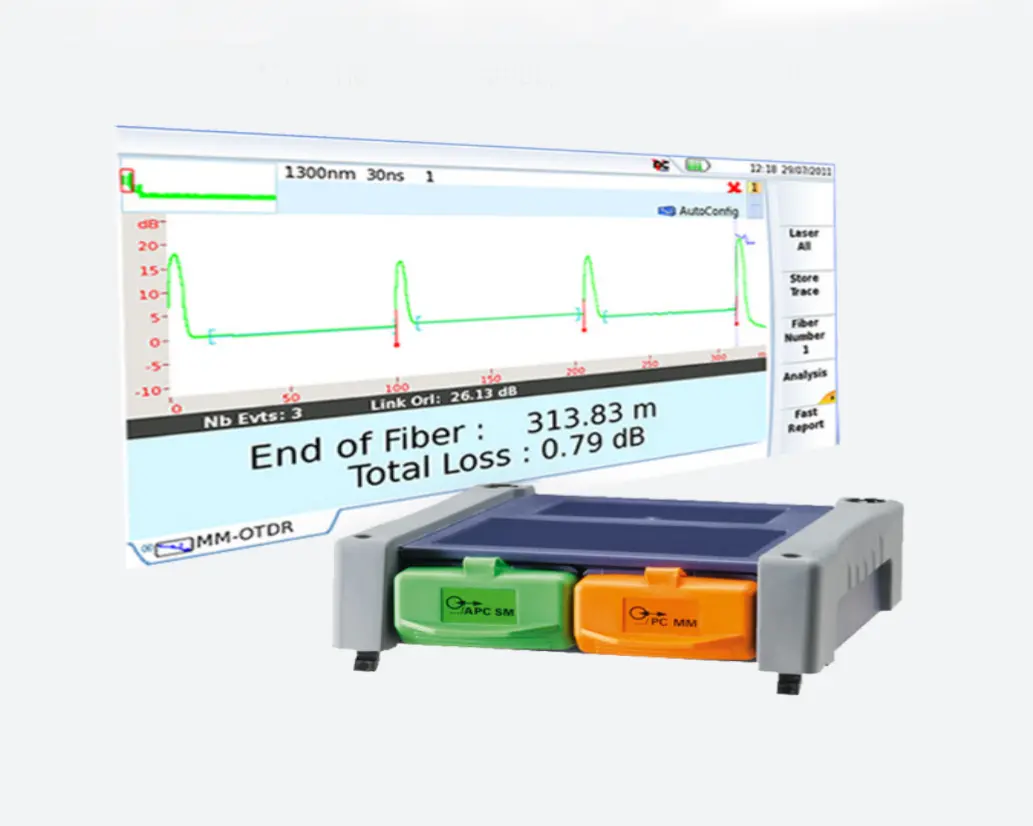

Viavi E4146QUAD-APC OTDR Module
Request a quote
Viavi E4146QUAD-APC OTDR module with APC single-mode and PC multimode connectors, integrated CW light source, and 37 dB SM dynamic range.
Product details
| Model | E4146QUAD-APC |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi E4146QUAD-APC is a full-featured optical time domain reflectometer (OTDR) module designed for the T-BERD/MTS-4000 platform family. It provides comprehensive testing capabilities for both multimode and single-mode fiber installations, with APC connectors on single-mode and PC connectors on multimode. The module features an integrated continuous wave (CW) light source and power meter for optical power level and insertion loss measurements across both fiber types.
Key Features
- Supports T-BERD/MTS 2000, 4000 V2, and 5800 platforms
- Dual multimode and quad (MM+SM) wavelength support
- APC connectors on single-mode, PC connectors on multimode
- Dynamic range: 27/25 dB (MM), 37/35 dB (SM)
- Event dead zones less than 1m, attenuation dead zones 4m
- Integrated MM/SM loss test sets
- Automated bend detection
- Propagation delay measurement for multimode fiber
- USB ports for data storage, peripherals, and fiber inspection microscope
- Ethernet-based remote control
Applications
- Enterprise and LAN network testing and certification
- Access and premises network deployment and troubleshooting
- Wireless backhaul network verification
- Link characterization and loss measurement
- Visual fault location and fiber connector inspection
Specifications
| Form Factor | Modular |
