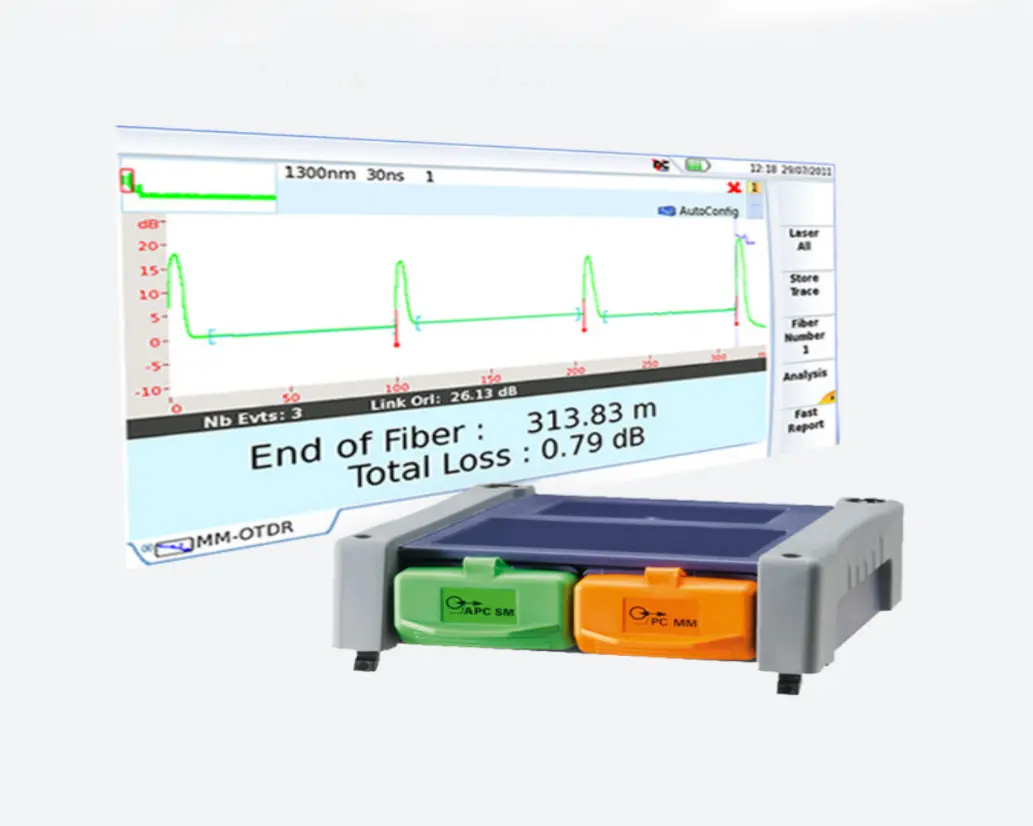

Viavi E4146QUAD OTDR Module
Request a quote
Viavi E4146QUAD is a multimode/single-mode OTDR module with integrated CW light source, 37 dB SM dynamic range, and automatic event analysis.
Product details
| Model | E4146QUAD |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi E4146QUAD is a full-featured optical time domain reflectometer (OTDR) module designed for the T-BERD/MTS-4000 platform family. It provides comprehensive testing capabilities for both multimode and single-mode fiber installations. The module features an integrated continuous wave (CW) light source and power meter for optical power level and insertion loss measurements across both fiber types.
Key Features
- Supports T-BERD/MTS 2000, 4000 V2, and 5800 platforms
- Dual multimode and quad (MM+SM) wavelength support
- Dynamic range: 27/25 dB (MM), 37/35 dB (SM)
- Event dead zones less than 1m, attenuation dead zones 4m
- Integrated MM/SM loss test sets
- Automated bend detection
- Propagation delay measurement for multimode fiber
- USB ports for data storage, peripherals, and fiber inspection microscope
- Ethernet-based remote control
Applications
- Enterprise and LAN network testing and certification
- Access and premises network deployment and troubleshooting
- Wireless backhaul network verification
- Link characterization and loss measurement
- Visual fault location and fiber connector inspection
Specifications
| Wavelength | 850/1300/1310/1550nm |
| Form Factor | Modular |
