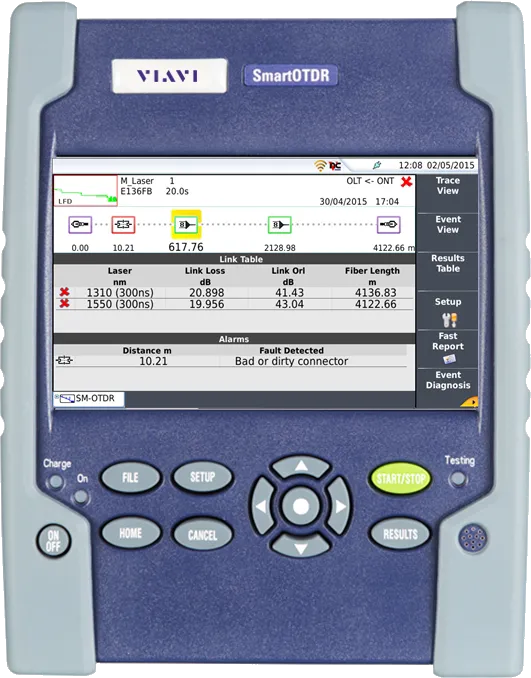

Viavi E126A-PC SmartOTDR Fiber Tester
Request a quote
Viavi E126A-PC is a dual-wavelength SmartOTDR handheld tester with 1310/1550nm capabilities, PON optimization, and automated fiber inspection.
Product details
| Model | E126A-PC |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Viavi E126A-PC is a dual-wavelength SmartOTDR handheld tester combining OTDR analysis, optical power metering, visual fault location, and automated fiber inspection in one compact device. Designed for field technicians, it delivers consistent measurements across 1310/1550 nm wavelengths with one-touch operation and objective, pass/fail testing results.
Key Features
- Dual-wavelength operation at 1310/1550 nm for comprehensive fiber testing
- 5-inch high-visibility outdoor touch screen with hands-free design
- Integrated CW light source and visual fault locator
- PON optimized to test through 1x128 splitter ratio with FTTH-SLM
- Built-in PON/XG-PON power meter supporting 1490/1550/1578 nm
- Automated fiber inspection with macrobend detection and pass/fail analysis
- Wireless connectivity via USB, Bluetooth, and WiFi
- All-day battery life with 3-year warranty
Applications
- Fiber optic network installation and commissioning
- Maintenance and troubleshooting of PON/FTTH networks
- Field fiber inspection and continuity testing
- Automated compliance testing with objective results
Included Accessories
- Hands-free soft case with neck strap
- Stylus for capacitive touch screen
- Lithium-Polymer battery
- SC/PC or SC/APC connector
Specifications
| Wavelength | 1310/1550nm |
| Connector Type | PC |
| Form Factor | Handheld |
