Viavi 2255/90.05 Optical Fiber Identifier
Request a quote
Viavi 2255/90.05 optical fiber identifier uses non-destructive macro-bend detection to identify active signals from 850–1700 nm with -40 dBm sensitivity.
Product details
| Model | 2255/90.05 |
| Manufacturer | Viavi |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview

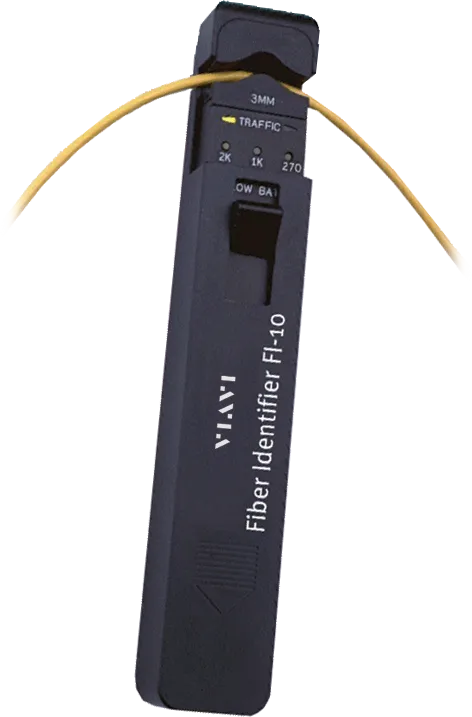

The Viavi FI-10/FI-11 Optical Fiber Identifier is a rugged, handheld instrument that identifies optical fibers by detecting optical signals transmitted through single-mode fiber. Using non-destructive local detection technology (macro-bend detection), it eliminates the need to open fibers at splice points for identification, preventing service interruption.
Key Features
- High-intensity LED indication of active signal transmission
- Interchangeable adapter heads for jacketed, coated, or ribbon fiber
- Non-destructive macro-bend detection technology
- Operating range: 850–1700 nm
- Detection sensitivity: -40 dBm
- Bi-directional traffic indication
- 2-digit LED display for core power measurement (FI-11 model)
- Compatible with most AT&T and Corning optical fibers
- One-hand operation with low battery indication
Applications
- Live fiber identification without service interruption
- Core power measurement and display
- Modulated tone detection (270 Hz, 1000 Hz, 2000 Hz)
- Power loss measurement through splices or connectors
Included Accessories
- Fiber optic probe
- Carrying case
- Three interchangeable adapter heads (jacketed 3 mm, coated 900 µm, ribbon 250 µm)
- 9V battery
Specifications
| Operating Range | 850–1700 nm |
| Detection Sensitivity | -40 dBm |
| Technology | Non-destructive macro-bend detection |
| Adapter Types | Jacketed (3 mm), Coated (900 µm), Ribbon (250 µm) |
| Display | 2-digit LED (FI-11) |
| Power Supply | 9V battery |
| Bi-directional Indication | Yes |
| Compatibility | AT&T and Corning optical fibers |
