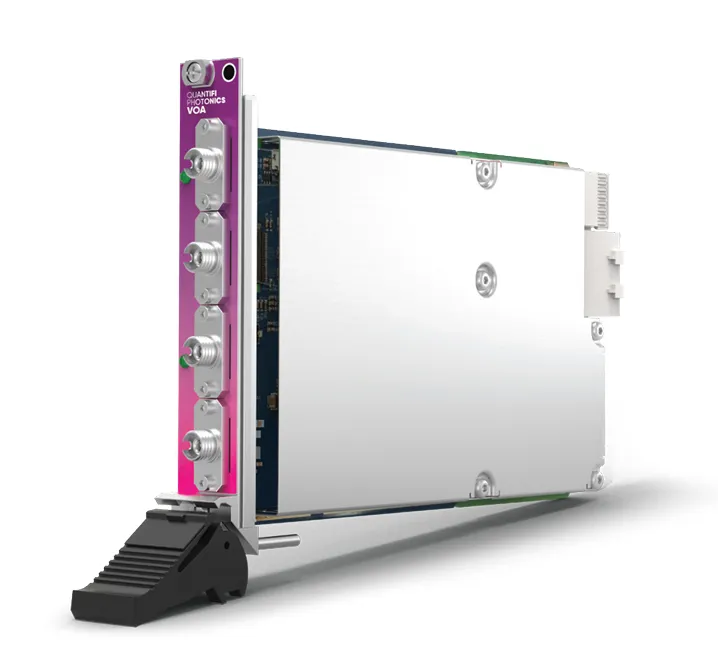

Quantifi Photonics VOA-1002-2-FC-PXIE Variable Optical Attenuator
Request a quote
Quantifi VOA-1002-2-FC-PXIE is a 2-channel MEMS variable optical attenuator with fast attenuation speed, low insertion loss, and integrated power meter for optical measurements.
Product details
| Model | VOA-1002-2-FC-PXIE |
| Manufacturer | Quantifi Photonics |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Quantifi Photonics VOA-1002-2-FC-PXIE is a MEMS-based variable optical attenuator featuring dual channels in a single PXIe slot. It combines fast attenuation speed, low insertion loss, and an integrated power meter in one compact module. The advanced power stabilization function maintains output power stability even when input power fluctuates, making it ideal for precise optical testing applications across 1260–1650 nm wavelengths.
Key Features
- MEMS-based variable optical attenuator technology
- 2-channel configuration in single PXIe slot
- Fast attenuation speed: 0.1 to 1000 dB/s
- Low insertion loss: <2.0 dB typical
- Built-in power meter with ±0.34 dB typical uncertainty
- Advanced power stabilization function
- Broadband wavelength support: 1260–1650 nm on SMF-28 fiber
- High channel density for versatile PXI integration
Applications
- Transceiver stress testing
- Receiver sensitivity testing
- Loss simulation and optical power budget analysis
- Instrument power calibration
- EDFA gain linearity testing
Specifications
| Attenuator | 10011002 |
| Power Meter | 10011002 |
