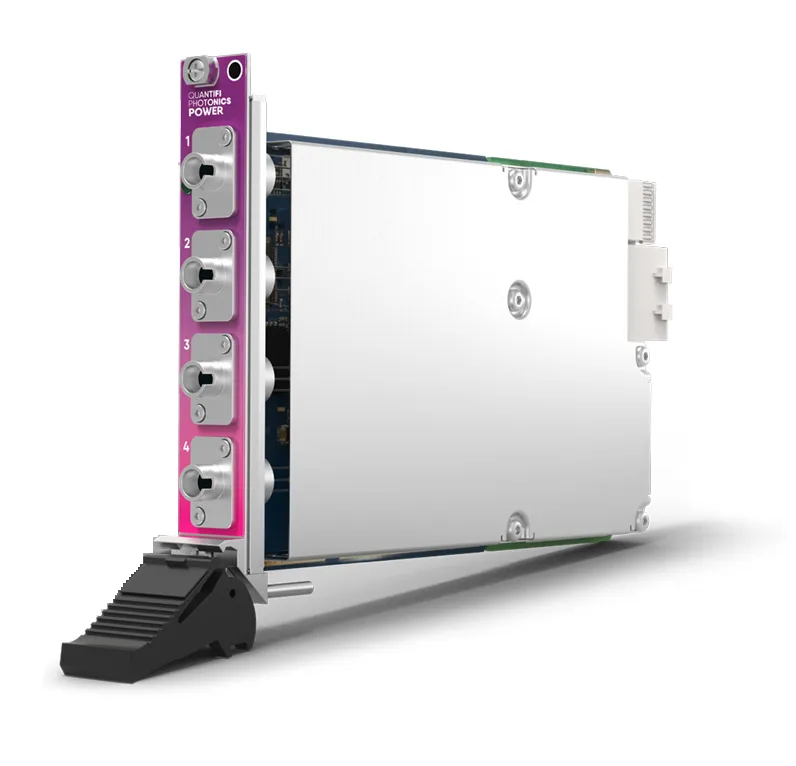

Quantifi Photonics POWER-1401-4-FC-PXIE Optical Power Meter
Request a quote
Quantifi Photonics POWER-1401-4-FC-PXIE is a 4-channel optical power meter with -60 to +10 dBm range, 750-1700 nm wavelength support, and logarithmic amplifier.
Product details
| Model | POWER-1401-4-FC-PXIE |
| Manufacturer | Quantifi Photonics |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Quantifi Photonics POWER-1401-4-FC-PXIE is a 4-channel optical power meter module designed for PXIe systems. It provides fast monitoring of signal power from -60 to +10 dBm across a broad wavelength range of 750 to 1700 nm. Utilizing a logarithmic amplifier architecture, it delivers consistent and reliable measurements without the gain jumps characteristic of multi-stage linear amplifier designs.
Key Features
- 4 channels for high channel density in PXIe chassis
- Logarithmic amplifier eliminates gain jumps for reliable measurements
- Fast power monitoring: -60 to +10 dBm range
- Broad wavelength range: 750 to 1700 nm
- Data logging capability: up to 1024 samples on 2 channels
- Simple intuitive operation via CohesionUI
- Seamless PXI integration with advanced triggering and synchronization
- Control via PC or mobile device with large format view mode
Applications
- Fiber optic manufacturing test
- Power measurement integration for automated test systems
- Fiber optic laser test and characterization
- R&D and production testing
Specifications
| Data Logging Capability | Data logging of up to 1024 samples is available on 2 channels, so you can capture transient events with ease. |
| Single Logarithmic Amplifier | Use of a logarithmic amplifier eliminates the gain jumps exhibited by power meters with multi-stage linear amplifiers. Get consistent and reliable measurement at all power levels. |
| Simple, Intuitive Operation with CohesionUI | Control the Power-PXIe from your PC or mobile device. Plus, large format view mode makes it easy to monitor your instrument even when working away from your desk. |
| Seamless PXI Integration | Take advantage of PXI’s integrated triggering and synchronization capabilities across electrical and optical instruments. |
| 2 or 4 Power Meters in a Single Instrument | Achieve high channel density with up to 68 channels in an 18-slot PXI chassis or 4 channels in an ultra compact benchtop instrument. |
| Bus Connection | PXIeUSB and Ethernet |
| Slot Count | 1 slot: 1401 2 slots: 1405 - |
| Number Of Channels | 2 or 42 or 4 |
| Dimensions (H x W x D) | 1 slot: 130 x 20 x 215 mm 5.1 x 0.8 x 8.5 inches 2 slot: 130 x 40 x 215 mm 5.1 x 1.6 x 8.5 inches 53 x 120 x 202 mm 2.1 x 4.7 x 8.0 inches |
| Weight | ~ 1 kg ~2.2 lbs ~ 1.1 kg ~ 2.4 lbs |
| Operating Temperature Range | 5 °C to 45 °C 41 °F to 113 °F 5 °C to 45 °C 41 °F to 113 °F |
| Storage Temperature Range | -40 °C to 70 °C -40 °F to 158 °F -40 °C to 70 °C -40 °F to 158 °F |
| Model (POWER-XXXX) | Description |
| 1401 | FC/APC FC/PC SC/PC SC/APC connector 750 nm to 1700 nm |
| 4 | 4 channels |
| POWER-XXXX-X-XX-PXIE | PXI - Modular |
