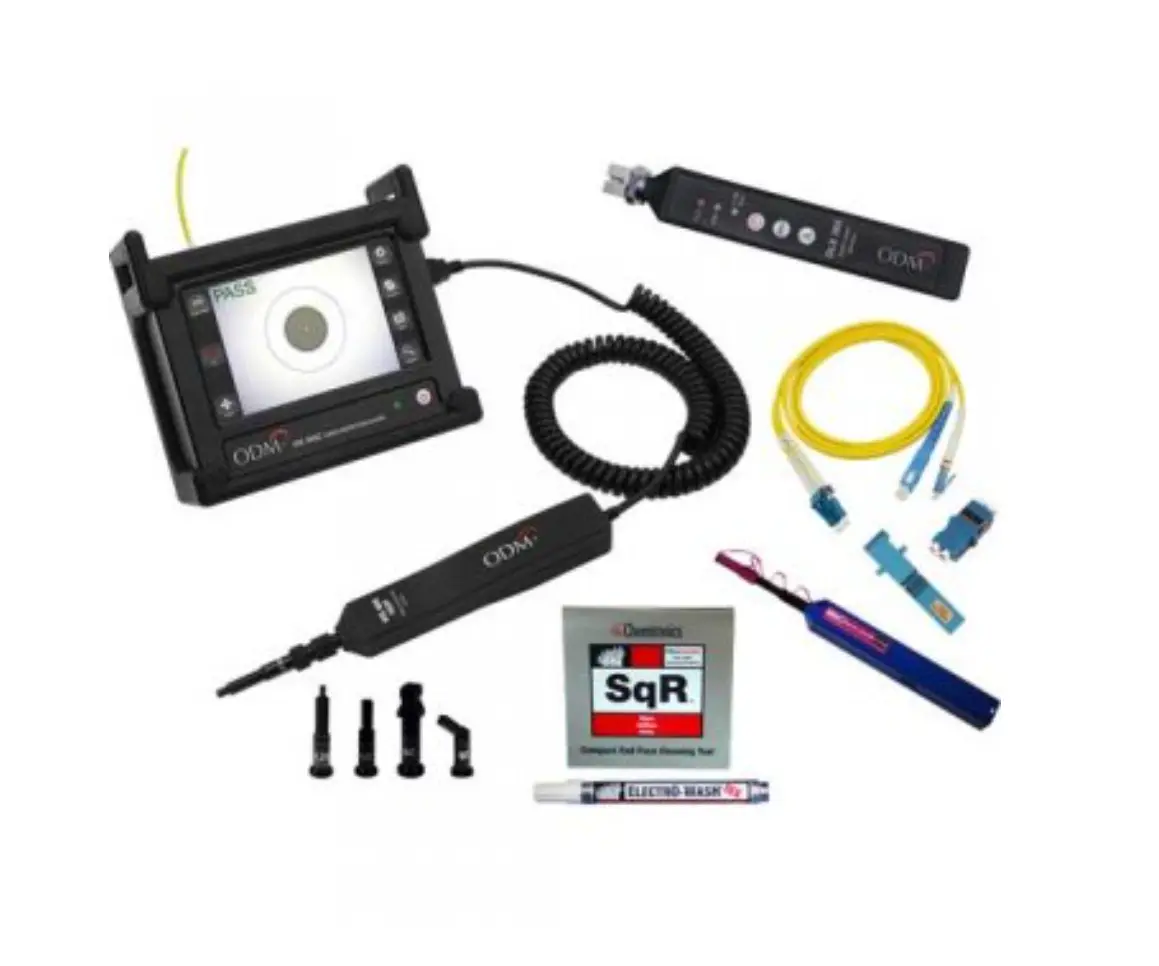

Optical Design TTK_720 Fiber Optic Testing Kit
Request a quote
Optical Design TTK_720 fiber optic testing kit with automated inspection, optical power meter, visual fault locator, and IEC 61300-3-35 compliant analysis.
Product details
| Model | TTK_720 |
| Manufacturer | Optical Design |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Optical Design TTK_720 is a comprehensive fiber optic testing kit built on the VIS 300C-PM-02 platform. It combines an inspection system with an onboard Optical Power Meter (OPM) and Visual Fault Locator (VFL), enabling test technicians and contractors to perform complete field testing, analysis, and reporting with a single integrated system.
Key Features
- 5-inch touchscreen platform with ODM inSpec proprietary software for automated testing
- High-definition inspection scope with interchangeable inspection tips and automated endface analysis
- Optical Power Meter with InGaAs detector for dB loss and dBm power measurements
- Integrated 635 nm red laser Visual Fault Locator to identify breaks and bends in single-mode fiber
- Automated analysis profiles meeting IEC 61300-3-35 industry standards for all common fiber types
- Field-generated closeout reports with Wi-Fi capability for email and cloud storage sharing
- Complete dry cleaning system with lint-free wipes and fiber optic-grade solution
- Included DLS 355 dual laser source and single-mode test jumpers for loss measurements
Applications
- Telecom fiber optic infrastructure testing and validation
- Fiber endface inspection and certification
- Insertion loss and power level measurements on single-mode fiber
- Identification of fiber damage and system integrity checks
Included Accessories
- VIS 300C-PM-02-V inspection and test platform
- HD inspection scope with interchangeable inspection tips
- DLS 355 dual laser source
- Single-mode test jumpers
- Dry cleaning kit with lint-free wipes and fiber optic-grade solution
Specifications
| Platform | VIS 300C-PM-02-V with 5-inch touchscreen |
| Visual Fault Locator Wavelength | 635 nm |
| Inspection Scope | High-definition with interchangeable tips |
| Optical Power Meter Detector | InGaAs |
| Standards Compliance | IEC 61300-3-35 |
| Testing Capability | Single-mode fiber loss and power measurements |
| Data Management | Field reporting with Wi-Fi and cloud storage |
| Cleaning System | Dry cleaning with lint-free wipes |
