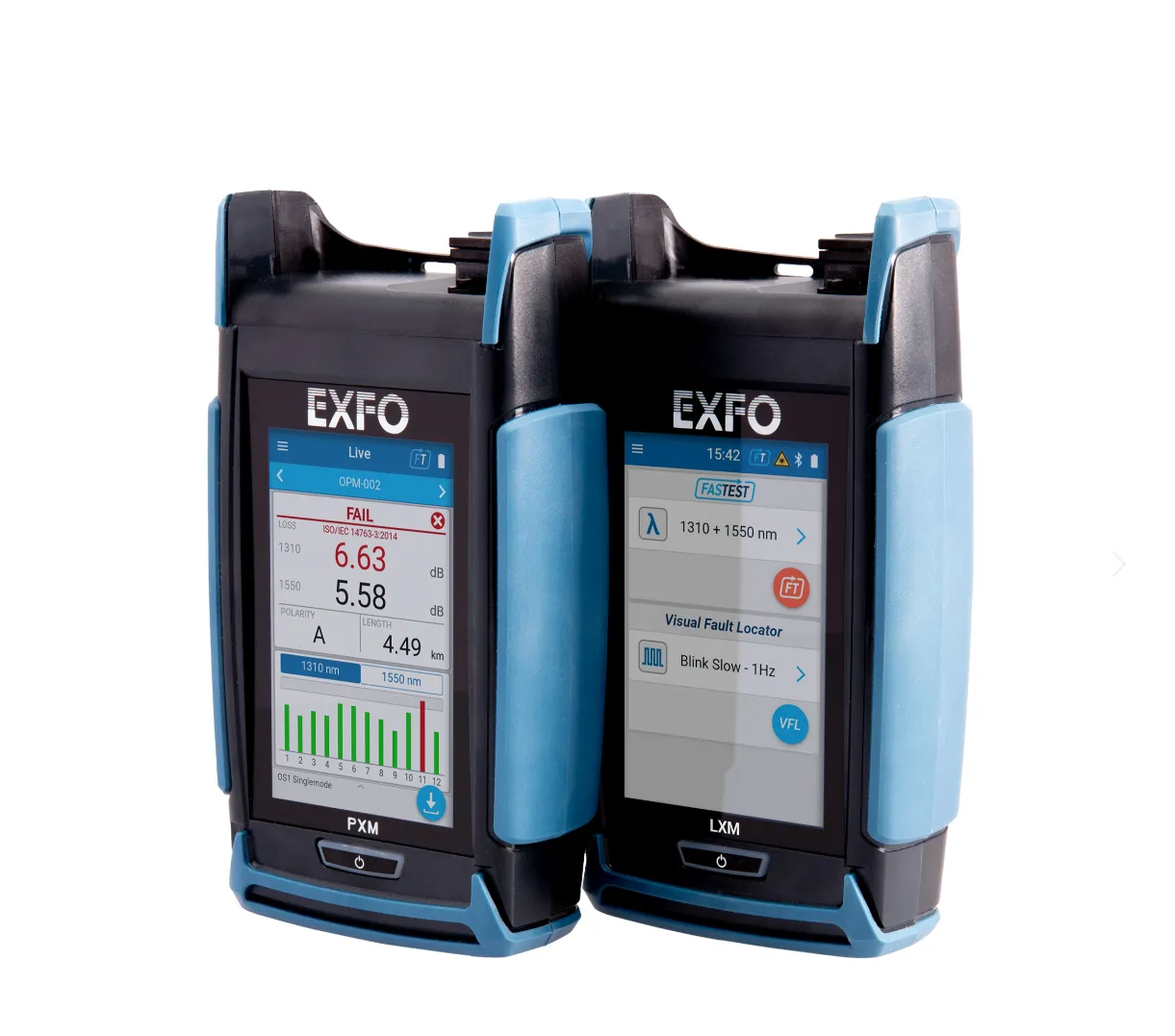

EXFO TK-XM-Q MPO Fiber Optic Tester
Request a quote
EXFO TK-XM-Q is an MPO fiber optic tester combining power meter and light source, testing MPO-12 links at dual wavelengths in just 1 second—the fastest in the industry.
Product details
| Model | TK-XM-Q |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The EXFO TK-XM-Q is a fiber optic testing solution combining a power meter (PXM) and light source (LXM) for MPO-12 link certification. Designed for single and multimode fiber networks, it delivers rapid pass/fail testing with detailed fiber-by-fiber analysis, polarity detection, and comprehensive measurement storage.
Key Features
- MPO-12 testing at dual wavelengths in just 1 second (fastest in the industry)
- Comprehensive fiber-by-fiber loss and polarity analysis
- Insertion loss per channel with global pass/fail status and per-fiber results
- Polarity type detection (A, B, C, or U) with graphical representation
- Pass/fail verification against expected polarity type
- Length measurement up to 25 km (singlemode) or 1 km (multimode)
- Storage capacity for 10,000 measurements at two wavelengths
- Optional tone detection at 270 Hz, 330 Hz, 1 kHz, and 2 kHz
- Rapid warm-up time with instant measurement capability
Specifications
| LXM Light Source Specifications | LXM-SM1 (singlemode)LXM-MM1 (multimode) |
