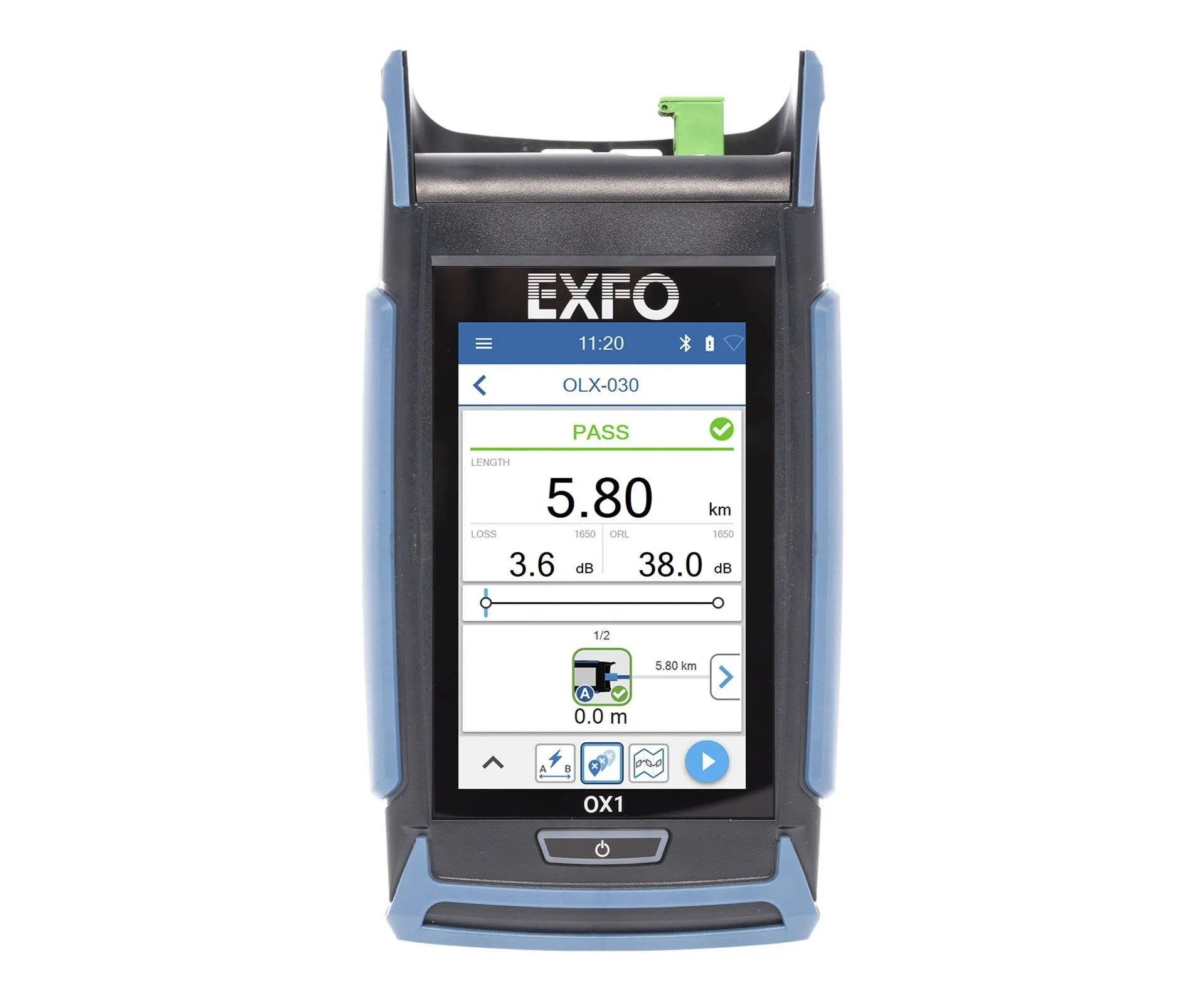

EXFO OX1-PRO-MI-88 Optical Explorer
Request a quote
EXFO OX1-PRO-MI-88 Optical Explorer is the industry's first optical fiber multimeter for link verification, providing loss, return loss, length, and power measurements in seconds.
Product details
| Model | OX1-PRO-MI-88 |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The EXFO Optical Explorer OX1-PRO-MI-88 is the industry's first optical fiber multimeter, designed for frontline fiber optic technicians. It verifies optical links in seconds and automatically identifies and locates faults in fiber optic installations. The unit measures key parameters including insertion loss (dB), optical return loss (ORL), fiber length, and optical power (dBm) in a single handheld device.
Key Features
- Displays fiber length, loss, and optical return loss in under 3 seconds
- Built-in light source and power checker combined in one instrument
- Patent pending EXFO Advisor 5-star rating scale for qualitative link assessment
- Automatic detection and location of common fiber link failures
- Click-out optical connectors for field maintenance and connector swap
- Self-diagnosis capability for field troubleshooting
- 4-inch touch screen display
- Rechargeable battery with >10 hours typical use on single charge
- WiFi 802.11 b/g/n and Bluetooth 4.2 connectivity
- Stores up to 1000 test results
- Intuitive design requiring minimal training
- Link Mapper locates all faults by relative position
- Field replaceable battery extends service life
Applications
- Single-mode fiber links up to 40 km (point-to-point)
- FTTx fiber-to-the-x last mile installation and testing
- FTTx service activation and repair, including in-service testing
- Last mile and access network installation and repair
- Fiber health monitoring and condition assessment
- Power level testing and optical power measurement
Specifications
| Cut hidden costs to reduce total cost of ownership (TCO) | Hidden costs throughout a product’s life make up a massive, yet sometimes overlooked, part of TCO. And it includes more than just the initial purchase price. Optical Explorer’s lifetime calibration, patent-pending click-out optical connector and field replaceable battery empower field techs to do more directly from the field, cutting costly downtime and logistics associated with factory-based updates, maintenance and repairs. |
| Meet Optical Explorer | Keeping up with the accelerated pace of fiber deployment plus meeting 5G deployment challenges mean that frontline technicians need a fundamental shift in their testing approach—enter Optical Explorer. |
| Features | Parameters |
| Display | 4-inch touch screen |
| Size (H x W x D) | 171 mm x 93 mm x 48 mm (6 3/4 in x 3 11/16 in x 1 7/8 in) |
| Weight | 0.5 kg (1.1 lb) |
| Battery Autonomy | >10 hours (typical use |
| Battery Charging | < 5-hour charge time when unit is off USB Type-C charging port connector AC/DC charger/adapter input: 100 – 240 V; 50/60 Hz; 1.0 A max, output: 5 V; 2 A |
| Interfaces | WiFi 802.11 b/g/n 2.4 GHz, up to WPA2 encryption Bluetooth 4.2 with BLE, Class 2 (compatible with 4.0 smartphones) |
| Storage capacity | 1000 test results |
| Reporting | Single test: PDF on TestFlow mobile app Batch of tests: online (TestFlow account required) |
| Relative Humidity Range | ≤ 93 %, non-condensing |
| Drop Resistance | 1 m (39 in) |
| Display Mirroring | From VNC client |
| PRO-MI | Installation and Maintenance – 1310/1550/1650 nm (live) PRO version |
| 88 | SC/APC |
