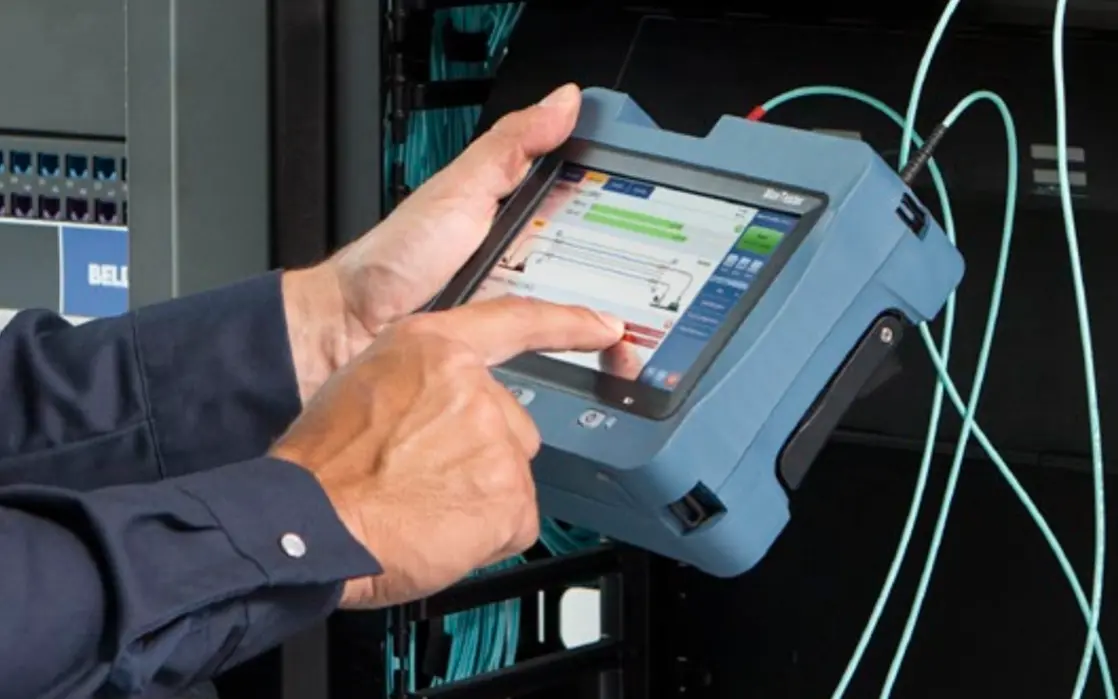

EXFO MAX-945-SM4-XX Fiber Certifier

Overview

The EXFO MAX-945-SM4 Fiber Certifier is an optical loss test set (OLTS) configured for singlemode fiber networks at 1310, 1490, and 1550 nm wavelengths, supporting bandwidth-optimized applications. Both main and remote units provide full independent testing capability with step-by-step guided procedures. The 7-inch high-resolution touchscreen displays results and diagnostics on both units, allowing technicians to certify multi-wavelength fiber installations with accuracy across diverse network deployments.

Key Features

• FasTesT™ performance: 100% automated bidirectional testing at 1310/1490/1550 nm wavelengths in under 5 seconds
• Insertion Loss (IL) and Optical Return Loss (ORL) measurement at all three wavelengths
• Fully automated fiber inspection with one-step pass/fail analysis at both fiber ends
• Step-by-step reference assistant prevents test cord reference mistakes and negative loss
• Improved short fiber measurement with enhanced optical precision
• 7-inch high-resolution touchscreen with integrated Wi-Fi and Bluetooth connectivity
• Best-in-class singlemode distance range of 200 km
• 12 hours battery autonomy for full-day fieldwork
• Internal memory for over 200,000 test files
• Professional PDF reporting and EXFO Connect cloud-based asset management

Applications

• Installation acceptance testing of singlemode fiber optic cabling systems
• Network certification against TIA-568, IEEE, and Fibre Channel standards
• Multi-wavelength fiber network deployment and verification
• Bandwidth-optimized system troubleshooting and field diagnostics
• Maintenance testing and ongoing network quality assurance
