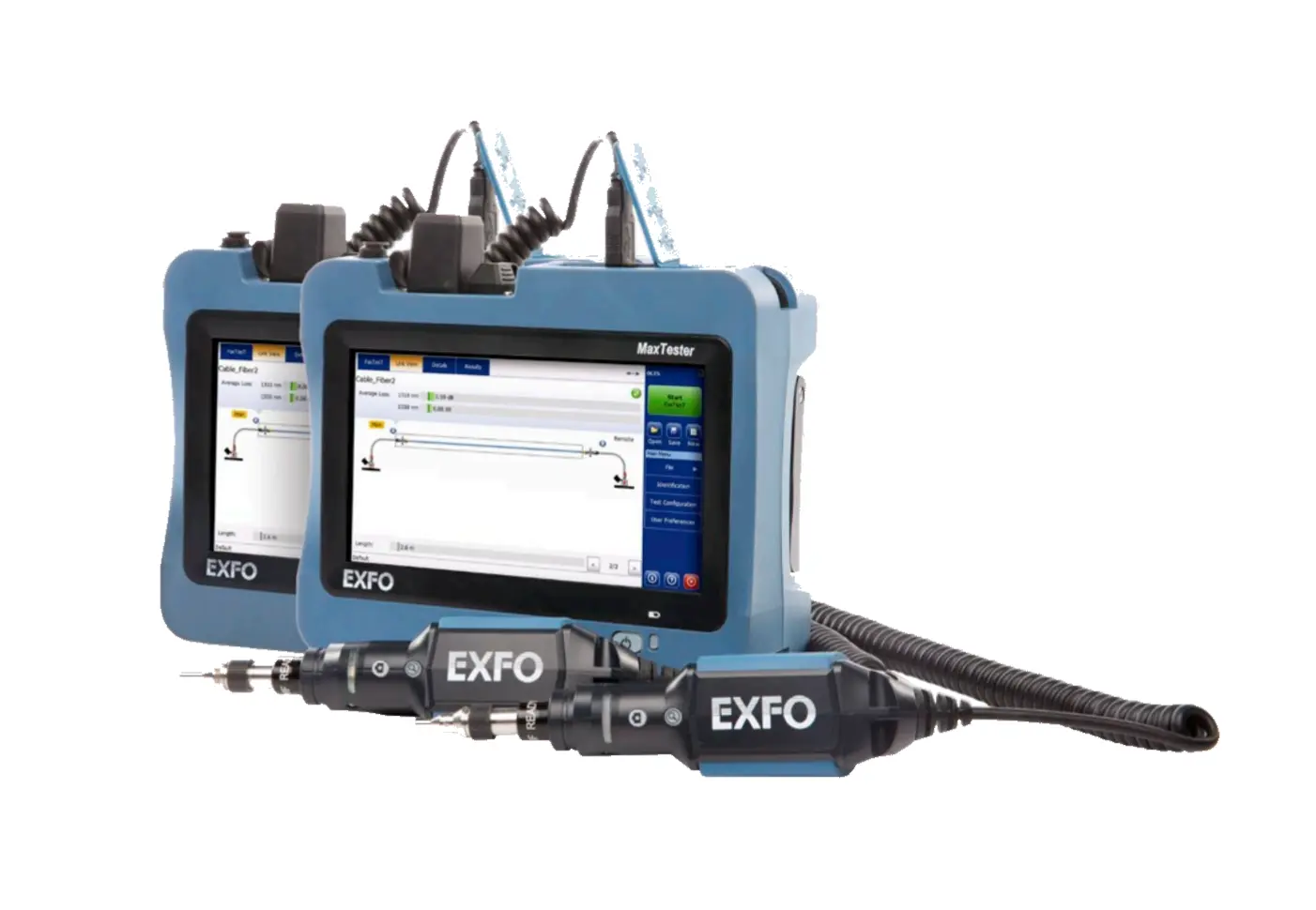

EXFO MAX-945-KIT Fiber Certifier

Overview

The EXFO MAX-945 Fiber Certifier is an optical loss test set (OLTS) designed for field technicians certifying fiber optic cable installations and network links. Both main and remote units are fully equipped for independent testing, with FasTesT results and diagnostics displayed on both 7-inch high-resolution touchscreens. The certifier guides technicians through step-by-step referencing and testing procedures, reducing common field errors and ensuring repeatable, accurate results.

Key Features

• FasTesT™ performance: 100% automated bidirectional testing at two wavelengths in under 5 seconds
• Fully automated fiber inspection with one-step pass/fail analysis at both fiber ends
• Step-by-step reference assistant eliminates test cord reference mistakes and negative loss
• Improved short fiber measurement with enhanced optical precision
• 7-inch high-resolution touchscreen with integrated Wi-Fi and Bluetooth connectivity
• Best-in-class singlemode distance range of 200 km
• 12 hours battery autonomy for full-day fieldwork
• Internal memory for over 200,000 test files
• Professional PDF reporting and EXFO Connect cloud-based asset management
• Built-in Encircled-Flux (EF) compliant multimode light source

Applications

• Installation acceptance testing of fiber optic cabling systems
• Network certification against TIA-568, IEEE, and Fibre Channel standards
• Field troubleshooting and diagnostics of fiber links
• FTTH (Fiber-to-the-Home) network deployment and verification
• Maintenance testing and network quality assurance
