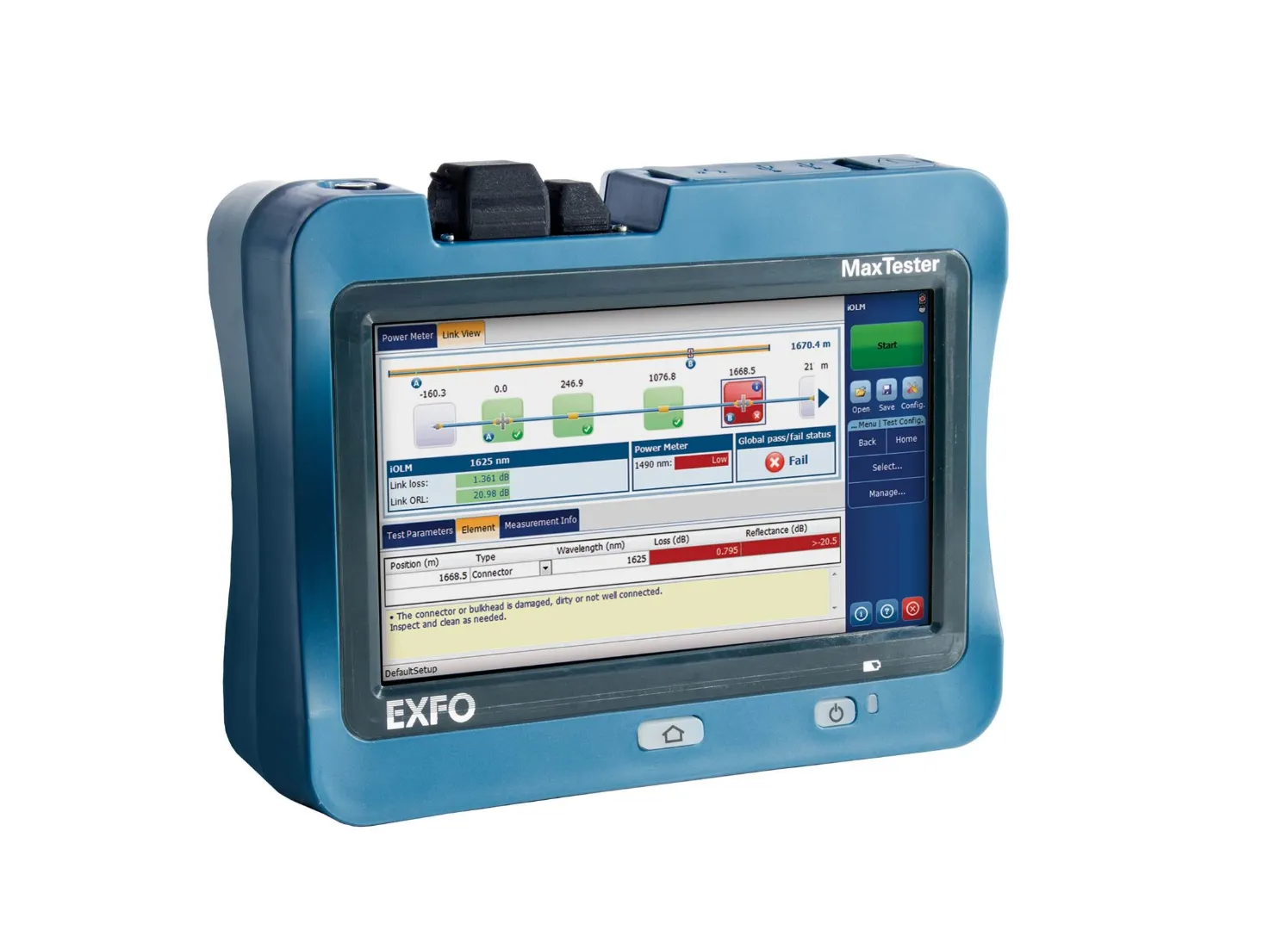

EXFO MAX-730D-SM1-XX OTDR
Request a quote
OTDR for FTTH testing with 39 dB dynamic range, 7-inch touchscreen, 12-hour battery. Rugged portable design with swap-out connector for reliable fiber characterization.
Product details
| Model | MAX-730D-SM1-XX |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The EXFO MAX-730D is an entry-level, dedicated Optical Time Domain Reflectometer (OTDR) with tablet-inspired design and outdoor-enhanced touchscreen. Optimized for metro and FTTH networks, it provides a complete solution for fiber testing, characterization, and troubleshooting from office to field.
Key Features
- Rugged, lightweight tablet-inspired design built for outside plant environments
- 7-inch outdoor-enhanced touchscreen with 12-hour battery operation
- Dynamic range up to 39 dB for point-to-point distances up to 132 km
- Short dead zones: Event (EDZ) 0.5 m, Attenuation (ADZ) 2.2 m, PON 30 m
- FTTx in-service testing at 1650 nm with optional GPON/XGS-PON power meter
- Swap-out connector for easy field maintenance without service downtime
- Onboard diagnostic tool to check optical connector health and determine replacement timing
- iOLM-ready for automated testing with clear go/no-go visual results
- Industry-leading onboard PDF reporting and post-processing included
Applications
- FTTH network deployment and commissioning
- Fiber optic cable troubleshooting and fault location
- Optical splitter and PON testing
- Metro network characterization
- In-service fiber testing and maintenance
Specifications
| Dynamic Range | 39 dB |
| Maximum Distance (P2P) | 132 km |
| Event Dead Zone (EDZ) | 0.5 m |
| Attenuation Dead Zone (ADZ) | 2.2 m |
| PON Dead Zone | 30 m |
| Display | 7-inch touchscreen (outdoor-enhanced) |
| Battery Operation | 12 hours |
| FTTx Wavelength | 1650 nm |
