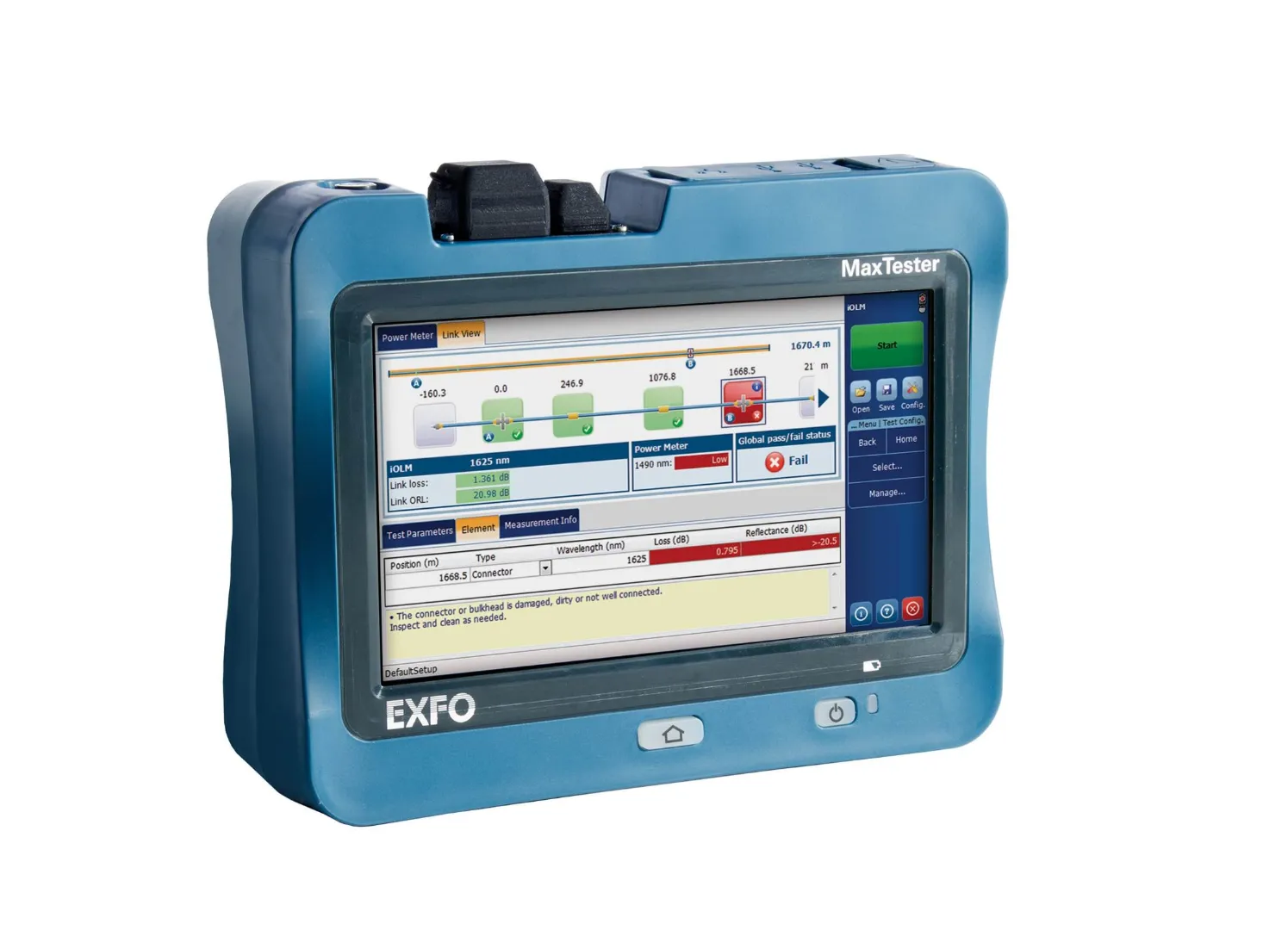

EXFO MAX-730C-SM3 OTDR
EXFO MaxTester 730C-SM3 offers handheld OTDR with 7-inch outdoor touchscreen and 1310/1550/1625 nm wavelengths for FTTH/PON testing.
Product details
| Model | MAX-730C-SM3-XX |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The MaxTester 730C is an entry-level, fully featured OTDR designed for FTTH/PON network testing and end-to-end characterization. This handheld OTDR features a tablet-inspired design with a 7-inch outdoor-enhanced touchscreen display and is optimized for testing through optical splitters, making it ideal for metro and FTTH fiber troubleshooting.
Part of EXFO's MaxTester 700B/C Series, the 730C combines genuine high-performance OTDR quality with advanced features including the intelligent Optical Link Mapper (iOLM) application, which simplifies complex trace analysis. With 12-hour battery autonomy, rugged outside plant construction, and optional hardware modules, this instrument is built for demanding field environments.
Key Features
- Tablet-inspired design with 7-inch outdoor-enhanced touchscreen
- 12-hour battery autonomy
- Low dead zones: EDZ 0.6 m, ADZ 2.5 m
- High dynamic range: 39/38/39 dB
- Rugged construction for outside plant environments
- Intelligent Optical Link Mapper (iOLM) for simplified trace analysis
- Windows-like GUI with icon-based functions and automatic macrobend detection
- Dual USB 2.0 ports and RJ45 LAN 10/100 Mbit/s connectivity
- 2 GB internal memory for up to 20,000 OTDR traces
Applications
- FTTH/PON network deployment and characterization
- Live fiber troubleshooting and fault location
- Metro range optical fiber testing
- Optical splice and connection point analysis
- Network commissioning and acceptance testing
Specifications
| Form Factor | Handheld |
| Form Factor | Modular |
Request a quote
