EXFO MAX-720D-Q2 Quad OTDR
Request a quote
EXFO MAX-720D-Q2 is a quad OTDR offering 36 dB singlemode and 29 dB multimode dynamic range, 1650 nm out-of-band testing, and iOLM intelligent trace analysis for field operations.
Product details
| Model | MAX-720D-Q2-QUAD-XX |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview

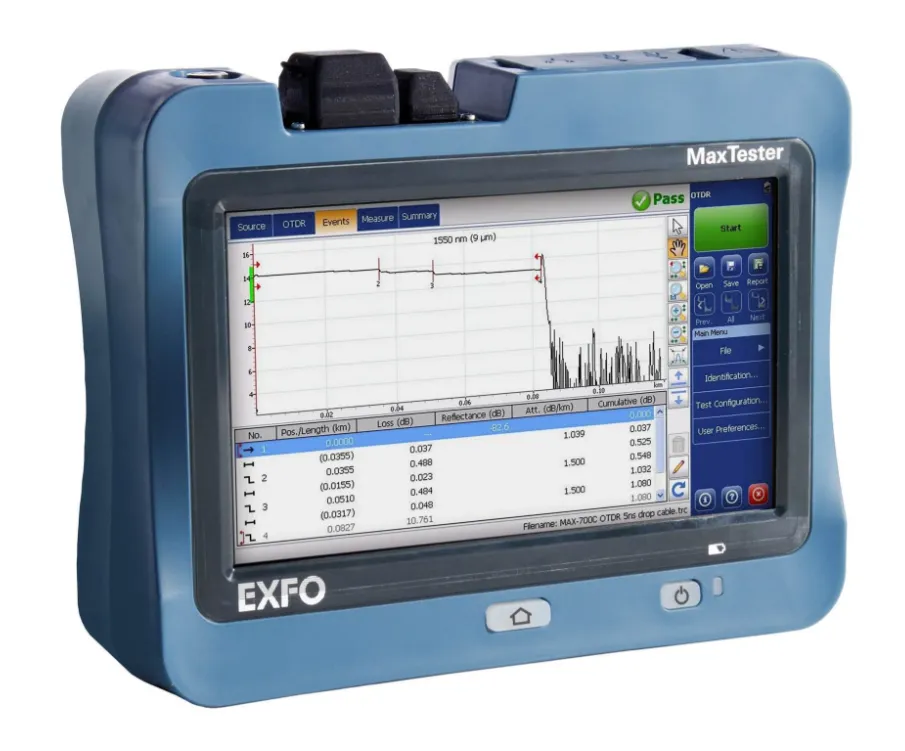

The EXFO MaxTester 720D is a high-performance Optical Time Domain Reflectometer (OTDR) from the proven 700D Series. Designed for comprehensive fiber testing, it combines singlemode and multimode OTDR capabilities in a quad configuration with a 7-inch outdoor-enhanced touchscreen and tablet-inspired design. Built for access networks, data centers, and enterprise deployments, the MaxTester 720D delivers industry-leading performance with 12-hour battery endurance and intelligent trace analysis.
Key Features
- Quad OTDR configuration supporting both singlemode and multimode fiber testing
- Dynamic range of 36 dB singlemode and 29 dB multimode for precise event detection
- 1650 nm out-of-band live testing for troubleshooting active networks without service impact
- 7-inch outdoor-enhanced touchscreen with intuitive Windows-like interface
- iOLM (Optical Link Mapper) intelligent OTDR application for automated trace analysis
- 12-hour rechargeable lithium-polymer battery with fast charging capability
- Instant boot-up and automatic macrobend finder functionality
- Plug-and-play compatibility with VFL, power meter, and USB tools
- Handheld, lightweight, rugged design for outside plant environments
Applications
- Point-to-point fiber network testing and installation verification
- Access network testing supporting 1×32 splitter configurations
- Data center fiber infrastructure commissioning and maintenance
- Active network troubleshooting without service disruption
- Enterprise and private network deployment and validation
Specifications
| Product Type | Quad OTDR |
| Singlemode Dynamic Range | 36 dB |
| Multimode Dynamic Range | 29 dB |
| Out-of-Band Live Testing | 1650 nm |
| Display | 7-inch outdoor-enhanced touchscreen |
| Battery Type | Rechargeable lithium-polymer |
| Battery Life | 12 hours |
| iOLM Support | Yes |
