EXFO MAX-720C-SM2 Singlemode OTDR
Request a quote
EXFO MAX-720C-SM2 is a singlemode OTDR with 1310/1550/1625 nm wavelengths, 36 dB dynamic range, and out-of-band live testing at 1625 nm for active network diagnostics.
Product details
| Model | MAX-720C-SM2-XX |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview

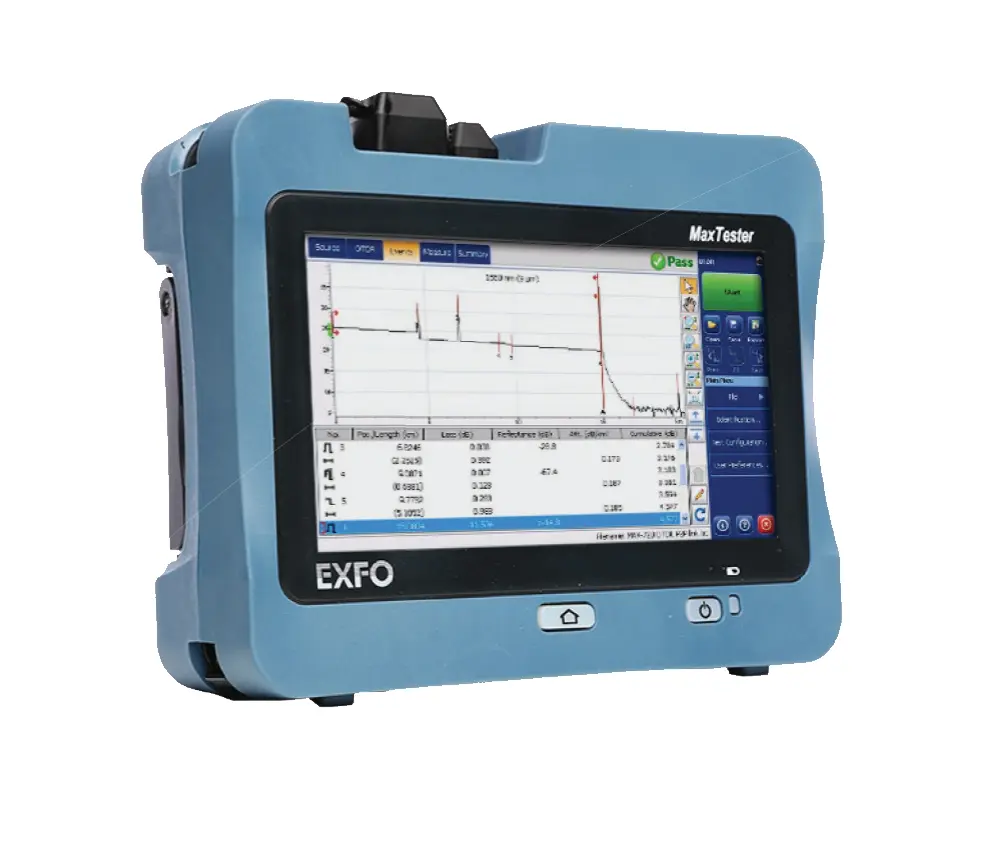

The EXFO MaxTester 720C is a fully featured Optical Time Domain Reflectometer (OTDR) designed for singlemode and multimode fiber testing in access networks, data centers, and enterprise environments. With its tablet-inspired design, 7-inch outdoor-enhanced touchscreen, and rugged construction, it combines portability with comprehensive testing capabilities for field technicians.
Key Features
- 7-inch outdoor-enhanced touchscreen display (800 x 480 TFT) — largest in the handheld industry
- Dynamic range of up to 36 dB in singlemode and 29 dB in multimode for precise event detection
- Short dead zones and effective dynamic range for first-time-right fiber characterization
- Operating wavelengths: 1310 nm, 1550 nm, and 1625 nm (live testing) for comprehensive singlemode testing
- 12-hour rechargeable lithium-polymer battery life
- Integrated power meter and visual fault locator
- iOLM-ready with intelligent OTDR trace analysis automation
- Out-of-band live testing at 1625 nm for active network troubleshooting without service impact
- Wi-Fi connectivity for data transfer and remote operations
- Rugged design built for outside plant deployments
Applications
- Fiber access network testing and commissioning
- Active network troubleshooting without impacting other clients using 1625 nm out-of-band testing
- Data center fiber infrastructure validation
- Private and enterprise network deployment
- FTTA (Fiber-To-The-Antenna) and fronthaul network testing
Specifications
| Form Factor | Handheld |
| Form Factor | Modular |
