EXFO FVA-600-B-XX Variable Attenuator
Request a quote
EXFO FVA-600-B-XX variable attenuator with multiple connector options offers 65 dB maximum attenuation, 0.01 dB resolution, and three operating modes for fiber optic testing.
Product details
| Model | FVA-600-B-XX |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview

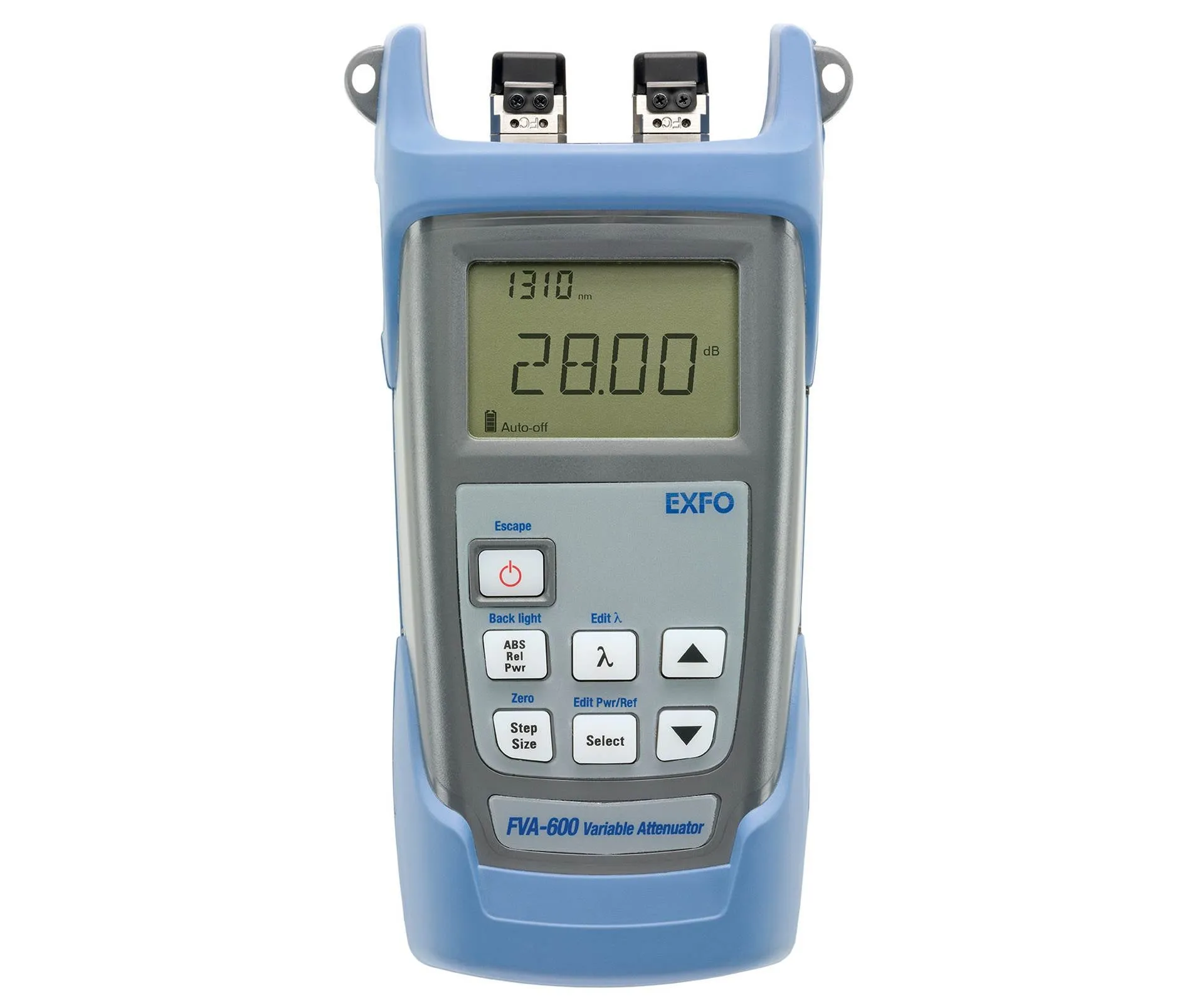

The EXFO FVA-600-B-XX is a compact and rugged handheld optical variable attenuator available in multiple fiber optic connector configurations, engineered for flexible field use. It delivers the highest performance among portable optical attenuators, supporting multiple operating modes and a wide range of wavelengths from 1250 to 1625 nm. With excellent optical performance and straightforward operation, it is ideal for fiber optic installation, maintenance, and testing.
Key Features
- Most compact and rugged design among portable optical attenuators
- Three operating modes: Absolute, Relative, and Power
- Backlit display optimized for low-light environments
- USB-based remote control for easy integration into test routines
- Rechargeable Li-ion battery with >300 hours of runtime
- Three-year warranty and recommended calibration interval
Applications
- CATV and telecommunications network testing and maintenance
- BER (Bit Error Rate) testing with high optical resolution
- FTTx deployment and field verification
- Fiber optic network installation and troubleshooting
Specifications
| Features | Parameters |
| Fiber type (μm) | 9/125 |
| Calibration wavelengths (nm) | 1310/1550 |
| Wavelength range (nm) | 1250 to 1625 |
| Wavelength increment (nm) | 1 |
| Maximum attenuation (dB) | 65 |
| Resolution (dB) | 0.01 |
| Warranty and recommended calibration interval (years) | 3 |
| Size (H x W x D) | 190mm x 100mm x 62mm (7 ½ in x 4 in x 2 ½ in) |
| Weight | 0.6 kg (1.3 lb) |
| Relative Humidity | 0 % to 95 % non-condensing |
| Power | AC adapter and rechargeable Li-ion battery |
| Model / Part Number | Description |
