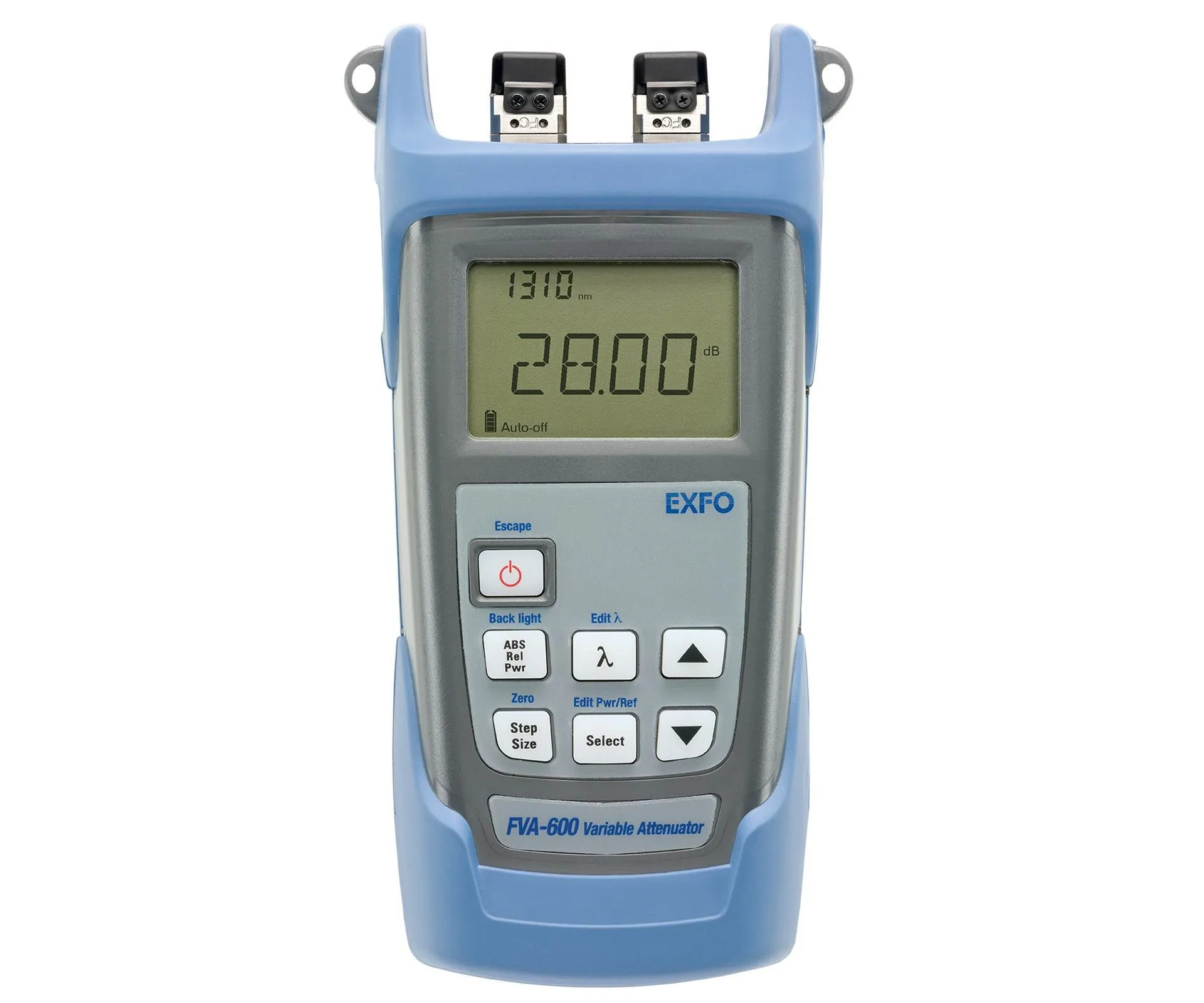

EXFO FVA-600 Variable Attenuator
Request a quote
EXFO FVA-600 is a compact, rugged handheld optical variable attenuator with 65 dB maximum attenuation, 0.01 dB resolution, and three operating modes for fiber optic testing.
Product details
| Model | FVA-600 |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The EXFO FVA-600 is a compact and rugged handheld optical variable attenuator engineered for flexible field use. It delivers the highest performance among portable optical attenuators, supporting multiple operating modes and a wide range of wavelengths from 1250 to 1625 nm. With excellent optical performance and straightforward operation, it is ideal for fiber optic installation, maintenance, and testing.
Key Features
- Most compact and rugged design among portable optical attenuators
- Three operating modes: Absolute, Relative, and Power
- Backlit display optimized for low-light environments
- USB-based remote control for easy integration into test routines
- Rechargeable Li-ion battery with >300 hours of runtime
- Three-year warranty and recommended calibration interval
Applications
- CATV and telecommunications network testing and maintenance
- BER (Bit Error Rate) testing with high optical resolution
- FTTx deployment and field verification
- Fiber optic network installation and troubleshooting
Specifications
| Features | Parameters |
| Fiber type (μm) | 9/125 |
| Calibration wavelengths (nm) | 1310/1550 |
| Wavelength range (nm) | 1250 to 1625 |
| Wavelength increment (nm) | 1 |
| Maximum attenuation (dB) | 65 |
| Resolution (dB) | 0.01 |
| Warranty and recommended calibration interval (years) | 3 |
| Size (H x W x D) | 190mm x 100mm x 62mm (7 ½ in x 4 in x 2 ½ in) |
| Weight | 0.6 kg (1.3 lb) |
| Relative Humidity | 0 % to 95 % non-condensing |
| Power | AC adapter and rechargeable Li-ion battery |
