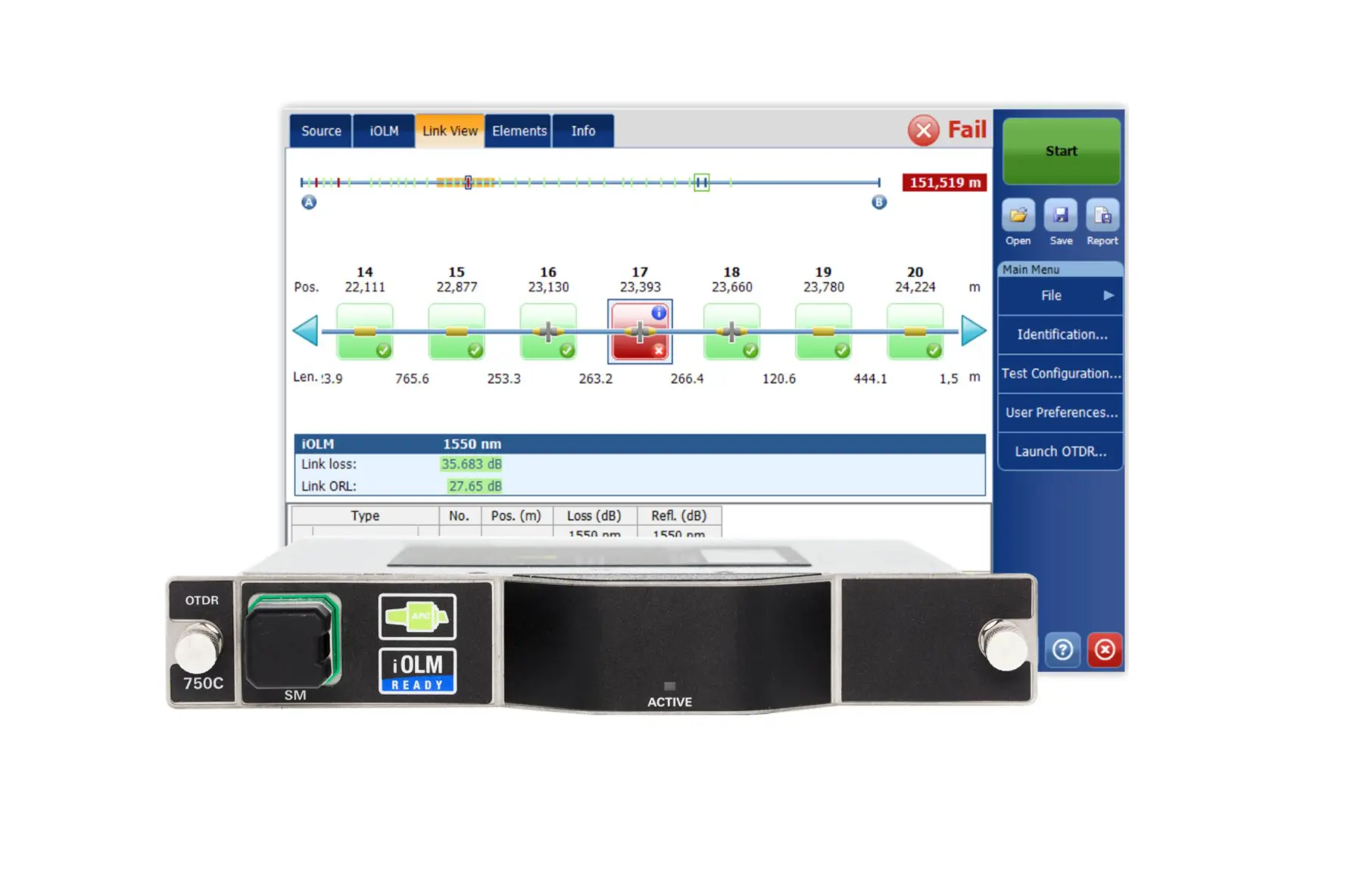

EXFO FTBx-750C-SM3 Metro/Long-Haul OTDR
Request a quote
EXFO FTBx-750C-SM3 is a metro/long-haul OTDR with 46 dB dynamic range, 0.5 m event dead zone, and up to 256,000 sampling points for accurate fiber characterization.
Product details
| Model | FTBx-750C-SM3 |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The EXFO FTBx-750C-SM3 is a metro and long-haul OTDR (Optical Time-Domain Reflectometer) designed for highly accurate fiber optic cable characterization. It combines high dynamic range with superior resolution to enable efficient network testing and troubleshooting in both metropolitan and long-distance network deployments.
Key Features
- Dynamic range up to 46 dB for extended measurement distances
- Event dead zone of 0.5 m for precise fault detection
- Attenuation dead zone of 2.5 m (3.5 m typical at 1310 nm with low reflectance)
- Up to 256,000 sampling points for high-resolution fiber characterization
- Wavelengths: 1310 nm, 1550 nm, and 1625 nm (SM3 model)
- EXFO Connect-compatible for automated asset management and cloud-based data storage
Applications
- Metro network testing and validation
- Long-haul network testing and maintenance
- Fiber optic cable installation verification
- Cable fault location and characterization
Specifications
| Dynamic Range (range) | Very Long Range: 42dB - 46dB |
| Wavelength | 1310/1550/1625nm |
| Form Factor | Handheld |
| Form Factor | Modular |
