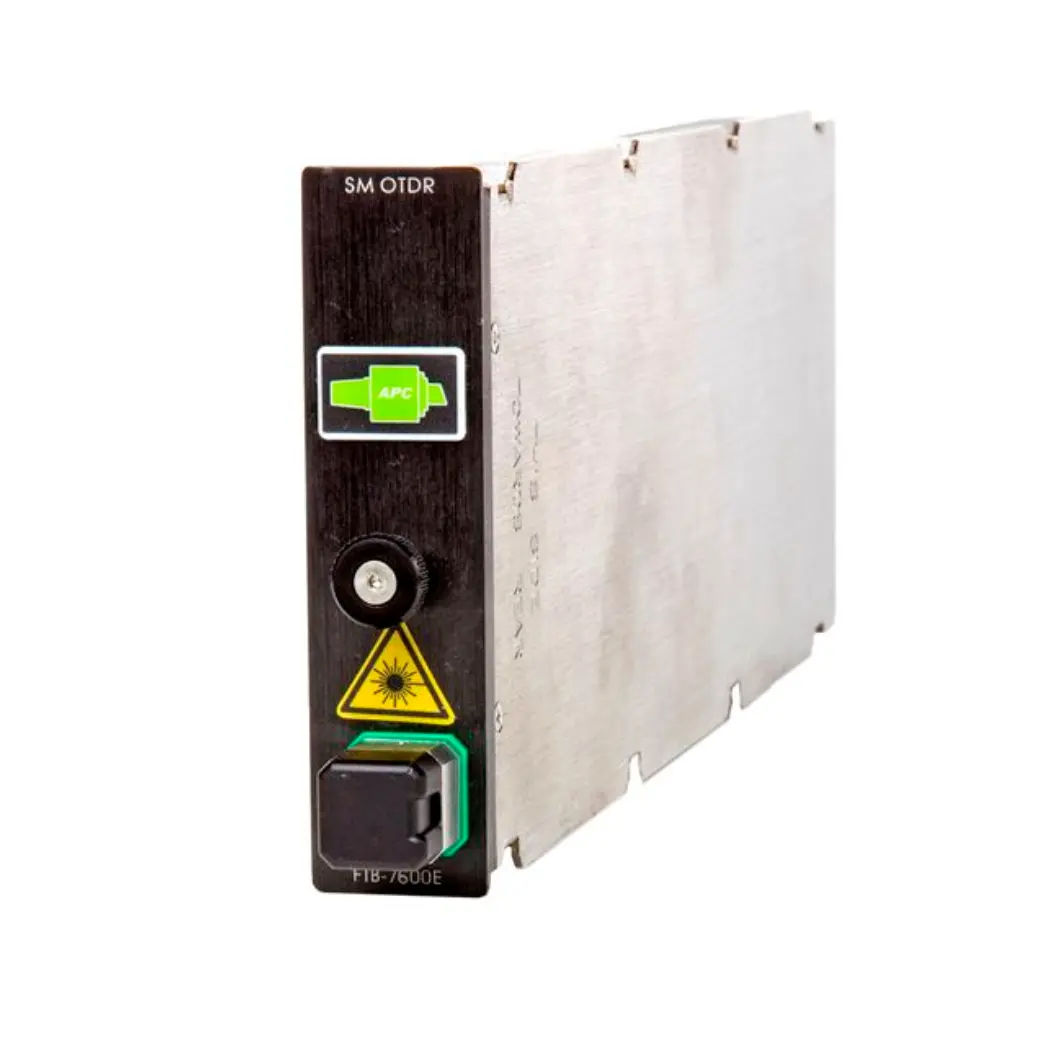

EXFO FTB-7600E-0034B Ultra-Long-Haul OTDR
EXFO FTB-7600E-0034B is an ultra-long-haul OTDR with 50.5 dB dynamic range for submarine cable and fiber testing over distances exceeding 200 km with ±0.03 dB/dB linearity.
Product details
| Model | FTB-7600E-0034B-XX |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The EXFO FTB-7600E-0034B is an ultra-long-haul optical time-domain reflectometer (OTDR) designed for high-end fiber characterization and submarine cable testing. With a dynamic range of up to 50.5 dB, it accurately characterizes fiber over distances exceeding 200 km with industry-leading linearity of ±0.03 dB/dB, enabling precise fault location on ultra-long links without compromising on resolution.
The module is offered in dual wavelength configuration (1550/1625 nm) for singlemode fiber (9/125 µm), making it ideal for companies deploying and maintaining ultra-long-haul networks and submarine cable systems.
Key Features
- Dynamic range up to 50.5 dB for ultra-long-distance testing
- Industry-leading linearity of ±0.03 dB/dB for accurate fault location
- Dual wavelength configuration at 1550/1625 nm
- Up to 256,000 sampling points for detailed fiber characterization
- EXFO Connect-compatible for automated asset management and cloud-based data storage
- APC connectors for optimized performance and reduced reflectance
Applications
- Ultra-long-haul network deployment and maintenance
- Submarine cable testing and characterization
- Long-distance fiber link fault location
- High-precision fiber performance verification
Specifications
| Dynamic Range (range) | Ultra Long Range: >46dB |
| Form Factor | Handheld |
| Form Factor | Modular |
