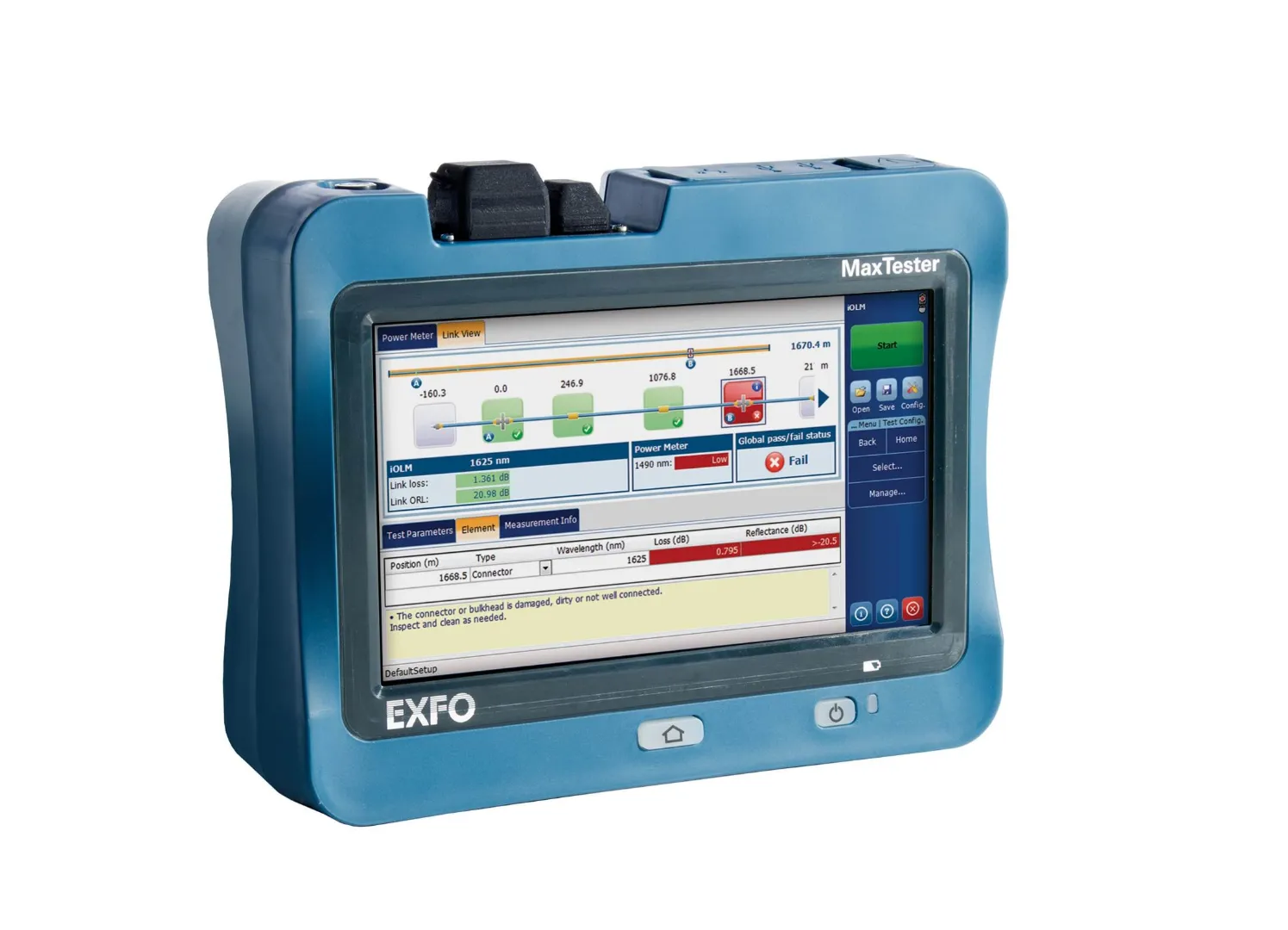

EXFO FTB-730C-SM8-XX PON OTDR
Request a quote
EXFO FTB-730C-SM8 is a field technician OTDR for PON and FTTx networks, offering singlemode testing at 1310/1550 nm plus 1650 nm live port with dynamic range up to 39 dB.
Product details
| Model | FTB-730C-SM8-XX |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The EXFO FTB-730C-SM8-XX is a portable OTDR for field technicians designed for passive optical network (PON) and fiber-to-the-home (FTTx) applications. It features singlemode OTDR testing at 1310 and 1550 nm combined with a live testing port at 1650 nm, enabling parallel troubleshooting with dynamic range up to 39 dB and support for high-port-count splitters.
Key Features
- OTDR testing at 1310 nm and 1550 nm
- Live testing port at 1650 nm for parallel monitoring
- Dynamic range up to 39 dB
- Support for high-port-count splitters (up to 1x128)
- Integrated 1490/1550 nm power meter
- EXFO Connect-compatible for automated asset management
- iOLM-ready for one-touch acquisitions with visual results
Applications
- FTTx/MDU testing within PON networks
- Point-to-point access network testing
- Splitter evaluation in PON systems
- Short metro and metropolitan network testing
- Passive Optical LAN (POL) applications
Specifications
| Form Factor | Handheld |
| Form Factor | Modular |
