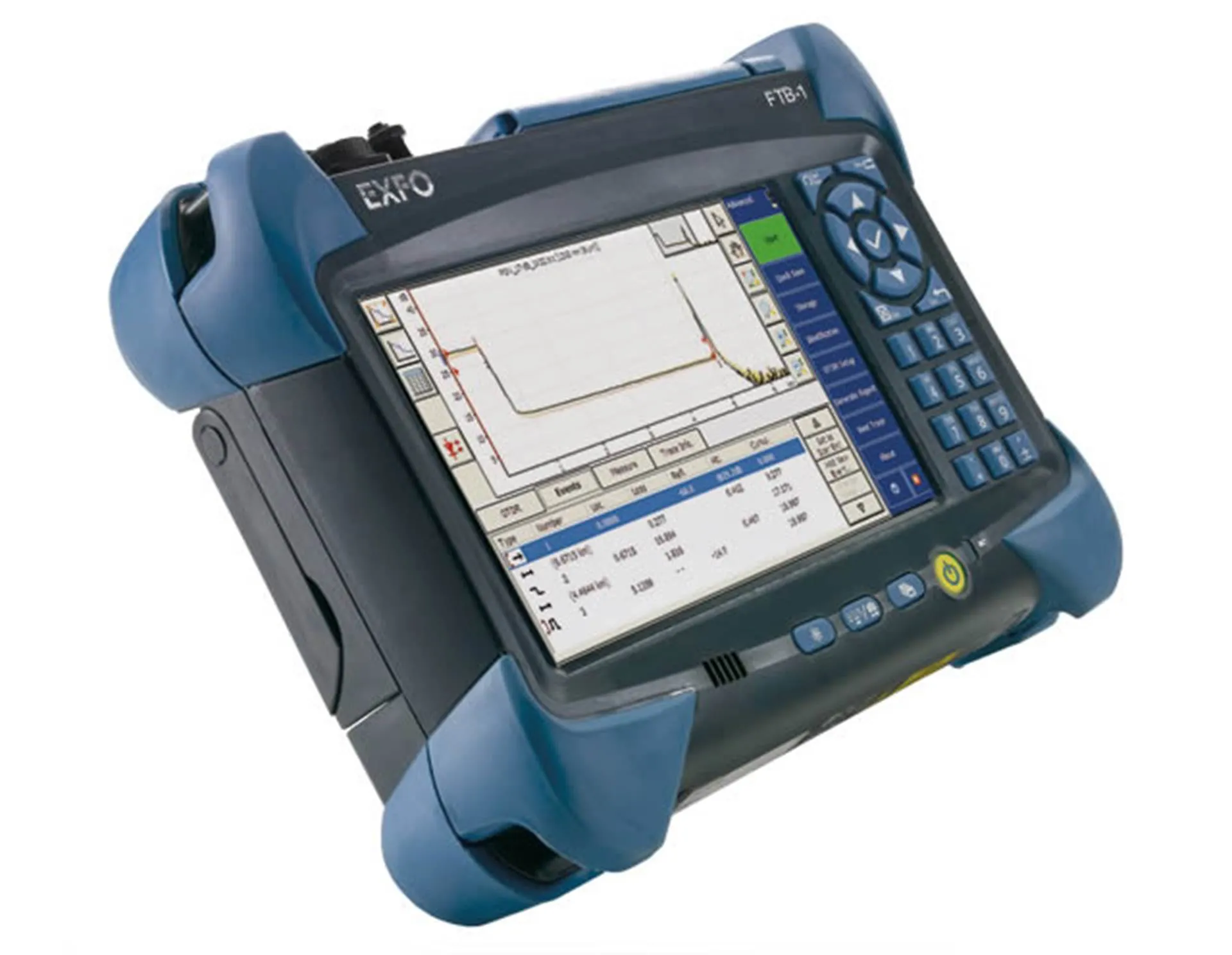

EXFO FTB-730-023B Singlemode PON OTDR
Request a quote
EXFO FTB-730-023B is a singlemode PON OTDR for FTTx and MDU networks, testing through 1x128 splitters, with 39 dB dynamic range, 0.8 m event dead zone, and iOLM automation.
Product details
| Model | FTB-730-023B |
| Manufacturer | EXFO |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The EXFO FTB-730-023B is a singlemode PON OTDR specifically designed for field technicians working on FTTx and MDU network deployments. This module excels at characterizing high-port-count splitters in passive optical networks, enabling seamless testing and troubleshooting of complex PON architectures.
Key Features
- Singlemode OTDR at 1310/1550 nm (9/125 µm fiber)
- Dynamic range up to 39 dB
- Event dead zone of 0.8 m for precise event location
- Tests through high-port-count splitters (up to 1x128)
- Wavelengths include 1310, 1490, 1550, 1625, and 1650 nm for comprehensive testing
- Short acquisition time to accelerate deployment process
- iOLM ready with automated acquisitions and clear go/no-go result presentation
- EXFO Connect compatible for automated asset management through cloud database
- Real-time averaging mode for continuous monitoring
- Macrobend finder for automatic location and identification of fiber bends
Applications
- FTTx and MDU network testing and deployment
- Passive optical network (PON) characterization
- High-port-count splitter testing (up to 1x128)
- In-service fiber troubleshooting
- Passive Optical LAN (POL) deployment
Specifications
| Dynamic Range (range) | Long Range: 38dB - 41dB |
| Wavelength | 1310/1550nm |
| Form Factor | Handheld |
| Form Factor | Modular |
