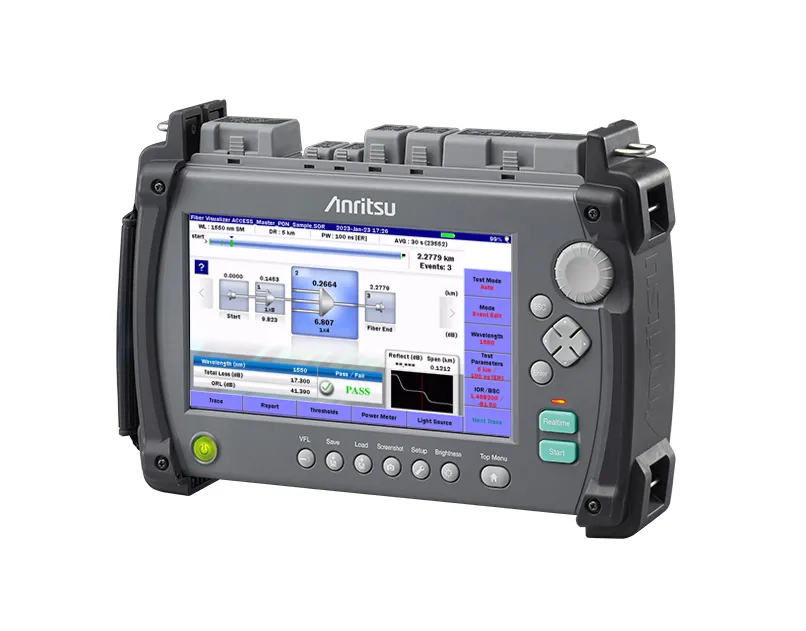

Anritsu MT9085C ACCESS Master
Request a quote
Anritsu MT9085C is a high-performance handheld OTDR with 46 dB dynamic range, 8-inch touchscreen, integrated power measurement, and Fiber Visualizer for long-haul and ultra-long-haul network testing.
Product details
| Model | MT9085C |
| Manufacturer | Anritsu |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Anritsu MT9085C ACCESS Master is a high-performance handheld optical time-domain reflectometer optimized for long-haul and ultra-long-haul fiber network testing. The high-performance variant delivers exceptional dynamic range of 46/46 dB at 1310 nm and 1550 nm, enabling accurate measurements over extended distances with minimal dead zone of 3.8/4.3 m.
Key Features
- 8-inch color LCD touchscreen with excellent visibility in direct sunlight
- 46/46 dB dynamic range at 1310/1550 nm for high-performance measurements
- 0.8 m event dead zone with maximum 46 dB dynamic range capability
- 3.8/4.3 m backscatter dead zone for long-distance accuracy
- Built-in optical power loss (LS) and optical power measurement (OPM)
- Fiber Visualizer function for intuitive fiber path analysis
- Real-time sweep modes for fast fiber bend location
- Support for up to 1 × 128 branch identification
Applications
- Long-haul and ultra-long-haul fiber network installation
- High-precision fiber loss and continuity measurement
- Extended distance fiber testing and troubleshooting
- Metro network optimization and maintenance
- Event detection in complex fiber topologies
Included Accessories
- MT9085 Operation Manual (CD)
- Quick Start Guide
- AC Adapter
- Battery Pack
- Line Cord
Specifications
| Optical Power / Loss Measurement | With a built-in light source and power and loss measurement functions, the all-in-one MT9085 series is ideal for confirming the status of optical fiber installations and fault conditions. |
| Optical Fiber End-Face Inspection | Optical fiber end-face inspection uses an external fiberscope option (sold separately) to display the condition of the optical connector ferrule end face on the screen of the MT9085 main unit. Optical fiber end-face inspection is important because not only do dirt and scratches on the ferrule face have a major impact on optical fiber circuit transmission quality, but they also prevent accurate optical pulse tests and measurement of optical loss and power. |
| Model / Order Numbers | Description |
| MT9085C | ACCESS Master High Performance Dynamic Range |
