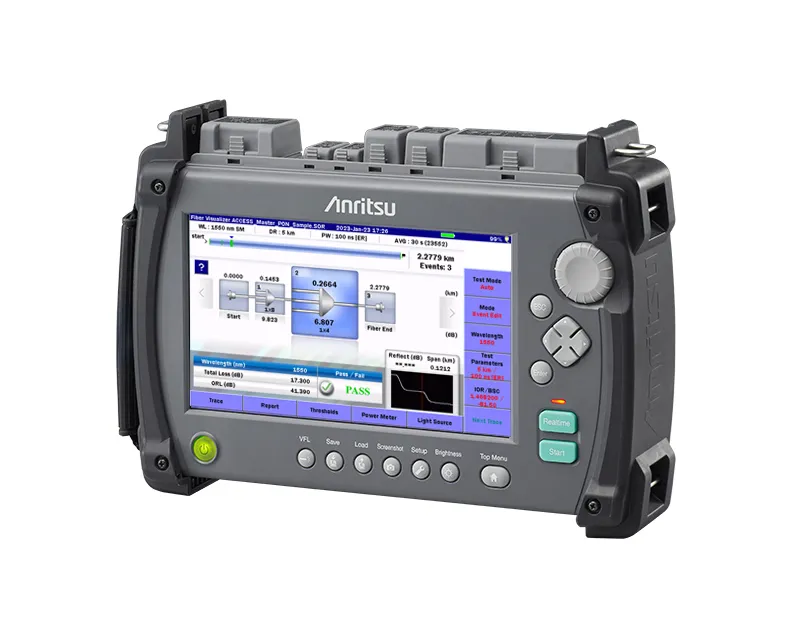

Anritsu MT9085B ACCESS Master
Request a quote
Anritsu MT9085B is a handheld OTDR with 42 dB dynamic range, 8-inch touchscreen, integrated power measurement, and Fiber Visualizer for network installation and troubleshooting.
Product details
| Model | MT9085B |
| Manufacturer | Anritsu |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Anritsu MT9085B ACCESS Master is a handheld optical time-domain reflectometer designed for installation and maintenance of fiber optic networks. The enhanced dynamic range variant provides superior performance for metro, long-haul, and PON-based FTTx applications, supporting single-mode fiber measurements at 1310 nm and 1550 nm wavelengths with 42/41 dB dynamic range respectively.
Key Features
- 8-inch color LCD touchscreen with excellent visibility in direct sunlight
- 42/41 dB dynamic range at 1310/1550 nm for enhanced performance
- High-accuracy event detection with 0.8 m dead zone and maximum 46 dB capability
- Built-in optical power loss (LS) and optical power measurement (OPM)
- Fiber Visualizer function for intuitive fiber path analysis
- Real-time sweep modes for fast fiber bend location
- Support for up to 1 × 128 branch identification
- Touchscreen, rotary knob, and dedicated hard key operation
Applications
- Metro and long-haul fiber network installation and maintenance
- PON-based FTTx deployment and troubleshooting
- Fiber break detection and loss measurement
- Event location in optical circuits
- Access network fault diagnosis
Included Accessories
- MT9085 Operation Manual (CD)
- Quick Start Guide
- AC Adapter
- Battery Pack
- Line Cord
Specifications
| Optical Power / Loss Measurement | With a built-in light source and power and loss measurement functions, the all-in-one MT9085 series is ideal for confirming the status of optical fiber installations and fault conditions. |
| Optical Fiber End-Face Inspection | Optical fiber end-face inspection uses an external fiberscope option (sold separately) to display the condition of the optical connector ferrule end face on the screen of the MT9085 main unit. Optical fiber end-face inspection is important because not only do dirt and scratches on the ferrule face have a major impact on optical fiber circuit transmission quality, but they also prevent accurate optical pulse tests and measurement of optical loss and power. |
| Model / Order Numbers | Description |
| MT9085B | ACCESS Master Enhanced Dynamic Range |
