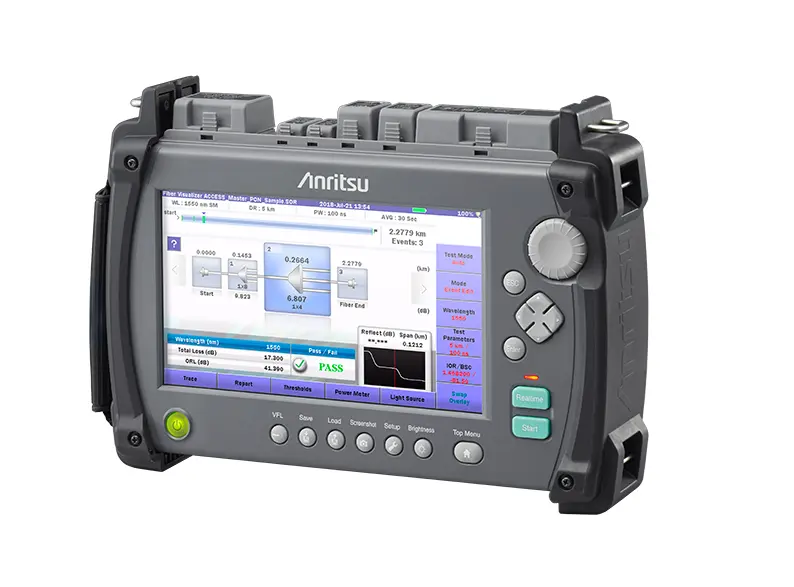

Anritsu MT9085A ACCESS Master OTDR

Overview

The Anritsu MT9085A ACCESS Master is a compact, handheld all-in-one optical testing system combining OTDR capability, optical loss and power measurements, and fiber end-face inspection. The large 8-inch color touchscreen, combined with intuitive hard keys and rotary knob control, makes complex optical diagnostics accessible in the field. The Fiber Visualizer function provides at-a-glance optical path analysis for fast troubleshooting of optical networks.

Key Features

• 8-inch LCD touchscreen with high visibility in direct sunlight
• Easy-to-use Fiber Visualizer function for optical fiber path analysis
• High-accuracy event detection with 46 dB dynamic range (maximum) and 0.8 m dead zone
• Fast real-time sweep modes for rapid fiber bend location
• Supports identification of up to 128 splitter branches
• Built-in optical power loss measurement and optical power meter
• Supports both single-mode and multimode fiber testing
• Optical fiber end-face inspection with external fiberscope option
• Familiar operations from previous ACCESS Master series

Applications

• Installation and maintenance of trunk fiber networks (core, metro, mobile fronthaul, backhaul)
• Access network troubleshooting and break location
• Drop cable diagnostics and fault detection
• PON and FTTx network commissioning and maintenance
• Live in-service circuit testing with built-in filter option
• Optical network certification and quality assurance
